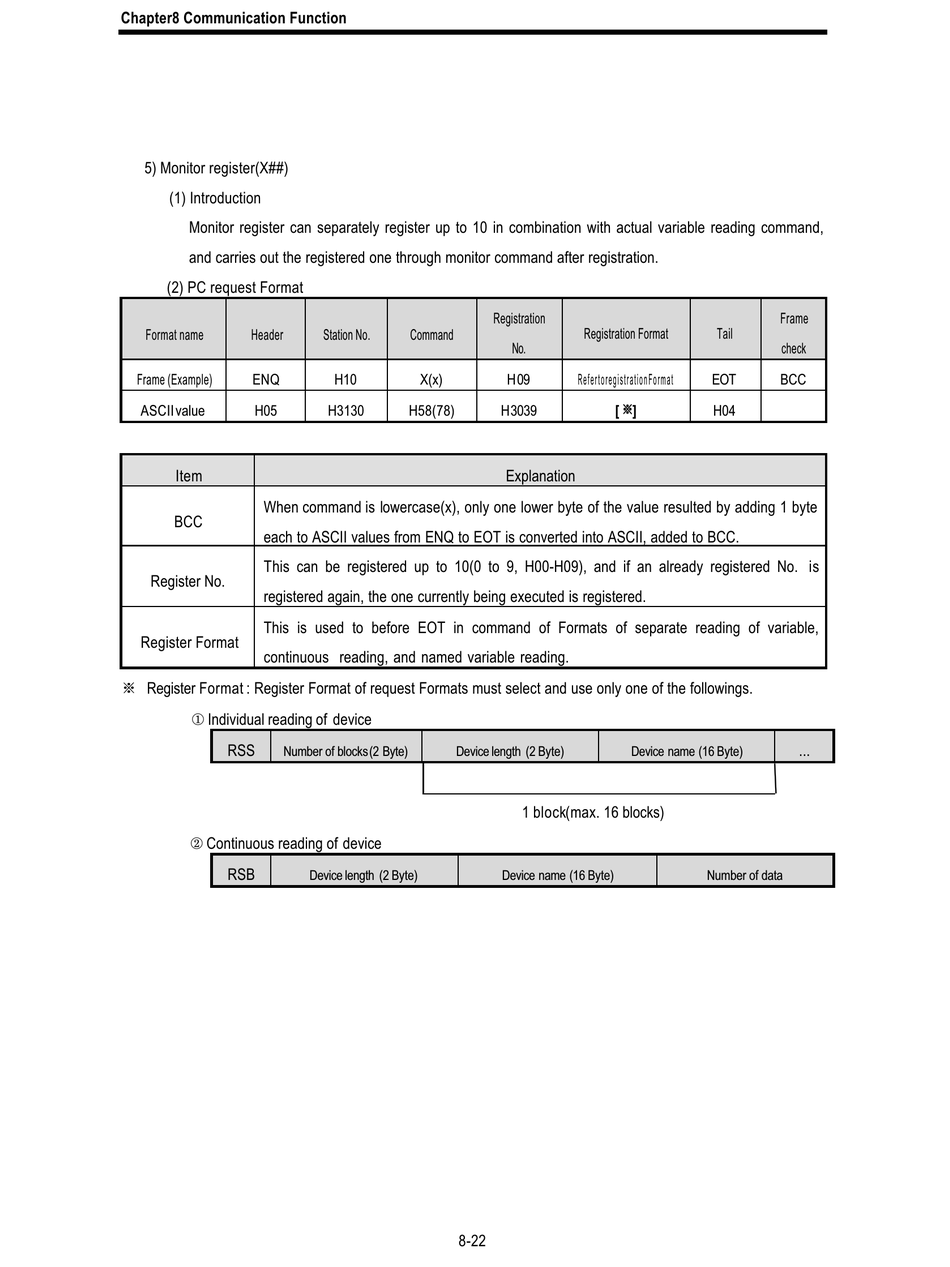

5) Monitor register(X##)
(1) Introduction
Monitor register can separately register up to 10 in combination with actual variable reading command,
and carries out the registered one through monitor command after registration.
(2) PC request Format
Format name Header
Frame (Example) ENQ
ASCII value H05
Item
When command is lowercase(x), only one lower byte of the value resulted by adding 1 byte
BCC
each to ASCII values from ENQ to EOT is converted into ASCII, added to BCC.
This can be registered up to 10(0 to 9, H00-H09), and if an already registered No. is
Register No.
registered again, the one currently being executed is registered.
This is used to before EOT in command of Formats of separate reading of variable,
Register Format
continuous reading, and named variable reading.
※ Register Format : Register Format of request Formats must select and use only one of the followings.
x Individual reading of device
RSS
Number of blocks(2 Byte)
y Continuous reading of device
RSB
Station No. Command
H10 X(x)
H3130 H58(78)
Device length (2 Byte)
Device length (2 Byte)
8-22
Registration
Registration Format
No.
H09 Refer to registration Format
H3039 [ ]
Explanation
Device name (16 Byte)
1 block(max. 16 blocks)
Device name (16 Byte)
Frame
Tail
check
EOT BCC
H04
...
Number of data
