Chapter8 Communication Function

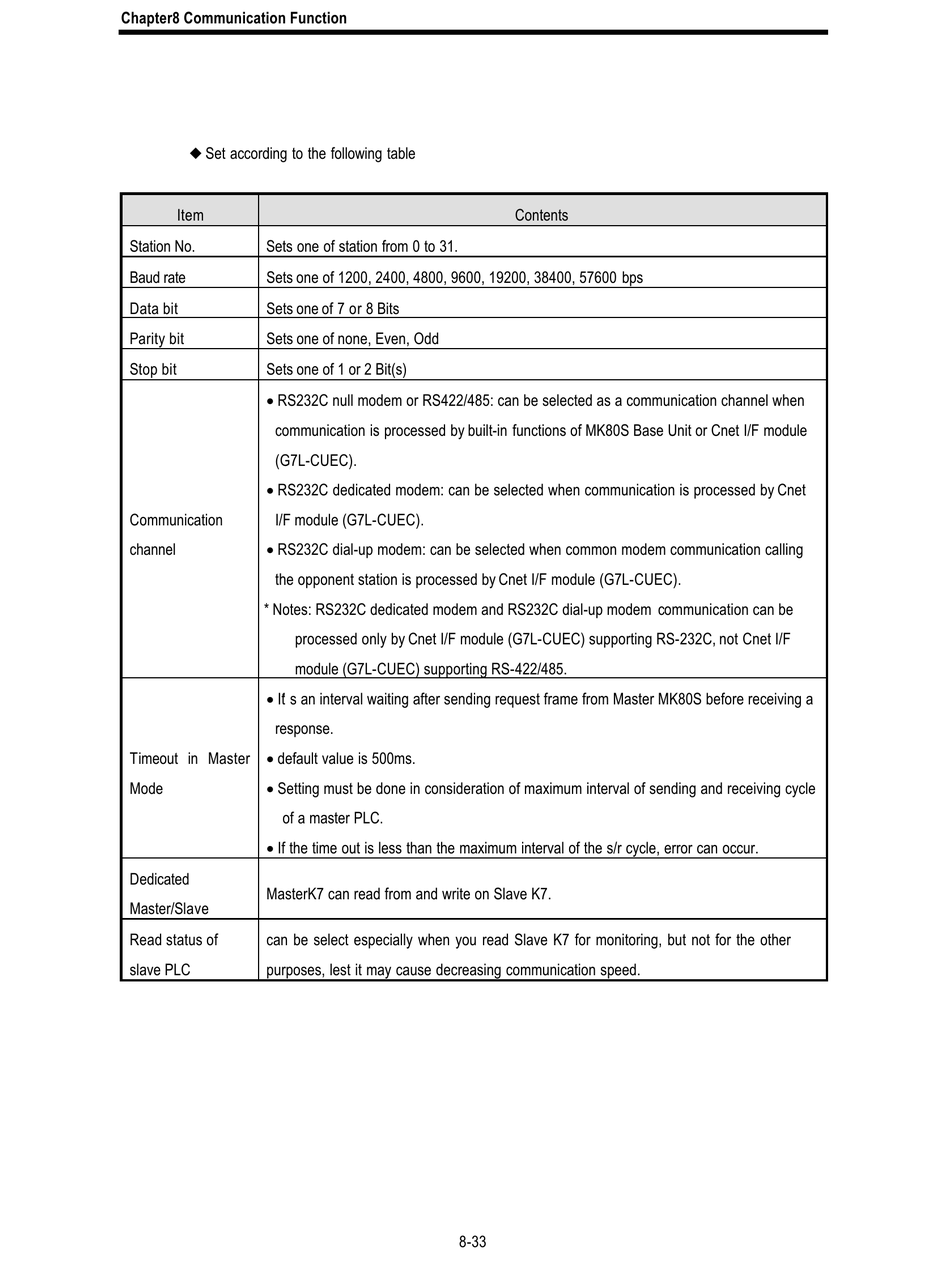

N Set according to the following table
Item
Station No. Sets one of station from 0 to 31.
Baud rate Sets one of 1200, 2400, 4800, 9600, 19200, 38400, 57600 bps
Data bit Sets one of 7 or 8 Bits
Parity bit Sets one of none, Even, Odd
Stop bit Sets one of 1 or 2 Bit(s)
• RS232C null modem or RS422/485: can be selected as a communication channel when
communication is processed by built-in functions of MK80S Base Unit or Cnet I/F module
(G7L-CUEC).
• RS232C dedicated modem: can be selected when communication is processed by Cnet
Communication I/F module (G7L-CUEC).
• RS232C dial-up modem: can be selected when common modem communication calling
channel
the opponent station is processed by Cnet I/F module (G7L-CUEC).
* Notes: RS232C dedicated modem and RS232C dial-up modem communication can be
processed only by Cnet I/F module (G7L-CUEC) supporting RS-232C, not Cnet I/F
module (G7L-CUEC) supporting RS-422/485.
• It ' s an interval waiting after sending request frame from Master MK80S before receiving a
response.
• default value is 500ms.
Timeout in Master
• Setting must be done in consideration of maximum interval of sending and receiving cycle
Mode
of a master PLC.
• If the time out is less than the maximum interval of the s/r cycle, error can occur.
Dedicated
MasterK7 can read from and write on Slave K7.
Master/Slave
Read status of can be select especially when you read Slave K7 for monitoring, but not for the other
slave PLC purposes, lest it may cause decreasing communication speed.
