Chapter 2 System Configuration
Chapter 2. System Configuration
TheIMO-K7Sseries has suitable to configuration of the basic, computer link and network systems.
This chapter describes the configuration and features of each system.

2.1. Overall Configuration

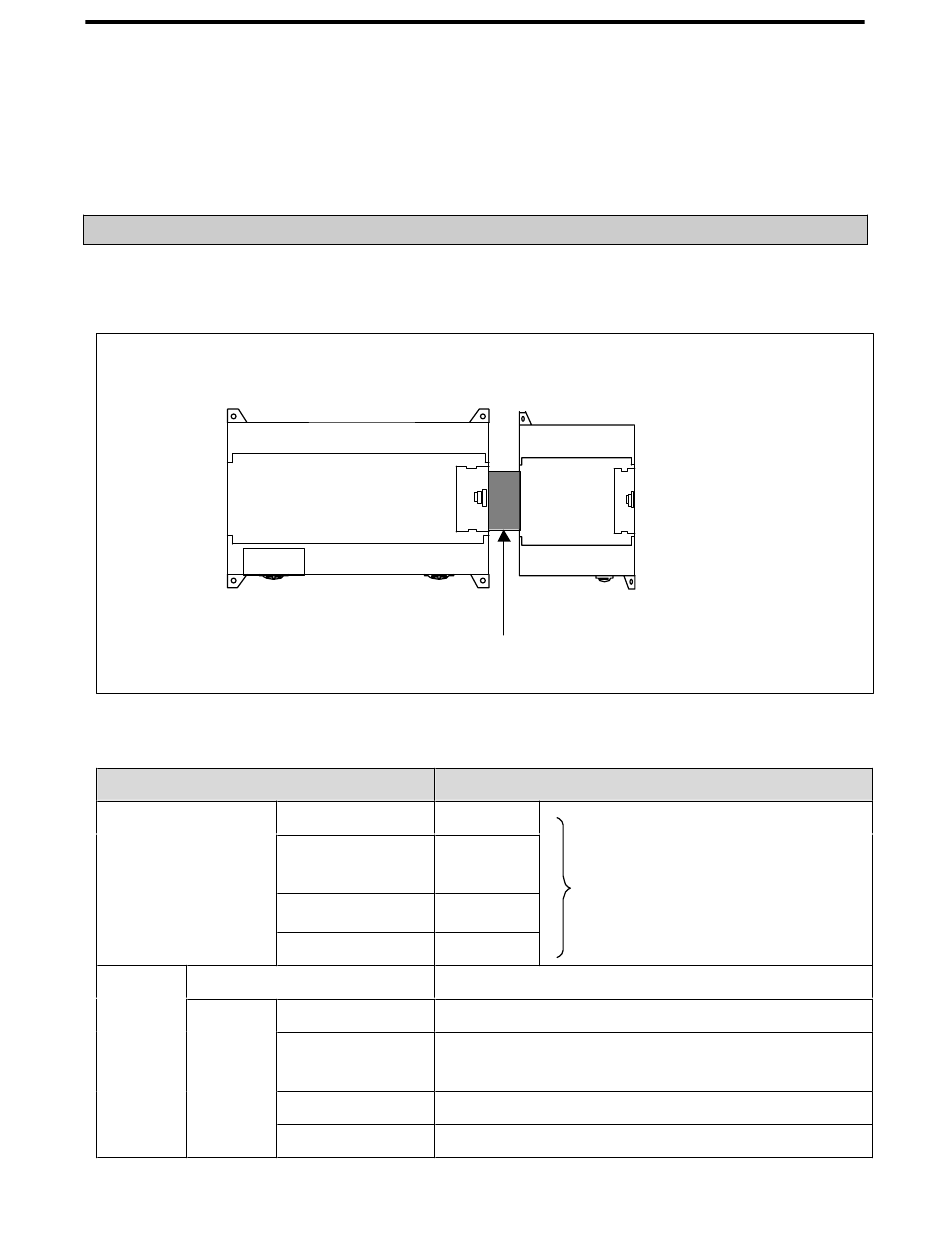

2.1.1 Basic system

Total I/O points
Maximum numbers
of ex pansion modules
Main unit
Items
Expansion
module
main unit
expansion
cable
• 20-80 points
• 2 modules
Digital I/O module
A/D-D/A
• 2 modules
Composite module
• 3 modules
Analog timer
• 1 module
Cnet I/F module
• K7M-DR20S, K7M-DR30S, K7M-DR40S, K7M-DR60S
• G7E-DR10A
Digital I/O module
A/D-D/A
• G7F-ADHA
Composite module
• G7F-AT2A
Analog timer
• G7L-CUEB, G7L-CUEC
Cnet I/F modules
2-1
ex pansion
module
Total 3 modules
