CYBEX Structure ST-HR Assembly Instructions Manual page 30

Wing
DO NOT USE equipment if not properly secured to floor. Manufacturer REQUIRES that this equipment be secured to the floor to
stabilize and eliminate rocking or tipping over. Use a licensed contractor.

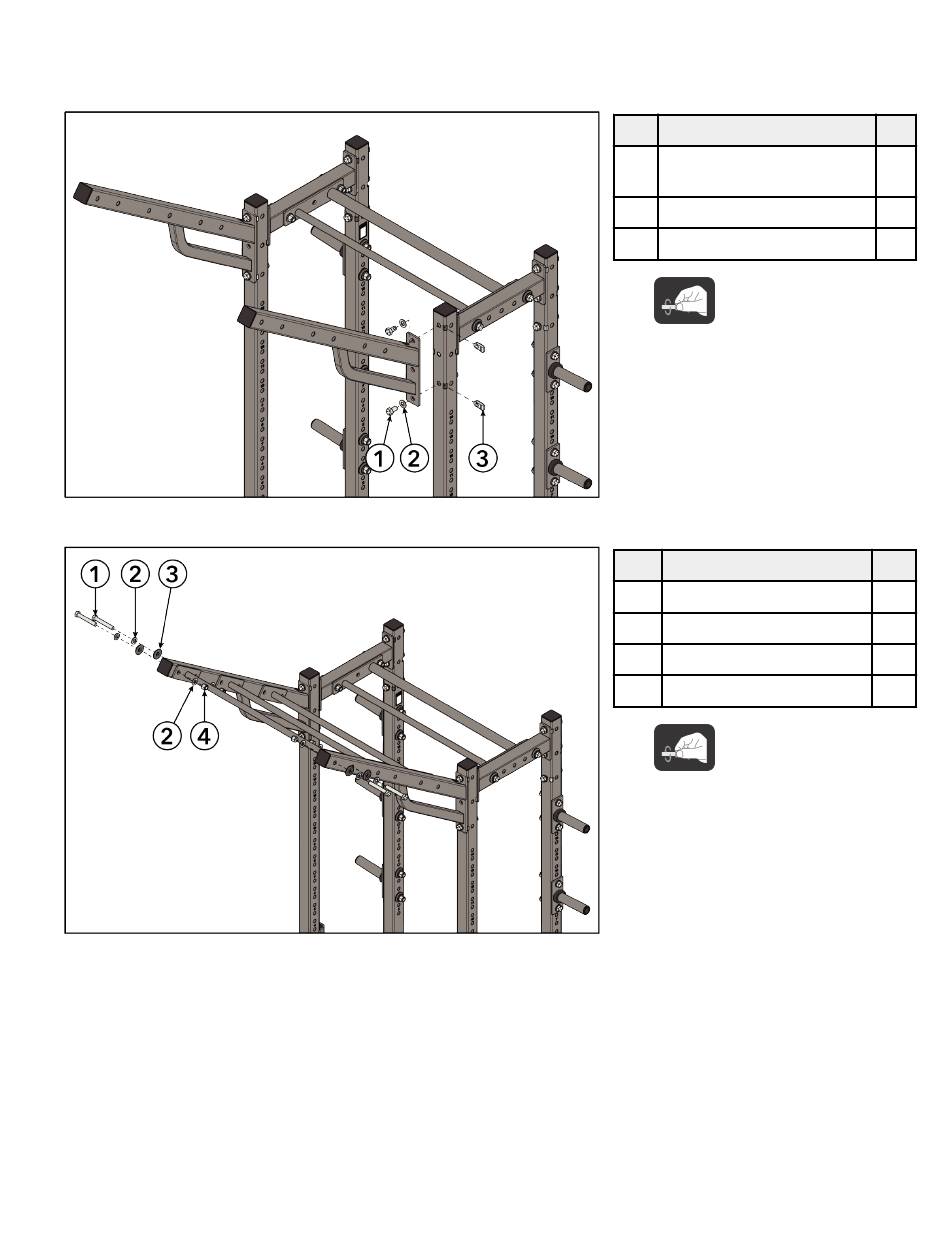

1. Install screws, washers, and locknuts securing the wing assemblies to the upright assemblies.
2. Install screws, washers, spacers, and locknuts securing the pull up bars to the wing assemblies..
3. Tighten all loose hardware to 45-50 ft-lb (61-68 Nm).
Page 28 of 44
Item Description
1 3/4-10 x 1-1/4" Hex Head
Screw
2 3/4" Flat Washer
3 3/4"- 10 Hammer Lock Nut
Hand tighten hardware.
Item Description
1 3/4-10 x 5" Hex Head Screw
2 3/4" Flat Washer
3 2.25 OD x 3/8" Spacer
4 3/4-10 Nylock Nut
Hand tighten hardware.
Qty.
4
4
4
Qty.
12
24
12
12
