CYBEX Structure ST-HR Assembly Instructions Manual page 16

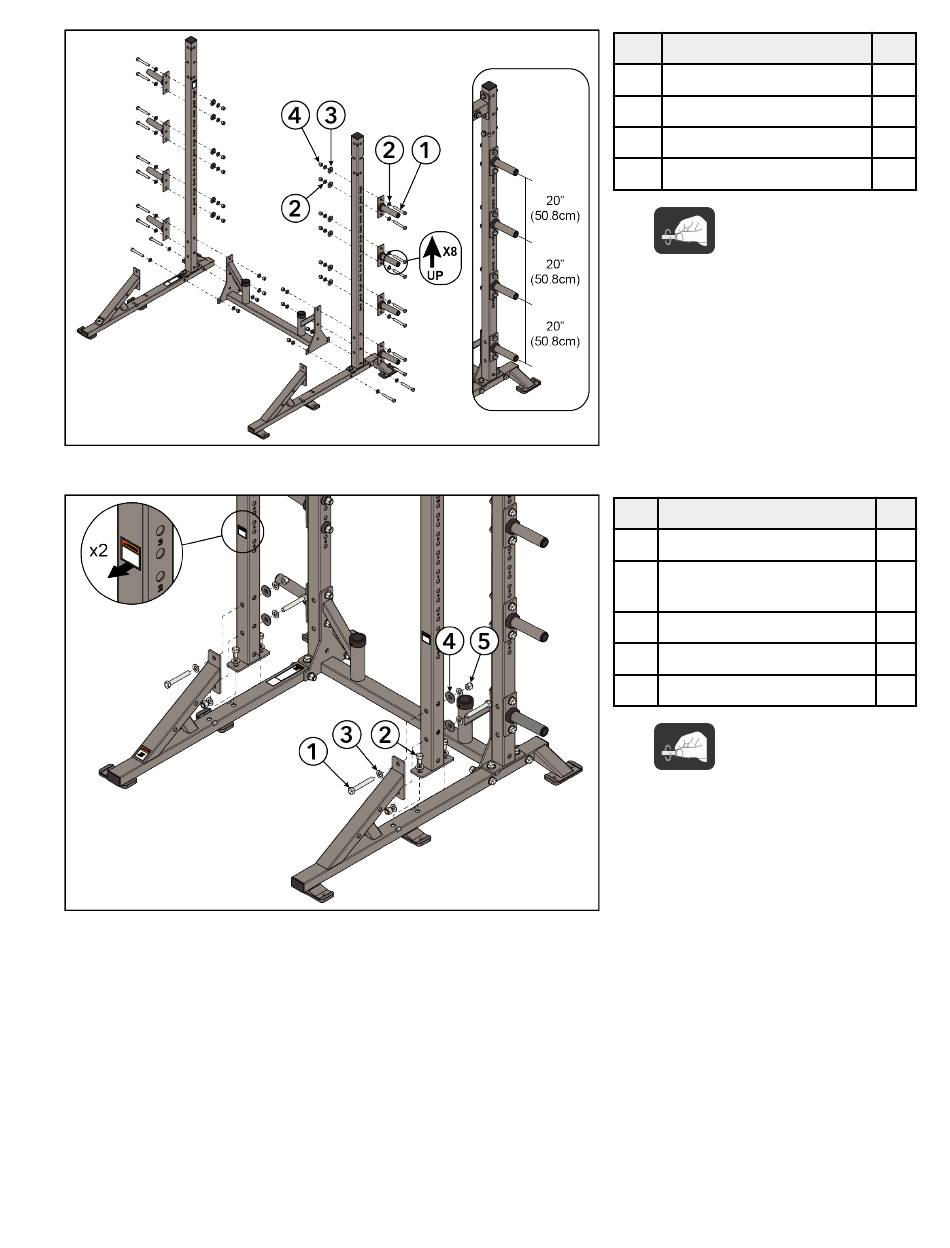

5. Install screws, washers, spacers, and locknuts securing the weight horn assemblies to the upright assemblies.
6. Install screws, washers, spacers, and locknuts securing the upright assemblies to the base assemblies.
Page 14 of 44
Item Description
1 3/4-10 x 5" Hex Head Screw
2 3/4" Flat Washer
3 2.25 OD x 3/8" Spacer
4 3/4-10 Nylock Nut
Hand tighten hardware.
Item Description
1 3/4-10 x 5" Hex Head Screw
2 3/4-10 x 1-1/4" Hex Head
Screw
3 3/4" Flat Washer
4 2.25 OD x 3/8" Spacer
5 3/4-10 Nylock Nut
Hand tighten hardware.
Qty.
20
40
12
20
Qty.
4
4
12
4
4
