CYBEX Structure ST-HR Assembly Instructions Manual page 14

Free Standing Storage

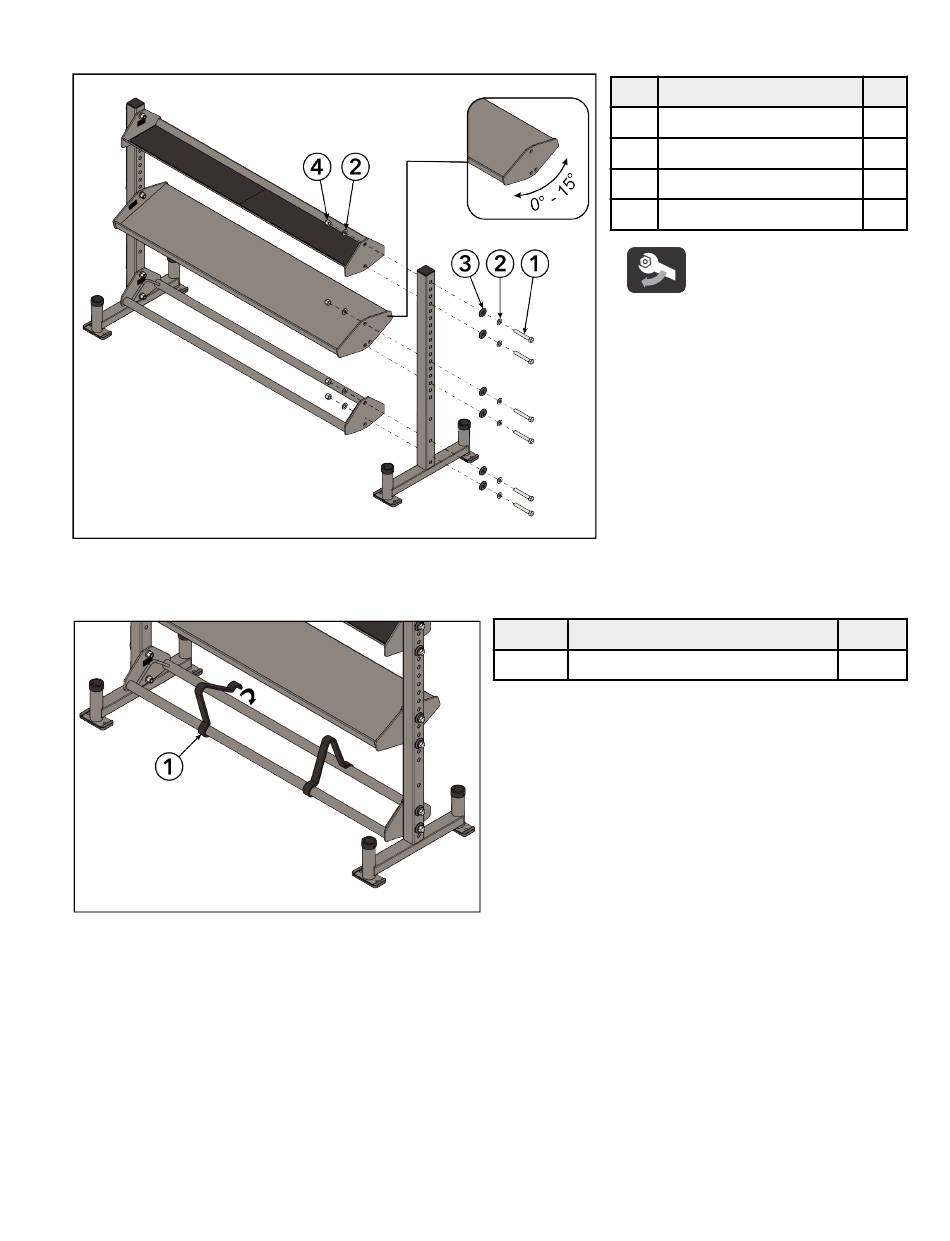

1. Install screws, washers, spacers, and locknuts securing the trays to the base assemblies.
2. NOTE: OPTIONAL: If your product does not include bumper plate dividers, skip this step.
Install optional 2-pipe bumper plate dividers.
Item
1
Page 12 of 44
Item Description
1 3/4-10 x 5" Hex Head Screw
2 3/4" Flat Washer
3 2.25 OD x 3/8" Spacer
4 3/4-10 Nylock Nut
Tighten hardware to 45-50 ft-lb
(61-68 Nm).
Description
Bumper Plate Dividers
Qty.
12
24
12
12
Qty.
2
