CYBEX Structure ST-HR Assembly Instructions Manual page 19

Half Rack / Half Rack Combo

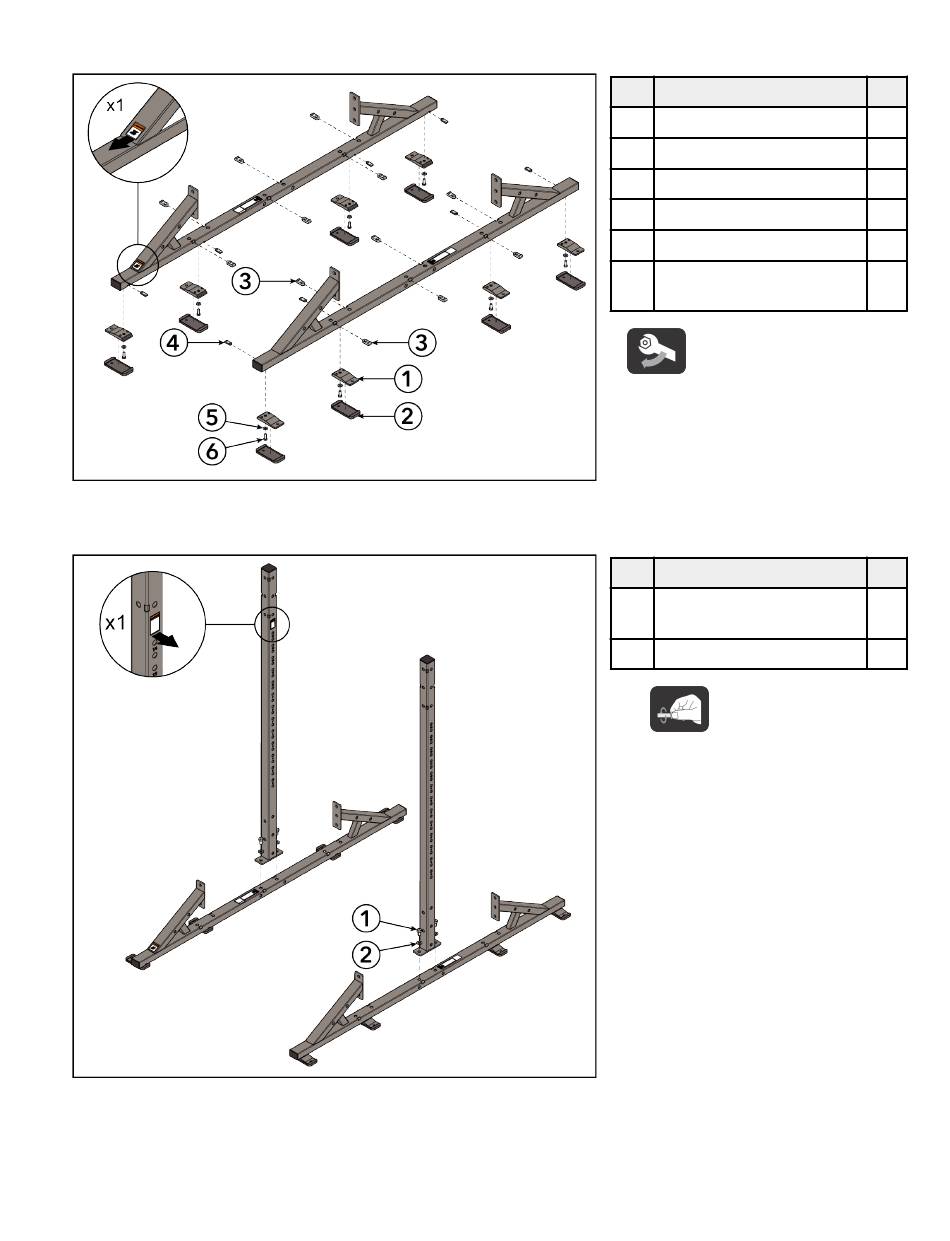

1. Install screws, washers, and locknuts securing the forged strength feet to the base assemblies.
2. Install rubber slippers onto the forged strength feet.
3. Install screws and washers securing the upright assemblies to the base assemblies.
4. Install screws, washers, spacers, and locknuts securing the cross member assembly to the upright and base assemblies.
Page 17 of 44
Item Description
1 Forged Strength Foot
2 3" x 6" Rubber Slipper
3 3/4"- 10 Hammer Lock Nut
4 1/2"-13 Lock Nut
5 1/2" Flat Washer
6 1/2-13 x 1-1/4" Hex Head
Screw
Tighten hardware to 20-25 ft-lb
(27-34 Nm).
Item Description
1 3/4-10 x 1-1/4" Hex Head
Screw
2 3/4" Flat Washer
Hand tighten hardware.
Qty.
8
8
12
8
8
8
Qty.
4
4
