Tighten hardware to 45-50 ft-lb (61-68 Nm).
Power Pivot

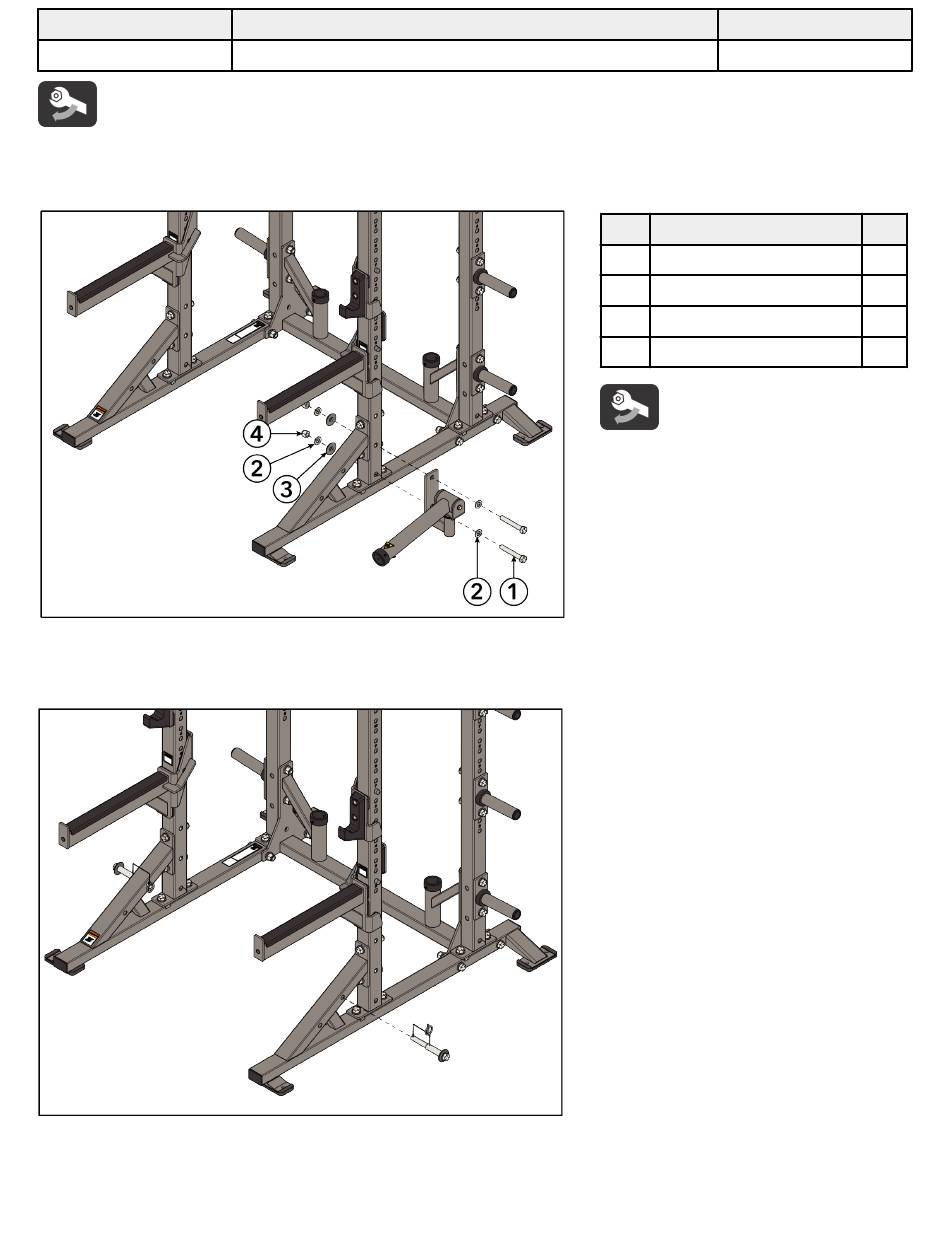

Install screws, washers, spacers, and locknuts securing the power pivot to the upright assembly.
Band Pegs
Install band pegs to the base assembly.
Description
3/4-10 Nylock Nut
Item
Page 26 of 44
Description
1
3/4-10 x 5" Hex Head Screw
2
3/4" Flat Washer
3
2.25 OD x 3/8" Spacer
4
3/4-10 Nylock Nut
Tighten hardware to 45-50 ft-lb (61-68
Nm).
Qty.
12
Qty.
2
4
2
2
