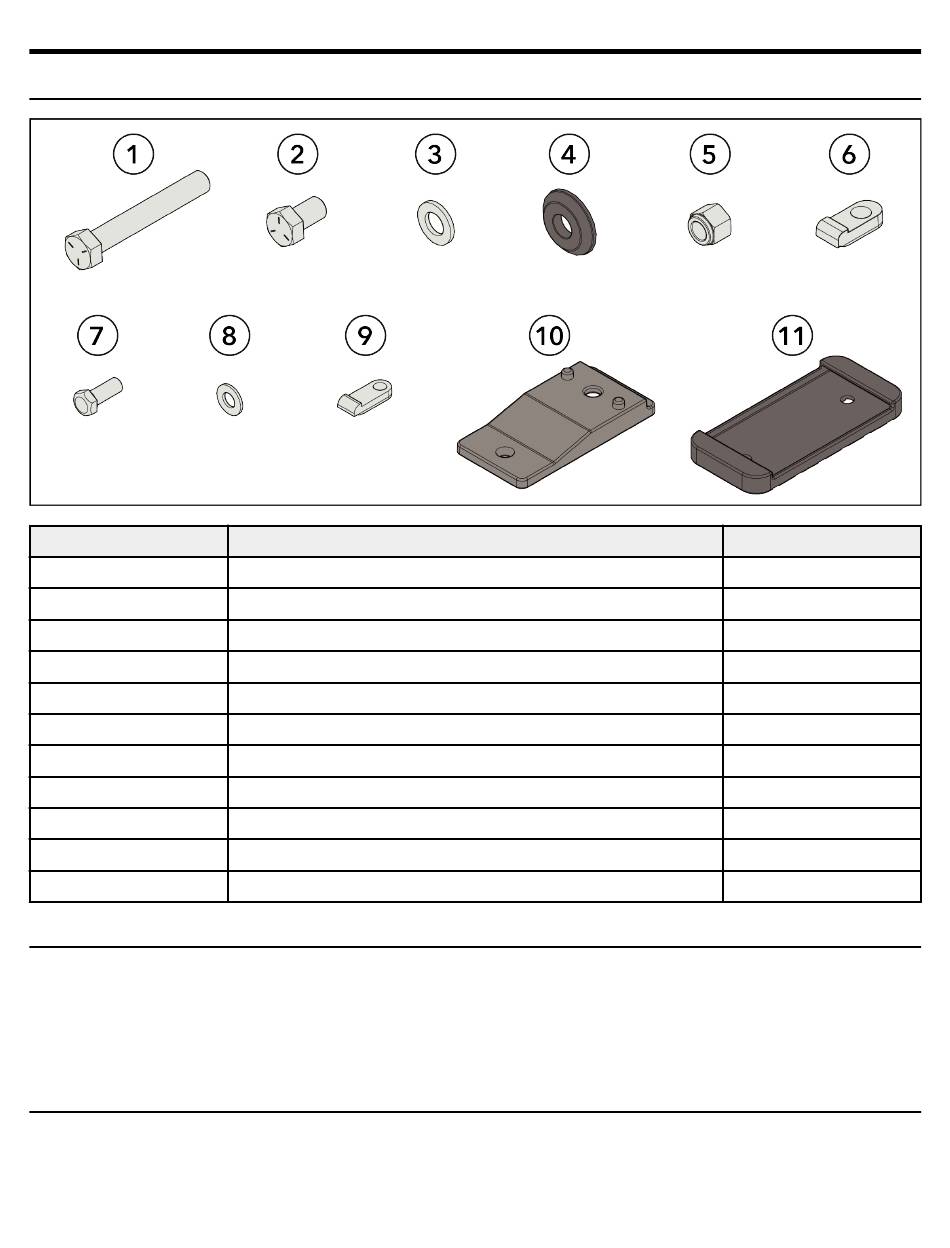

Hardware List

Item
1
2
3
4
5
6
7
8
9
10
11

Tools Required

• 3/4" Open end wrench (x2)
• 1 1/8" Open end wrench
• 1 1/16" Socket wrench
• T25 Torx Wrench
• Torque wrench

Assembly Procedure

Two people will be required for this procedure.
TIP: Read and understand all instructions thoroughly before assembling this unit. Check all items carefully. If there is damage, see the
Customer Service section of this manual for proper procedure to return, replace, or reorder parts.

Assembly

Description
3/4-10 x 5" Hex Head Screw
3/4-10 x 1-1/4" Hex Head Screw
3/4" Flat Washer
2.25 OD x 3/8" Spacer
3/4-10 Nylock Nut
3/4"- 10 Hammer Lock Nut
1/2-13 x 1-1/4" Hex Head Screw
1/2" Flat Washer
1/2"-13 Lock Nut
Forged Strength Foot
3" x 6" Rubber Slipper
Page 11 of 44
Qty.
28
48
48
20
28
12
6
6
6
6
6
