Rack Bumper Plate Storage

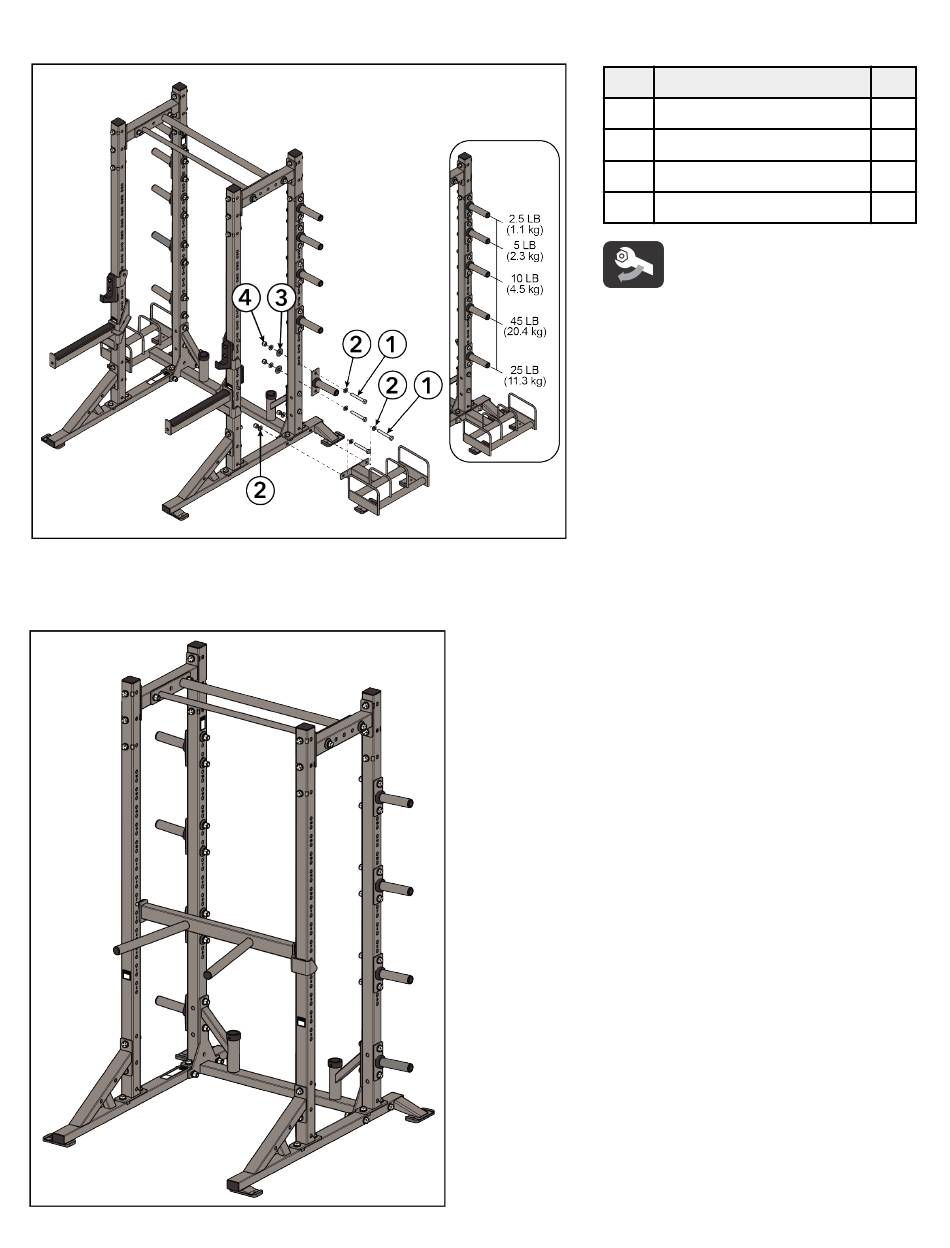

Install screws, washers, spacers, and locknuts securing the rack bumper plate storage and weight horns to the upright assembly.
Dip
Install dip assembly to the upright assemblies.
Page 27 of 44
Item
Description
1
3/4-10 x 5" Hex Head Screw
2
3/4" Flat Washer
3
2.25 OD x 3/8" Spacer
4
3/4-10 Nylock Nut
Tighten hardware to 45-50 ft-lb (61-68
Nm).
Qty.
8
16
4
8
