2.2
Mounting
The iDAQ-934 provides two types of mounting method. One is DIN-rail and the other
is wall mount.
2.2.1
DIN rail mount
The DIN Rail mounting kit is attached along with the package. Please make sure that
the mounting kit is well-packed and components are completely included as follow:
2 x frames
2 x buckles
4 x screws
If anything is missing, please contact local sales representative or sales channel.
The assembly step is as following for the iDAQ-934:
1.
Screw the two frames onto the chassis.
2.
Insert the buckle into the frame respectively.

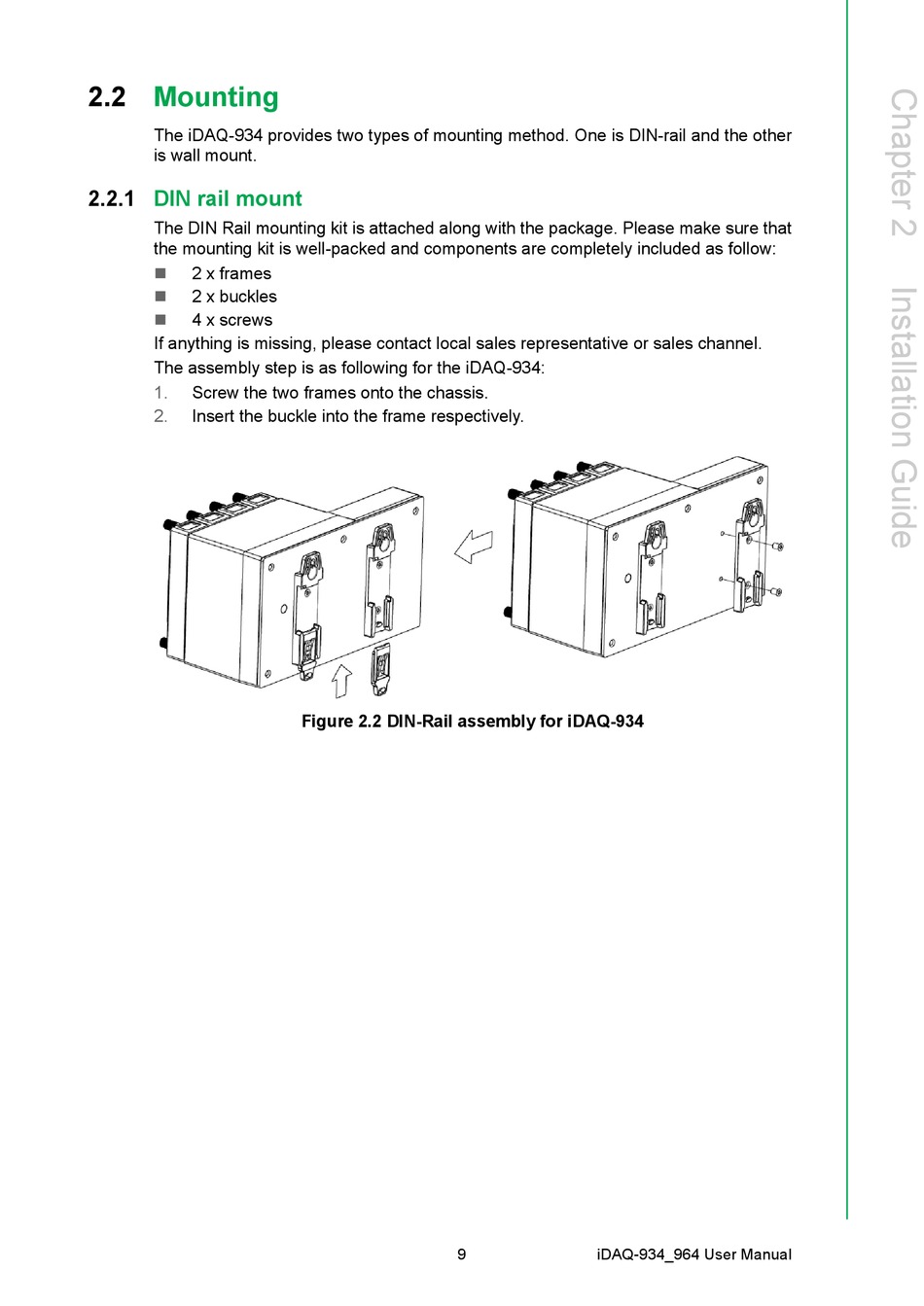

Figure 2.2 DIN-Rail assembly for iDAQ-934
9
iDAQ-934_964 User Manual
