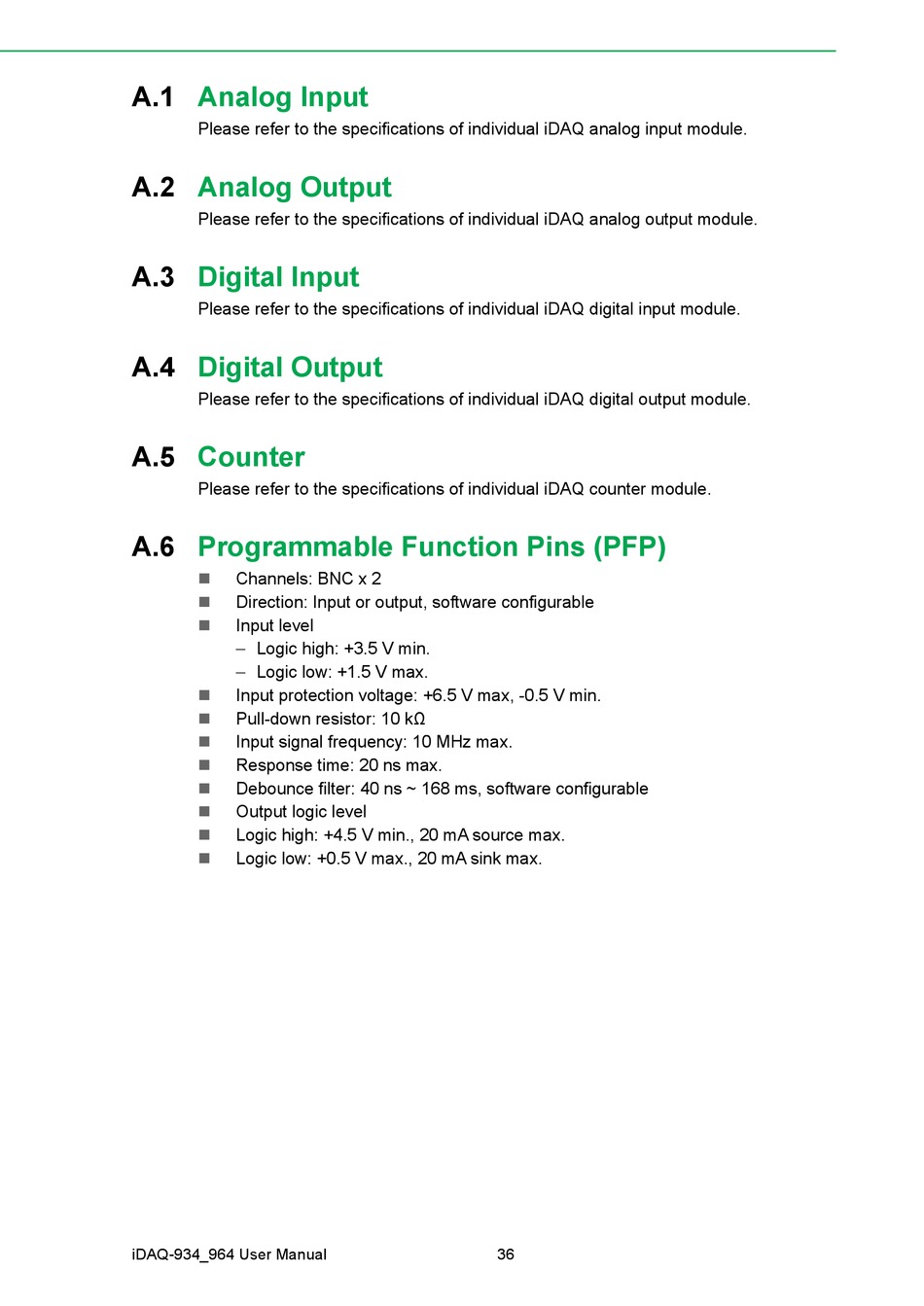

A.1

Analog Input

Please refer to the specifications of individual iDAQ analog input module.
A.2

Analog Output

Please refer to the specifications of individual iDAQ analog output module.
A.3

Digital Input

Please refer to the specifications of individual iDAQ digital input module.
A.4

Digital Output

Please refer to the specifications of individual iDAQ digital output module.
A.5

Counter

Please refer to the specifications of individual iDAQ counter module.
A.6

Programmable Function Pins (PFP)

Channels: BNC x 2

Direction: Input or output, software configurable

Input level

– Logic high: +3.5 V min.
– Logic low: +1.5 V max.
Input protection voltage: +6.5 V max, -0.5 V min.

Pull-down resistor: 10 kΩ

Input signal frequency: 10 MHz max.

Response time: 20 ns max.

Debounce filter: 40 ns ~ 168 ms, software configurable

Output logic level

Logic high: +4.5 V min., 20 mA source max.

Logic low: +0.5 V max., 20 mA sink max.

