Using iDAQ Modules

Below are the steps to insert the iDAQ modules into the iDAQ chassis.

Insert the module following the guide rail to the end.

Screw the two screws tight onto the chassis, note that you should balance the

depth of two screws when you screw them tightly.

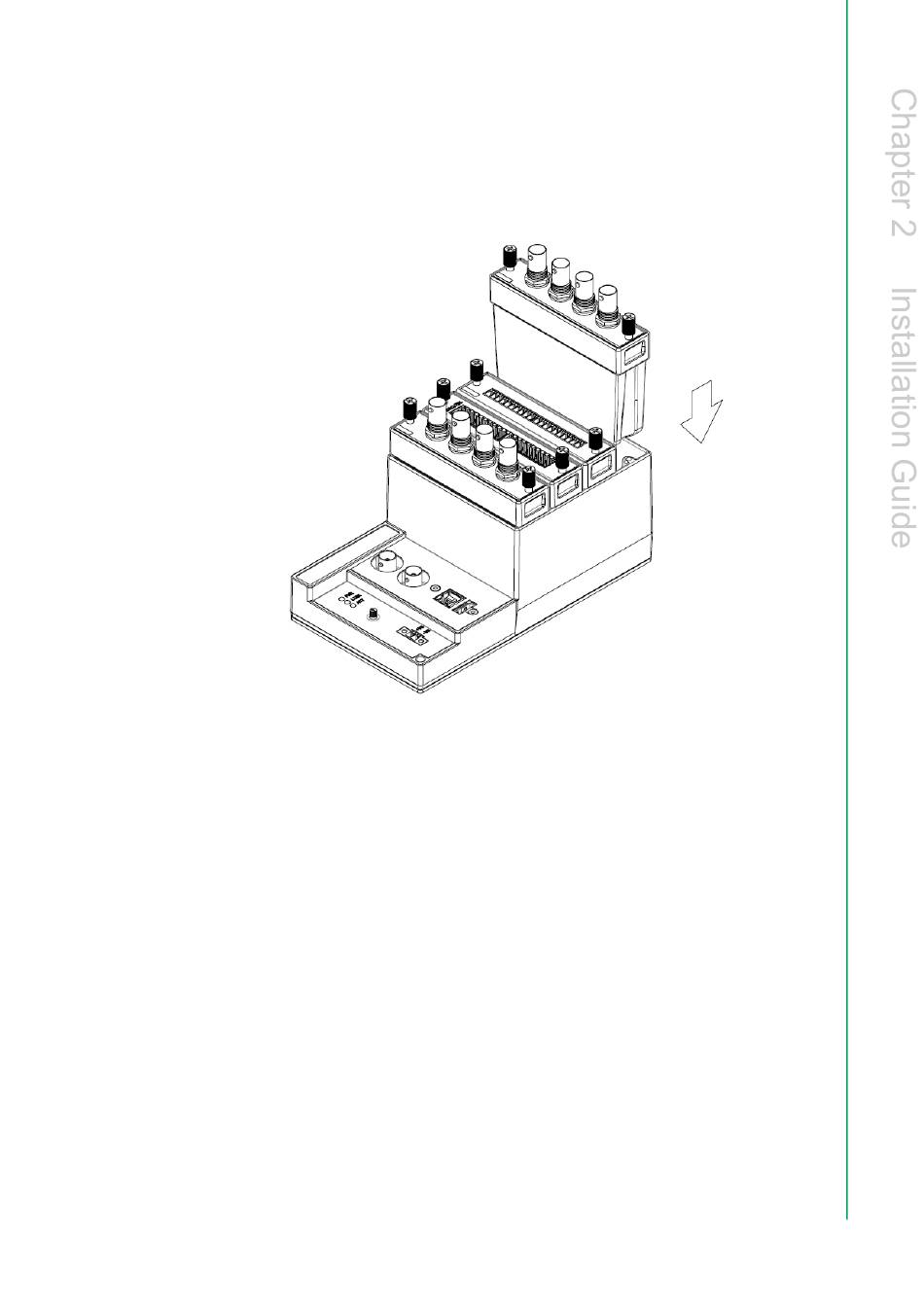

Figure 2.5 Installation of iDAQ modules

iDAQ-934_964 User Manual
