Chapter 2: Jumpers and Connectors

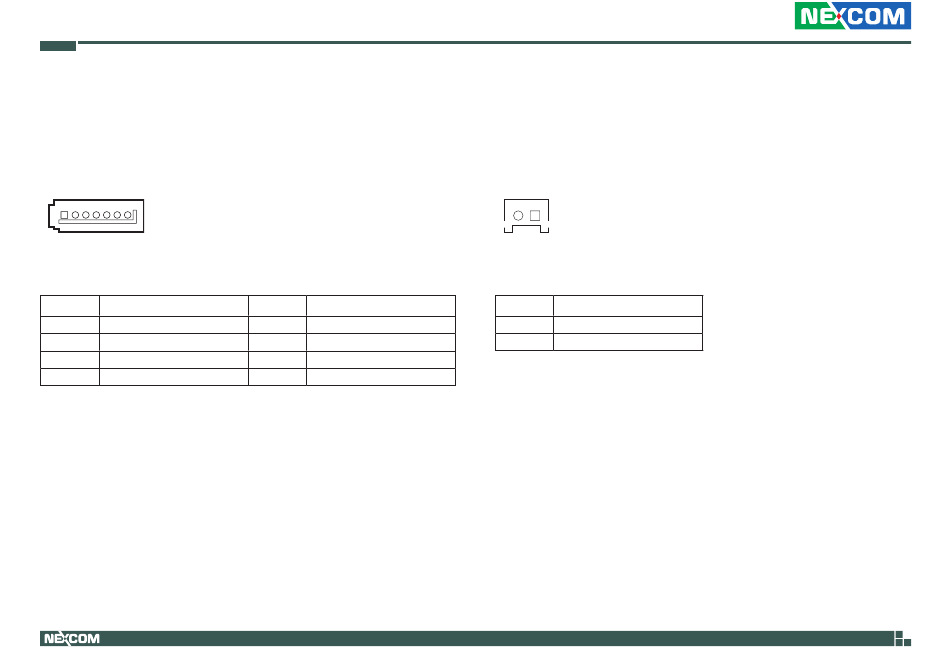

SATA Connector

Connector type: 1x7 7-pin header, 1.27mm pitch
Connector location: CN5
1 7
Pin Definition
1 GND
3 SATA_TXN1_C
5 SATA_RXN1_C
7 GND
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 SATA_TXP1_C
4 GND
6 SATA_RXP1_C

SATA Power Connector

Connector type: 1x2 2-pin header, 2.5mm pitch
Connector location: J5
2 1
Pin Definition
1 VCC5
2 GND
