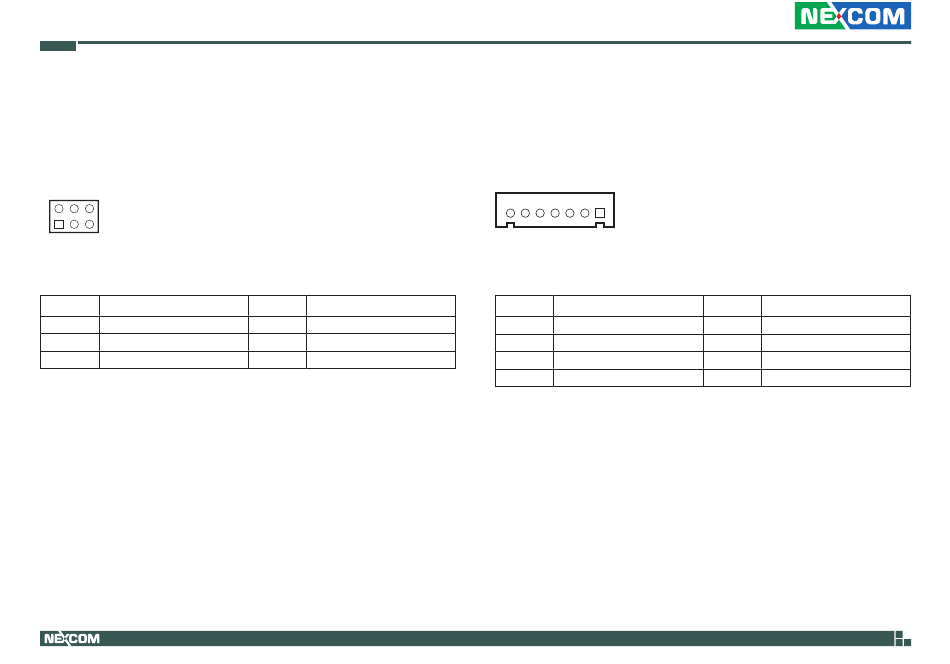

Chapter 2: Jumpers and Connectors

BIOS Programming (For Debug Only)

Connector type: 2x3 6-pin header, 2.0mm pitch
Connector location: JFW1
2
6
1
5
Pin
Definition
1
1.8V
3
SPI_CS#
5
SPI_SO
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
GND
4
SPI_CK
6
SPI_SI

LCD Backlight Connector

Connector type: 1x7 7-pin header, 1.25mm pitch
Connector location: J3
7
1
Pin
Definition
1
VCC5
3
12V
5
GND
7
BKLEN
16
Pin
Definition
2
12V
4
BKCTRL
6
GND
eLITE610 User Manual
