Chapter 2: Jumpers and Connectors

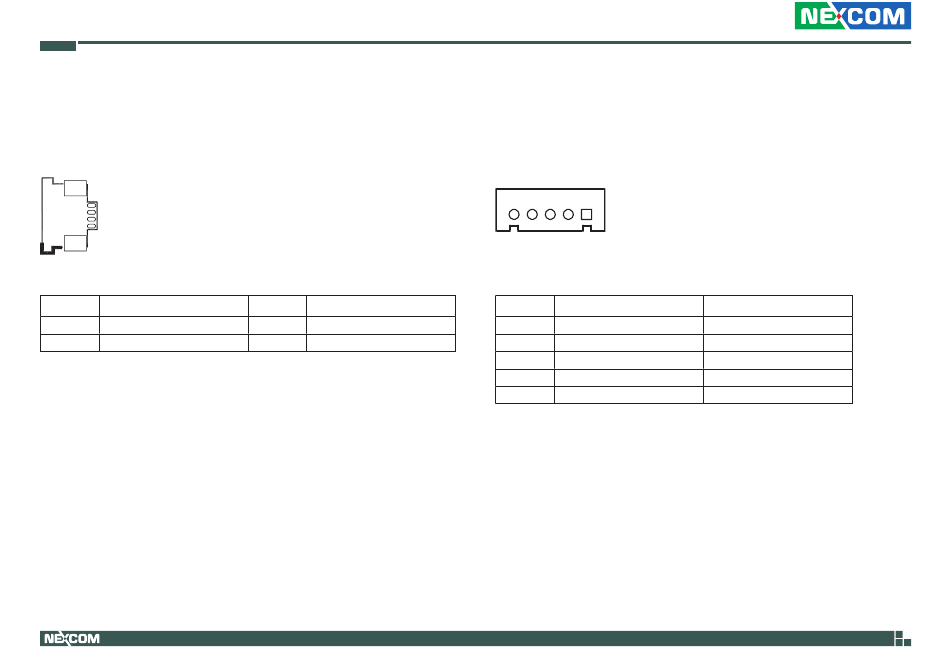

LVDS Touch FPC Connector
Connector type: 1x4 4-pin header
Connector location: CN3
4
1
Pin
Definition
1
Y_Up
3
Y_Down
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
X_Left
4
X_Right
Touch Sensor Connector
Connector type: 1x5 5-pin header JST, 2.5mm pitch
Connector location: J4
5
1
Pin
4-Wire
1
Bottom
2
Right
3
N/A
4
Top
5
Left
18
5-Wire
UR (H)
LR (X)
Sense (S)
UL (Y)
LL (L)
eLITE610 User Manual
