Chapter 2: Jumpers and Connectors

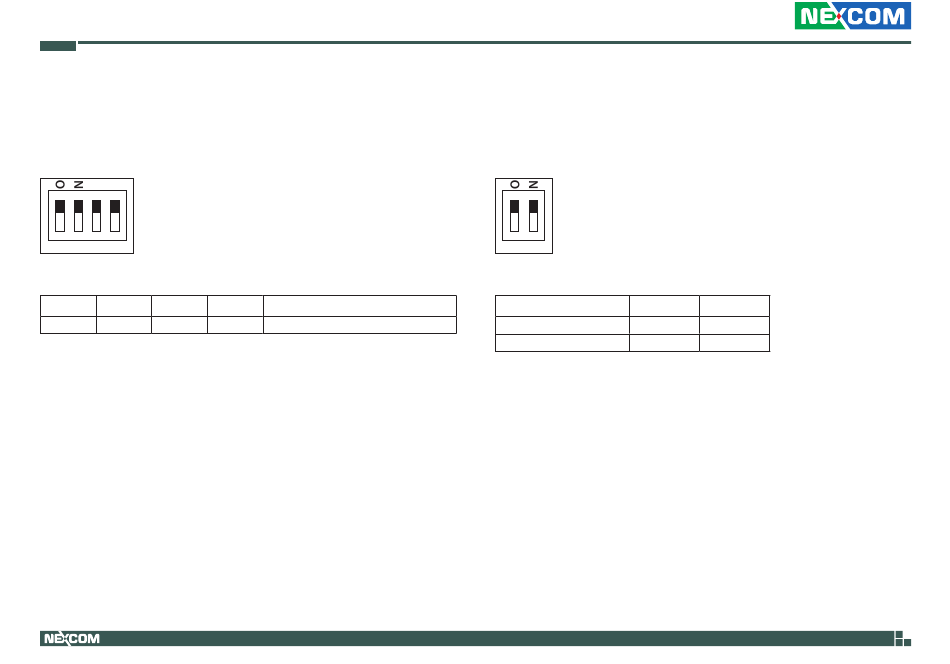

Panel Resolution Select

Connector type: 4-pin On/Off Switch
Connector location: SW1
1 2 3 4
SW1-1 SW1-2 SW1-3 SW1-4
OFF OFF ON
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Resolution
ON 1024 x 600 (WSVGA)

PWM/Backlight Enable Select

Connector type: 2-pin On/Off Switch
Connector location: SW2
1 2
Type SW2-1
LCDPWM_REVERSE
BACKLIGHT_REVERSE
SW2 (OFF, OFF): default
10
SW2-2
ON OFF
OFF ON
