Chapter 2: Jumpers and Connectors

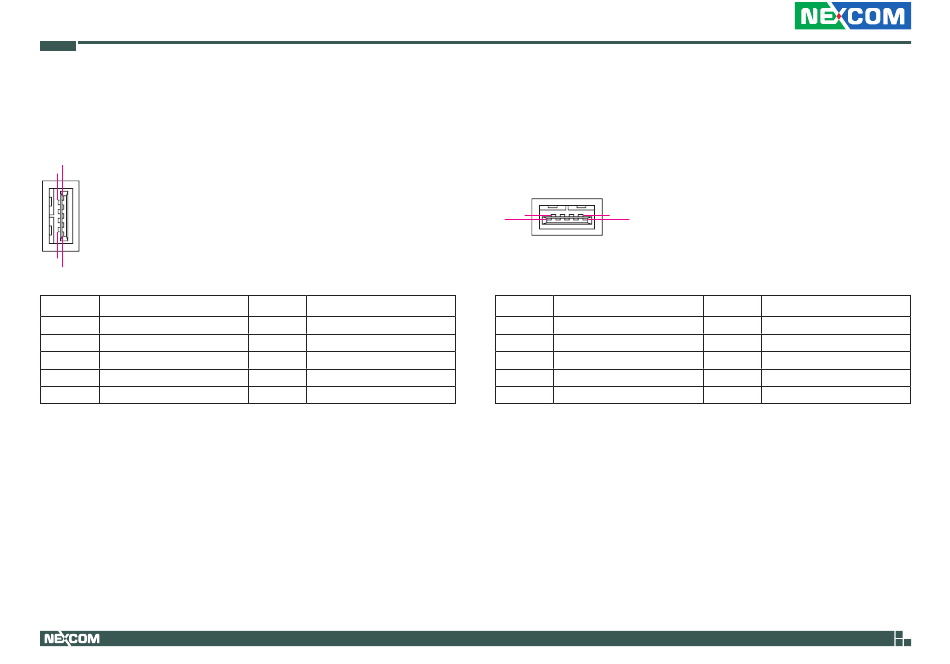

USB 3.0 Port 1
Connector type: USB 3.0 port, Type A
Connector location: USB1
9
1
4
5
Pin
Definition
1
+5V
3
USB0+
5
USB3_RX-
7
GND
9
USB3_TX+
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
USB0-
4
GND
6
USB3_RX+
8
USB3_TX-
USB 3.0 Port 2
Connector type: USB 3.0 port, Type A
Connector location: USB2
4
1
5
9
Pin
Definition
1
+5V
3
USB1+
5
USB3_RX-
7
GND
9
USB3_TX+
13
Pin
Definition
2
USB1-
4
GND
6
USB3_RX+
8
USB3_TX-
eLITE610 User Manual
