Chapter 2: Jumpers and Connectors

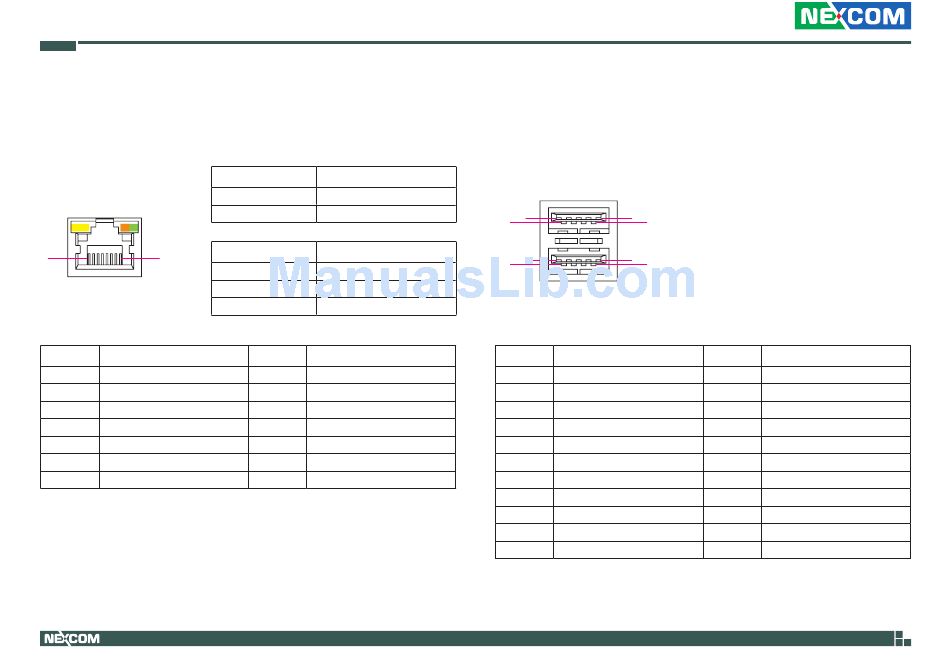

LAN4 Port

Connector type: RJ45 port with LEDs
Connector location: LAN1D
ACT LINK
8 1
Pin Definition
1 LAN4_MDI0P
3 LAN4_MDI1P
5 LAN4_TCTG
7 LAN4_MDI2P
9 LAN4_MDI3P
11 LAN4_LEDACT#
13 LAN4_LINK1G#
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Act Status
Flashing Yellow Data activity
Off No activity
Link Status
Steady Green 1G network link
Steady Orange 100Mbps network link
Off 10Mbps or no link
Pin Definition
2 LAN4_MDI0N
4 LAN4_MDI1N
6 LAN4_TCT
8 LAN4_MDI2N
10 LAN4_MDI3N
12 3VSB
14 LAN4_LINK100#

Dual USB 3.0 Port

Connector type: USB 3.0 ports, Type A
Connector location: USB2
18 14
10
9 5
1
Pin Definition
1 5V
3 USB2P0
5 USB3RN1
7 GND
9 USB3TP1
11 USB2N1
13 GND
15 USB3RP2
17 USB3TN2
MH1 CHASSIS_GND
MH3
16
13
4
Pin Definition
2 USB2N0
4 GND
6 USB3RP1
8 USB3TN1
10 5V
12 USB2P1
14 USB3RN2
16 GND
18 USB3TP2
MH2 CHASSIS_GND
MH4 CHASSIS_GND
