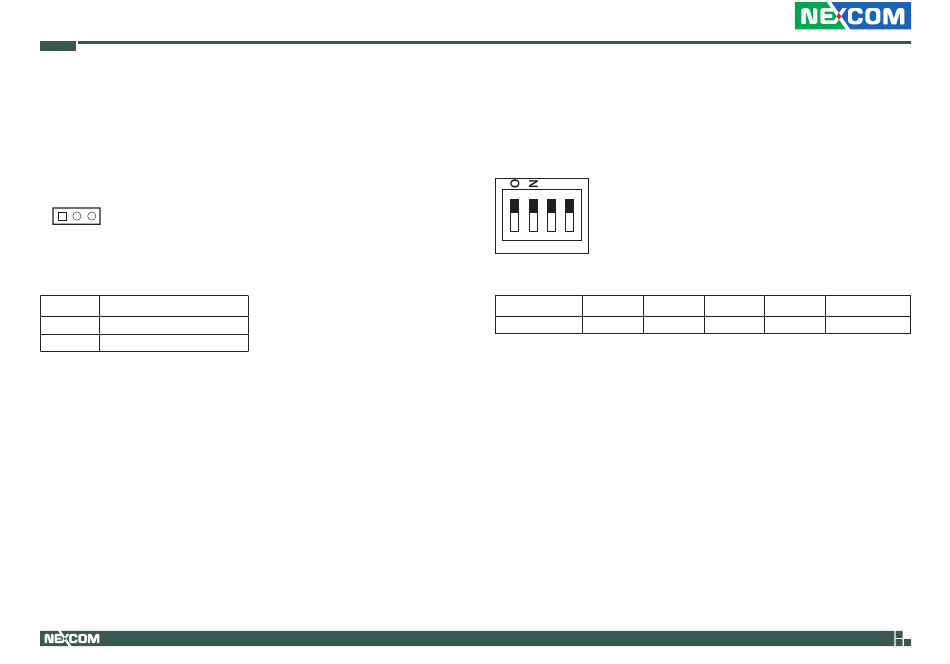

Chapter 2: Jumpers and Connectors
Touch 4/5 Wire Select
Connector type: 1x3 3-pin header, 2.54mm pitch
Connector location: JP4
1
3
Pin
Settings
1-2 On
5 wire
2-3 On
4 wire
1-2 On: default
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Panel Resolution Select
Connector type: 4-pin DIP switch
Connector location: SW2
1 2 3 4
Resolution
SW2-1
1024 x 768
ON
14
SW2-2
SW2-3
SW2-4
OFF
ON
ON
APPC 3154 User Manual
