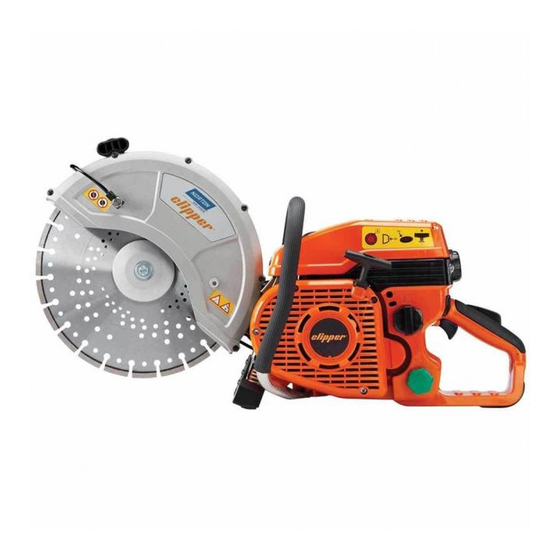

- Page 1 NORTON ClIPPER TROUblEShOOTINg MANUAl cP512-300i & cP514-350i High-speed Gas saws All ThE muscle yOU NEED™ — 2 —...
- Page 3 This manual is intended as a guide for the service center. The details and functional descriptions will assist with any possible repairs to the Norton Clipper high-Speed gas Saws CP512-300i or CP514-350i ilube®. We recommend that only Norton Clipper – Original parts are used for all repairs. This will ensure proper repair work and faultless operation of the machine.
- Page 4 cP512-300i & cP514-350i HIGH-sPeeD GAs sAWs TROUblE ShOOTINg MANUAl chapter 1 ChECk OF OIl lEVEl AND ASSOCIATED COMPONENTS before testing any of the electrical components, check the oil tank, oil pick-up filter and the oil pick-up hose. We recommend starting by checking the oil pick-up filter for obstructions then, test the oil pick-up hose for leaks.
- Page 5 cP512-300i & cP514-350i HIGH-sPeeD GAs sAWs TROUblE ShOOTINg MANUAl chapter 4 TESTINg ThE gENERATOR g1 AND FAUlT FINDINg To test the condition of the generator g1 as a possible fault source, proceed as follows: 1. Disconnect the push-plug connection (x13/x23 and x14/x24) and test the two yellow cables on the plug x23/x24 with the multi-meter for resistance.
- Page 6 cP512-300i & cP514-350i HIGH-sPeeD GAs sAWs TROUblE ShOOTINg MANUAl chapter 8 TESTINg OF ThE OIl PUMP ElECTRONIC A2 The connection x15/x25 is separated for this test. Connect the test probes with plug x15. The polarity is not important at this point. If there is a voltage increase of +18V or -18V = DC for the short time pulse of 0.16 sec.
- Page 7 cP512-300i & cP514-350i HIGH-sPeeD GAs sAWs TROUblE ShOOTINg MANUAl ...
- Page 8 cP512-300i & cP514-350i HIGH-sPeeD GAs sAWs TROUblE ShOOTINg MANUAl — 6 —...
- Page 9 cP512-300i & cP514-350i HIGH-sPeeD GAs sAWs TROUblE ShOOTINg MANUAl — 7 —...
- Page 10 #8393 © Saint-Gobain Abrasives, Inc. April 2013 Phone Toll Free: 1 800 554-8003 Phone Toll Free: 1 800 263-6565 Norton, Clipper, and iLube are registered trademarks of Saint-Gobain Abrasives, Inc. Fax Toll Free: 1 800 443-1092 Fax Toll Free: 1 800 561-9490 —...
