Summary of Contents for Norton clipper CM 350 B

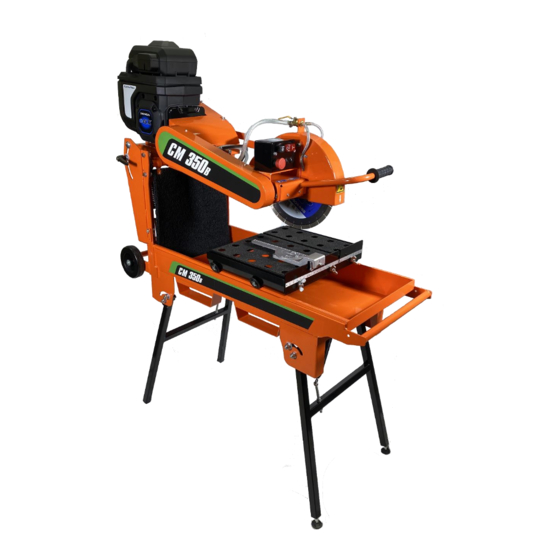

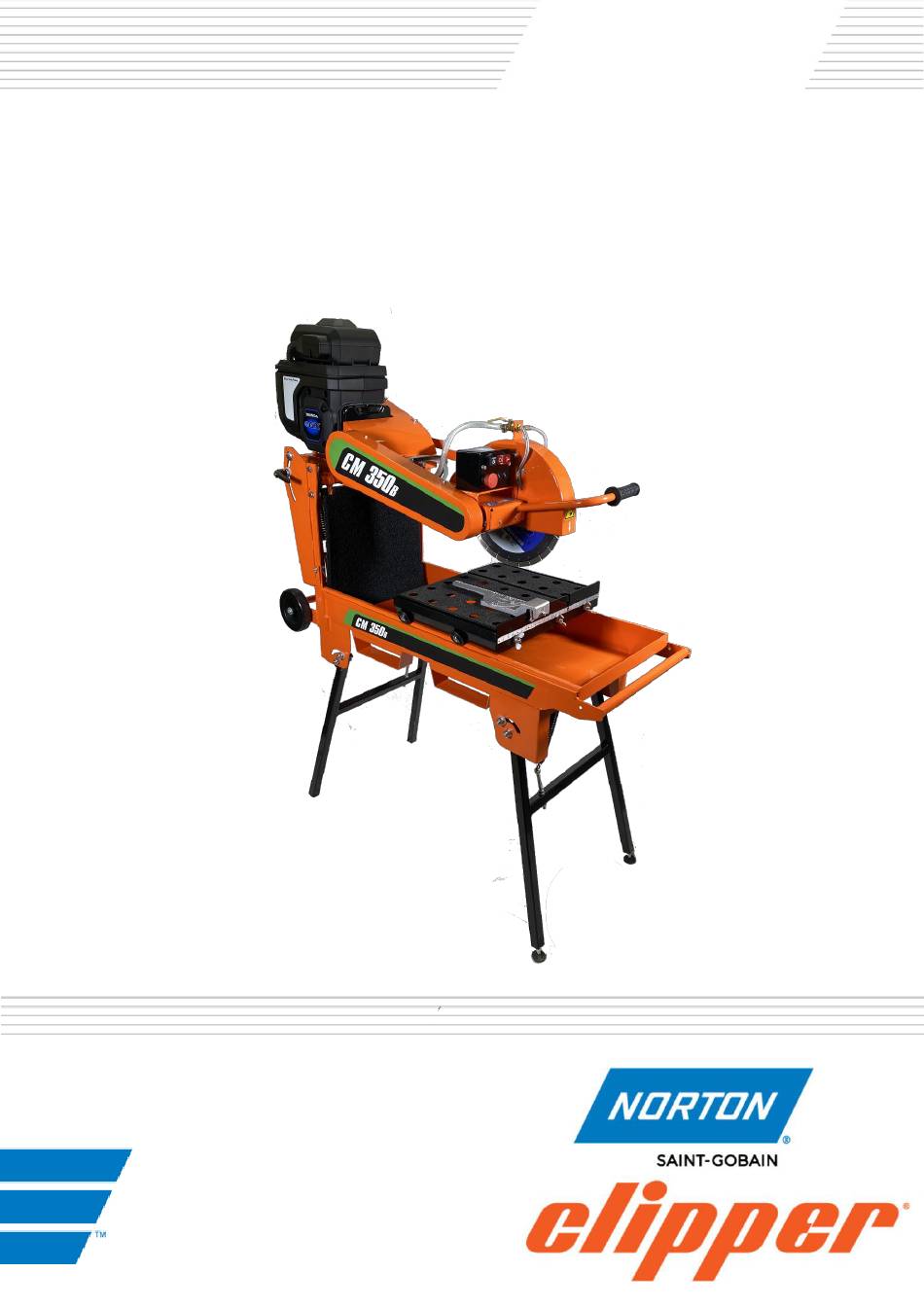

- Page 1 CM 350 B OPERATING INSTRUCTIONS Translation of the original instructions...
- Page 2 VERS. 2023.06.12 CM 350 B_MAN_EN...
- Page 3 VERS. 2023.06.12 CM 350 B_MAN_EN Declaration of conformity The undersigned manufacturer: SAINT - GOBAIN ABRASIVES S.A. 190, BD J.F. KENNEDY L- 4930 BASCHARAGE Declares that this product: CM 350 B 70184632547 Masonry Saws: Code: is in conformity with the following Directives: •...
- Page 4 VERS. 2023.06.12 CM 350 B_MAN_EN Declaration of conformity The undersigned manufacturer: SAINT - GOBAIN ABRASIVES S.A. 190, BD J.F. KENNEDY L- 4930 BASCHARAGE Declares that this product: 70184632547 Masonry Saw: CM 350 B Code: is in conformity with the following standard: •...
-
Page 5: Table Of Contents
VERS. 2023.06.12 CM 350 B_MAN_EN CM 350B OPERATING INSTRUCTIONS 1 BASIC SAFETY INSTRUCTIONS 1.1 Symbols 1.2 Machine plate 1.3 Safety instructions for particular operating phases 2 MACHINE DESCRIPTION 2.1 Short description 2.2 Purpose of use 2.3 Layout 2.4 Technical Data 2.5 Statement regarding the vibration emission 2.6 Statement regarding noise emission 3 ASSEMBLY AND COMMISSIONING... -
Page 6: Basic Safety Instructions
VERS. 2023.06.12 CM 350 B_MAN_EN 1 BASIC SAFETY INSTRUCTIONS The CM 350 B is exclusively designed for the cutting of construction products mainly on construction sites. Uses other than the manufacturer's instructions shall be considered as contravening the regulations. The manufacturer shall not be held responsible for any resulting damage. Any risk shall be borne entirely by the user. -
Page 7: Machine Plate
• Always cut with the blade guard in position. • Only fit NORTON diamond blades to the machine! The use of other tools can damage the machine! • Read the blades’ specifications carefully to choose the correct tool for your application. -
Page 8: Machine Description
As with all other NORTON products, the operator will immediately appreciate the attention given to detail and quality of materials used in construction. The machine and its component parts are assembled to high standards assuring long life and minimum maintenance. - Page 9 VERS. 2023.06.12 CM 350 B_MAN_EN Frame and feet (1) The frame is made of a jig-welded reinforced steel construction to ensure perfect rigidity. 4 removable legs fit into housings welded on frame sides and locked into place with wing screws. The front feet are adjustable.
-
Page 10: Technical Data
VERS. 2023.06.12 CM 350 B_MAN_EN 2.4 Technical Data Technical data Battery motor 1,8kW Max. blade diameter 350mm Bore 25,4mm Rotation speed of the blade 2500 min Cutting depth 110mm (without reversing the material) Flange diameter 95mm Sound pressure level 88,8 dB (A) (selon ISO EN 11201) Sound energy level 108,8 dB (A) (selon ISO EN 3744) Max. -
Page 11: Statement Regarding The Vibration Emission
VERS. 2023.06.12 CM 350 B_MAN_EN 2.5 Statement regarding the vibration emission Declared value of vibration emission following EN 12096. Machine Measured value of vibration Uncertainty K Tool used Model / code emission at m/s Model / code CM 350 B 2.17 0.31 Clipper ALFA Ø350... -
Page 12: Statement Regarding Noise Emission
VERS. 2023.06.12 CM 350 B_MAN_EN 2.6 Statement regarding noise emission Declared value of noise emission following EN ISO 11201 and NF EN ISO 3744. Machine Sound Uncertainty K Sound power Uncertainty K Model / code Pressure level (Sound level (Sound power level Pressure level EN ISO 11201 NF EN ISO 3744... -
Page 13: Assembly And Commissioning
3.1 Tool assembly Only NORTON blades with a maximum diameter of 350 mm can be used with the CM 350B. All tools used must be selected with regard to their maximum permitted cutting speed for the machine’s maximum permitted rotation speed. -
Page 14: Quick Reference Guide For Operation
VERS. 2023.06.12 CM 350 B_MAN_EN 3.3 Quick reference guide for operation... -
Page 15: Battery Fixation And Starting The Machine
VERS. 2023.06.12 CM 350 B_MAN_EN 3.4 Battery fixation and starting the machine • Switch on the battery by pressing the Power button (1) (the switch must be in the OFF position) the 3 LEDs will lit. • Wait until the green LED on the control panel is the only one lit •... -
Page 16: Charging The Battery
VERS. 2023.06.12 CM 350 B_MAN_EN 3.5 Charging the battery This machine works with a battery, so you have to think about charging it. A fast charger is available for this. It will take between 1h and 1h30 to recharge a full battery charge. When charging the battery, the charger fan turns on to prevent the battery from heating up. -
Page 17: Operating The Machine
VERS. 2023.06.12 CM 350 B_MAN_EN 4 OPERATING THE MACHINE 4.1 Site of work 4.1.1 Siting the machine • Remove from the site anything, which might hinder the working procedure! • Make sure the site is sufficiently well lit! • Make sure you have a continual adequate view of the working area so you can intervene in the working process at any time! •... - Page 18 VERS. 2023.06.12 CM 350 B_MAN_EN 4.2.2 Multiple step cutting Multiple step cutting consists of moving the conveyor cart with the material to be cut back and forward under the rotating blade, • Place the material to be cut on the conveyor cart firmly against the guide-a-cut and the backstop, keeping the hands well away from the blade.
-
Page 19: Transport And Storing
VERS. 2023.06.12 CM 350 B_MAN_EN 5 TRANSPORT AND STORING 5.1 Securing for transport Before transporting the machine, always remove the blade and empty the water pan. Also remove the conveyor cart, as it can be dangerous while you move the machine. 5.2 Transport procedure Two people are necessary to move the machine. -
Page 20: Maintenance And Servicing
Maintenance of the machine Always perform the maintenance of the machine with the battery disconnected. Lubrification Norton Clipper machines are equipped with lifetime lubricated bearings and ball bearings. It is therefore unnecessary to grease or oil the machine. Cleaning of the machine Your machine will last longer if you clean it thoroughly after each day of work, especially water pump, water pan (which can be removed for easy cleaning), motor and blade flange. - Page 21 VERS. 2023.06.12 CM 350 B_MAN_EN Adjustment and replacement of the belts To adjust the belts: • Firstly, remove the belt guard on the left by unscrewing the 4 nuts. Also remove the jackshaft guard by unscrewing the 5 screws. • Loose the 2 bolts maintaining the jackshaft plate and the 4 bolts maintaining the motor plate.
- Page 22 VERS. 2023.06.12 CM 350 B_MAN_EN Maintenance of the motor...
-
Page 23: Faults: Causes And Cures
VERS. 2023.06.12 CM 350 B_MAN_EN 7 FAULTS: CAUSES AND CURES Fault-finding procedures Should any fault occur during the use of the machine, turn it off, and isolate it from the electrical supply. Any works dealing with the electrical system or supply of the machine can only be carried out by a qualified electrician. -
Page 24: Customer Service
VERS. 2023.06.12 CM 350 B_MAN_EN 7.3 Customer service When ordering spare parts, please mention: • The serial number (seven digits). • The code of the part. • The exact denomination. • The number of parts required. • The delivery address. •... -
Page 25: Spare Parts
VERS. 2023.06.12 CM 350 B_MAN_EN Spare parts In order to consult the spare parts lists, we invite you to visit the after-sales website of Norton Clipper by using the following address: https://spareparts.nortonabrasives.com For a quick access, you can also use the QR Code shown below using your mobile phone: This electronic catalogue provides exploded views and spare parts lists for different machines designed by Norton Clipper so you can find references you need. - Page 26 VERS. 2023.06.12 CM 350 B_MAN_EN...
- Page 27 VERS. 2023.06.12 CM 350 B_MAN_EN...
- Page 28 VERS. 2023.06.12 CM 350 B_MAN_EN...
