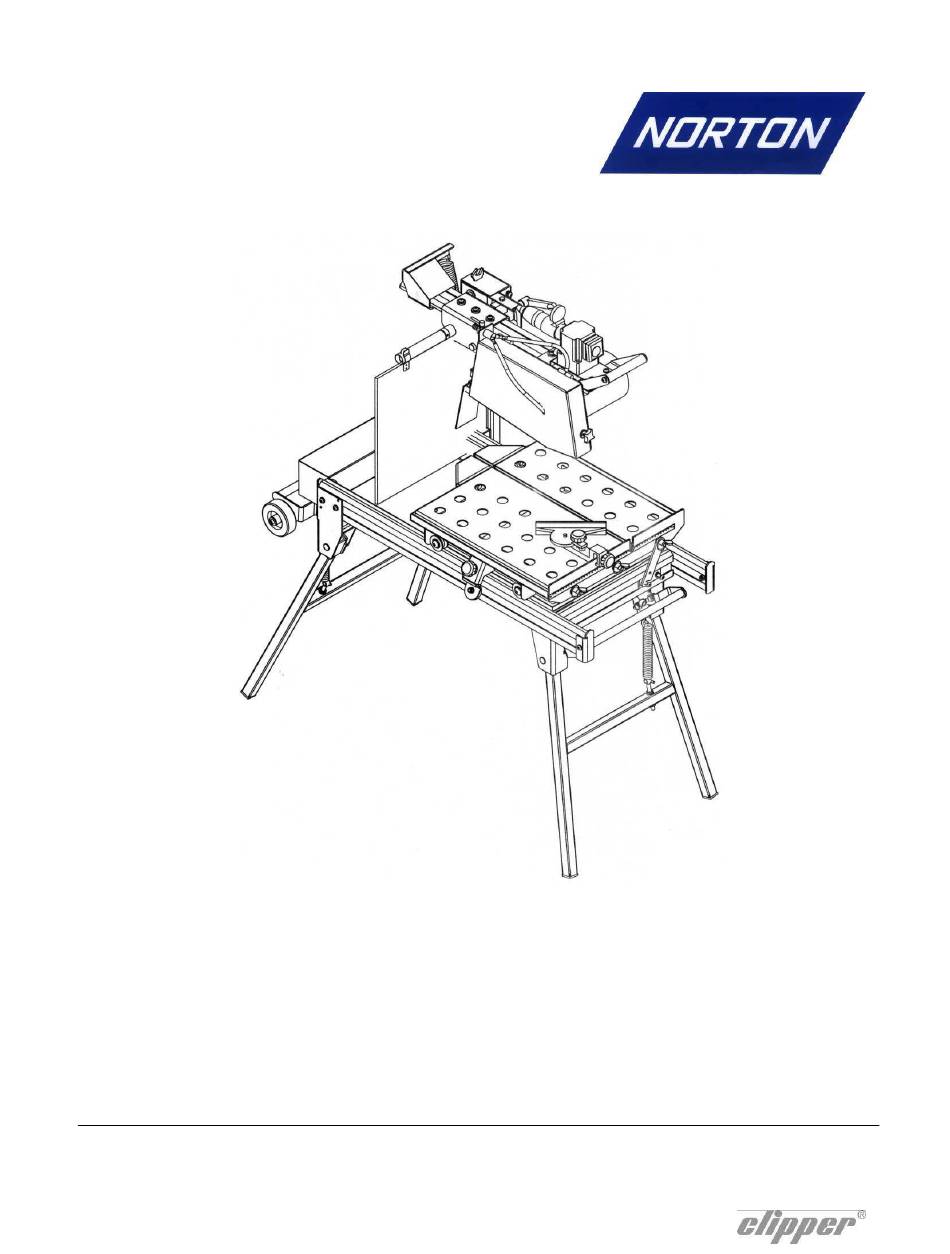

- Page 1 OPERATING INSTRUCTIONS...
- Page 3 Declaration of conformity The undersigned manufacturer: SAINT - GOBAIN ABRASIVES S.A. 190, BD J.F. KENNEDY L- 4930 BASCHARAGE Declares that this product: CHW 1.30.1 230V 70184614040 Masonry Saws: Code: 70184614039 is in conformity with the following Directives: • European Machinery Directive 2006/42/EC •...
-
Page 5: Table Of Contents
OPERATING INSTRUCTIONS AND SPARE PARTS LIST Basic Safety Instructions Symbols 1.2 Machine plate Safety instructions for particular operating phases Machine description Short description Layout Technical Data Assembly and commissioning Head locking Tool assembly Electrical connections Water cooling system Transport and storing Securing for transport Transport procedure Long period of inactivity... -
Page 6: Basic Safety Instructions
1 Basic Safety Instructions The CHW is exclusively designed for the cutting of construction products mainly on construction sites. Uses other than the manufacturer's instructions shall be considered as contravening the regulations. The manufacturer shall not be held responsible for any resulting damage. Any risk shall be borne entirely by the user. -
Page 7: Machine Plate
Immediately remove damaged or badly worn blades, as they endanger the operator whilst rotating. • Only fit NORTON diamond blades to the machine! The use of other tools can damage the machine! • Attention is drawn to the use of BS2092 safety goggles in conformity with specified Processes No.8 of the Protection of Eyes Regulation 1974, Regulation 2(2) Part 1. -
Page 8: Machine Description
As with all other NORTON products, the operator will immediately appreciate the attention given to detail and quality of materials used in construction. The machine and its component parts are assembled to high standards assuring long life and minimum maintenance. - Page 9 Built in aluminium profile, the frame is light and resistant. Cutting head (3) Jig-welded steel console. Console supports the electric motor and the blade guard. The balancing of the cutting head is achieved using a heavy-duty spring. A depth-locking device fixed to cutting head and frame enables the operator to set the cutting head to desired or to maximum cutting depth.
-
Page 10: Technical Data
2.3 Technical Data 2,2 kW 230V with thermal overload protection (99788 and 99789) Electric motor 1,5kW 115V with thermal overload protection (99993 and 99994) Electric motor protection IP54 Max. blade diameter 350 mm Bore 25,4 mm Rotation speed of the blade 2730 min Flange diameter 90 mm... -
Page 11: Assembly And Commissioning
Picture 1 : assembling the locking handle 3.2 Tool assembly Only NORTON blades with a maximum diameter of 350 mm can be used with the CHW. All tools used must be selected with regard to their maximum permitted cutting speed for the machine’s maximum permitted rotation speed. -
Page 12: Electrical Connections
3.3 Electrical connections Electrical connections Check that, • the voltage/phase supply corresponds to the information indicated on the motor plate. • Available power supply must have ground connection in conformity with safety regulations. • The connecting cables should have at least a 2.5mm -section per phase. -
Page 13: Transport Procedure
Picture 4 : unlocking of the anti-tipping device 4.2 Transport procedure The machine can be moved on a flat surface using its wheels. You must first fold away the feet. Lift the rear handle and push lightly on the rear foot of the machine with your foot. The foot of the machine will automatically fold away. - Page 14 5.2.1 Full depth or fixed cutting In full depth or fixed cutting, the cutting head is locked in a fixed position and the material is pushed into it as shown. • Lower the cutting head to the desired cutting depth (in “through cutting”, lower cutting head until blade periphery reaches max.
- Page 15 blade cool, running free and cutting at peak efficiency. 5.2.3 Cutting thicker material You can cut thicker material by reversing the material on the cart. In order to raise the head to pass the material under it, you have to turn the upper head stop from position 1 to position 2 as shown on the picture 5.
-
Page 16: Maintenance And Servicing
6 Maintenance and servicing To ensure a long-term quality from the cutting with the CHW, please follow the maintenance plan below: Whole machine Visual control (general aspect, watertightness) Clean Flange and blade fixing devices Clean Motor cooling fans Clean Water pump Clean Water pan Clean... -
Page 17: Faults: Causes And Cures
7 Faults: causes and cures Fault-finding procedures Should any fault occur during the use of the machine, turn it off, and isolate it from the electrical supply. Any works dealing with the electrical system or supply of the machine can only be carried out by a qualified electrician. -
Page 18: Circuit Diagram
Circuit diagram 230V Motor... - Page 19 115V-Motor...
-
Page 20: Customer Service
Spare parts for the motor can be ordered with the manufacturer of the motor or with their dealer, which is often quicker and cheaper. This machine has been manufactured by Saint-Gobain Abrasives S.A. 190, Bd. J.F.Kennedy L- 4930 BASCHARAGE Grand-Duché de Luxembourg. Tel. : 00352-50401-1 Fax : 00352- 50 16 33 http://www.construction.norton.eu e-mail: sales.nlx@saint-gobain.com... - Page 21 Tel : 0845 602 6222 e-mail: sales.nlx@saint-gobain.com Free fax : 0800 622 385 e-mail : nortondiamonduk@saint-gobain.com Czech Republic Norton Diamantove Nastroje Sro Germany Vinohrdadska 184 Saint-Gobain Diamond Products GmbH CS-13000 PRAHA 3 Birkenweg 45-49, Tel: 0042 0267 13 20 21...
- Page 23 SAINT-GOBAIN ABRASIVES 190, Bd. J. F. Kennedy L-4930 BASCHARAGE LUXEMBOURG Tel.: ++352 50401-1 Fax: ++352 501633 e-mail: sales.nlx@saint-gobain.com www.construction.norton.eu 06.11.2008...
