5. If required, click RESET TO DEFAULT to reset the changes made to a selected window
to their default parameters.
The window in the PiP mode is configured.
Configuring/Recalling a Preset
MV-4X enables storing up to 4 preset operation modes. By default, the preset is set to quad
mode. For each window select the video source and set the window parameters.
In the following example, in Preset 1 the windows are configured in a stacked mode.
Presets include the window position, routing state, window source, window layer, aspect ratio,
border and border color, rotation state and window state (enabled or disabled).
To set the inputs and outputs see:
•
Adjusting Input Parameters
•
Adjusting Output Parameters
To configure a preset mode window:
1. In the Navigation List, click AV Settings. The Matrix tab in the AV Settings page
appears (see
2. From the top menu bar, select Multi View.
3. Select the Preset mode (1 to 4). The Preset mode view appears and the gray indication
to the right of the Multi View mode turns green.
4. For each window you can:
▪
Set Display slider to enable the display of the selected window.
▪
Select the video source.
MV-4X – Using Embedded Web Pages
on page 28.
on page 30.
Figure 16).

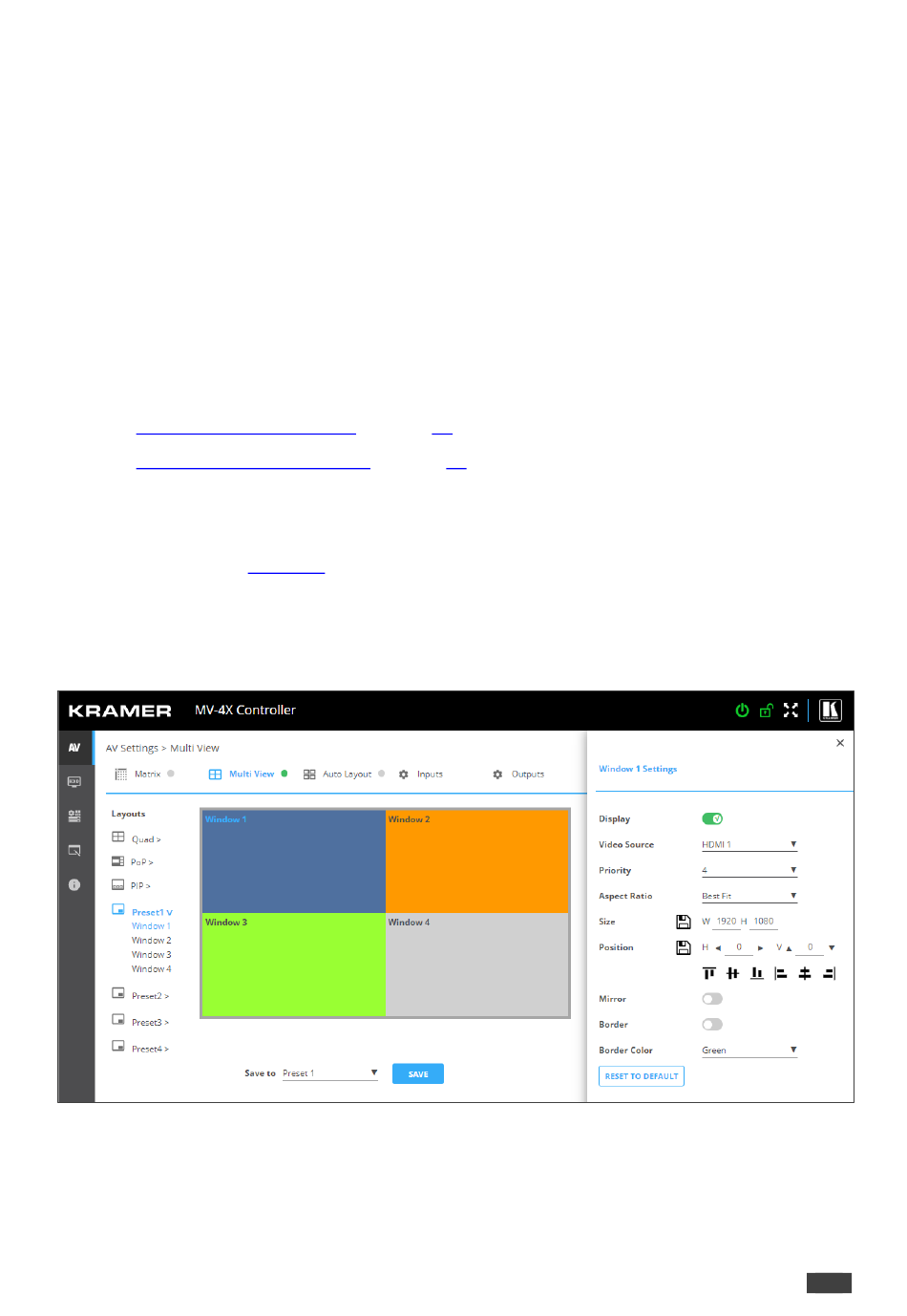

Figure 24: Multi View Tab – Preset Mode
