- Page 1 Kramer Electronics, Ltd. USER MANUAL Model: VS-42H 4x2 HDMI Matrix Switcher...
-
Page 2: Table Of Contents
Figure 4: Internet Protocol (TCP/IP) Properties Window Tables Table 1: Terminology Used in this User Manual Table 2: VS-42H 4x2 HDMI Matrix Switcher Front Panel Features Table 3: VS-42H 4x2 HDMI Matrix Switcher Rear Panel Features Table 4: Technical Specifications of the VS-42H... -
Page 3: Introduction
GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Downloadable from our Web site at http://www.kramerelectronics.com 3 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com 4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... -
Page 4: Quick Start
Getting Started Quick Start This quick start chart summarizes the basic setup and operation steps. KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview
) is a data-structure, provided by a display, to describe its capabilities to an HDMI source. The EDID enables the VS-42H to “know” what kind of monitor is connected to the output. The EDID includes the manufacturer’s name, the product type, the timing data supported by the display, the display size, luminance data and (for digital displays only) the pixel mapping data. -
Page 6: About Hdmi
High-Definition Multimedia Interface (HDMI) is an uncompressed all-digital audio/video interface, widely supported in the entertainment and home cinema industry. It delivers the highest high-definition image and sound quality. Note that Kramer Electronics Limited is an HDMI Adopter and an HDCP Licensee. In particular, HDMI •... -
Page 7: Recommendations For Best Performance

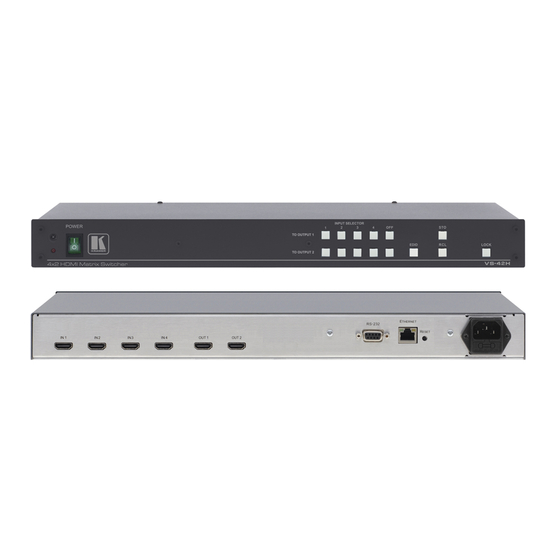

Protocol (TCP/IP) Your VS-42H 4x2 HDMI Matrix Switcher illustrates the front and rear panels of the VS-42H. Figure 1 Table 2 define the front and rear panels of the VS-42H, respectively. Table 3... -
Page 8: Figure 1: Vs-42H 4X2 Hdmi Matrix Switcher
Your VS-42H 4x2 HDMI Matrix Switcher Figure 1: VS-42H 4x2 HDMI Matrix Switcher KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 9: Table 2: Vs-42H 4X2 Hdmi Matrix Switcher Front Panel Features
Your VS-42H 4x2 HDMI Matrix Switcher Table 2: VS-42H 4x2 HDMI Matrix Switcher Front Panel Features Feature Function IR Receiver The red LED lights when receiving signals from the Infra-red remote control transmitter POWER Switch Illuminated switch for turning the unit ON or OFF... -
Page 10: Installing The Vs-42H In A Rack
Installing the VS-42H in a Rack Installing the VS-42H in a Rack This section provides instructions for rack mounting the unit. KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 11: Connecting A Vs-42H 4X2 Hdmi Matrix Switcher
HDMI input to route to the outputs. 1 Switch OFF the power on each device before connecting it to your VS-42H. After connecting your VS-42H, switch on its power and then switch on the power on each device... -
Page 12: Figure 2: Connecting A Vs-42H 4X2 Hdmi Matrix Switcher
Connecting a VS-42H 4x2 HDMI Matrix Switcher Figure 2: Connecting a VS-42H 4x2 HDMI Matrix Switcher KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 13: Operating The Vs-42H
Operating the VS-42H Operating the VS-42H This section describes how to: • Acquire the EDID (see section 7.1) • Store and recall a setting (see section 7.2) • Control the machine via RS-232 (see section 7.3) • Control the machine via the ETHERNET port (see section 7.4) -
Page 14: Storing And Recalling A Setting
Operating the VS-42H 5. Press the LOCK button. The INPUT buttons blink in sequence until the EDID is acquired. To reset to the default EDID, disconnect the outputs and repeat the above steps. Storing and Recalling a Setting You can use the STO and RCL buttons to store the current setup and then recall it. -
Page 15: Connecting A Pc
7.4.1 Connecting the ETHERNET Port directly to a PC (Crossover Cable) You can connect the Ethernet port of the VS-42H to the Ethernet port on your PC, via a crossover cable with RJ-45 connectors. This type of connection is recommended for identification of the factory default IP Address of the VS-42H during the initial configuration 1 After connecting the Ethernet port, you have to install and configure your Ethernet Port. -
Page 16: Figure 3: Local Area Connection Properties Window
Operating the VS-42H After connecting the Ethernet port, configure your PC as follows: 1. Right-click the My Network Places icon on your desktop. 2. Select Properties. 3. Right-click Local Area Connection Properties. 4. Select Properties. The Local Area Connection Properties window appears. -
Page 17: Connecting The Ethernet Port Via A Network Hub (Straight-Through Cable)
1 Specifications are subject to change without notice 2 Set the EDID to support the audio format 3 For best results, use Kramer cables such as the C-HM/HM series, the C-HM/DM series and/or our HDMI over fiber optics C-FOHM/FOHM series... -
Page 18: Edid Factory Default Data
960p at 85Hz - VESA STD 1360 x 765p at 85Hz - VESA STD 1024 x 768p at 85Hz - VESA STD x 600p at 85Hz - VESA STD x 480p at 85Hz - VESA STD KRAMER: SIMPLE CREATIVE TECHNOLOGY... - Page 19 EDID Factory Default Data EIA/CEA-861 Information Revision number IT underscan Not supported Basic audio Supported YCbCr 4:4:4 Not supported YCbCr 4:2:2 Not supported Native formats Detailed timing #1 1920x1080i at 60Hz (16:9( Modeline "1920x1080" 74.250 1920 2008 2052 2200 1080 1084 1094 1124 interlace +hsync +vsync Detailed timing #2 1920x1080i at 50Hz (16:9( Modeline...
-
Page 20: 10 Kramer Protocol 2000
Kramer Protocol 2000 10 Kramer Protocol 2000 The VS-42H is compatible with Kramer’s Protocol 2000 (version 0.50) (below). This RS-232/RS-485 communication protocol uses four bytes of information as defined below. For RS-232, a null-modem connection between the machine and controller is used. The default data rate is 9600 baud, with no parity, 8 data bits and 1 stop bit. -
Page 21: Table 6: Instruction Codes For Protocol 2000
Kramer Protocol 2000 Table 6: Instruction Codes for Protocol 2000 Note: All values in the table are decimal, unless otherwise stated. INSTRUCTION DEFINITION FOR SPECIFIC INSTRUCTION NOTE DESCRIPTION INPUT OUTPUT SWITCH VIDEO Set equal to video input which is to... - Page 22 1. Any product which is not distributed by us or which is not purchased from an authorized Kramer dealer. If you are uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site www.kramerelectronics.com.
- Page 23 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
