Mirror the image horizontally using the Mirror slider.
▪
Enable a border around the window using the Border slider.
▪
Select the Border Color from the drop-down box.
5. If required, click RESET TO DEFAULT to reset the changes made to a selected window
to their default parameters.
The window in the PoP mode is configured.
Configuring PiP Operation Mode
In the PiP mode, up to 4 windows are displayed on each output: one window in the
background and up to 3 smaller windows to the right. For each window select the video
source and set window parameters.
To set the inputs and outputs in the PiP mode see:
•
Adjusting Input Parameters
•
Adjusting Output Parameters
To configure a PiP mode window:
1. In the Navigation List, click AV Settings. The Matrix tab in the AV Settings page
appears (see
2. From the top menu bar, select Multi View.
3. Select the PiP mode. The PiP mode view appears and the gray indication to the right of
the Multi View mode turns green.
MV-4X – Using Embedded Web Pages

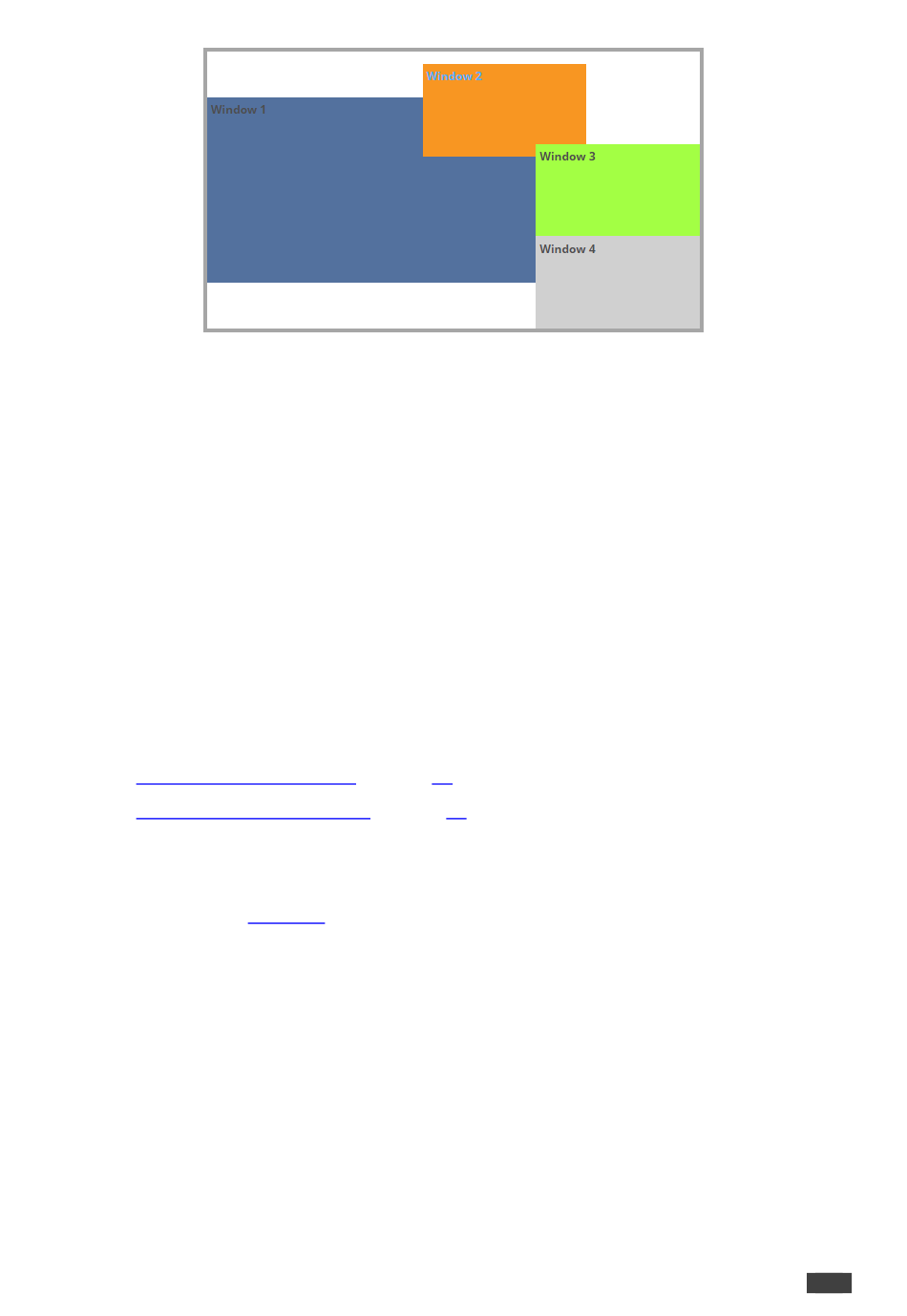

Figure 21: PoP Mode – Setting the Position of a Window
on page 28.
on page 30.
Figure 16).
