Scan for full manual
Step 1: Check what's in the box
MTX3-88-SE
8X8 Seamless Matrix Switcher

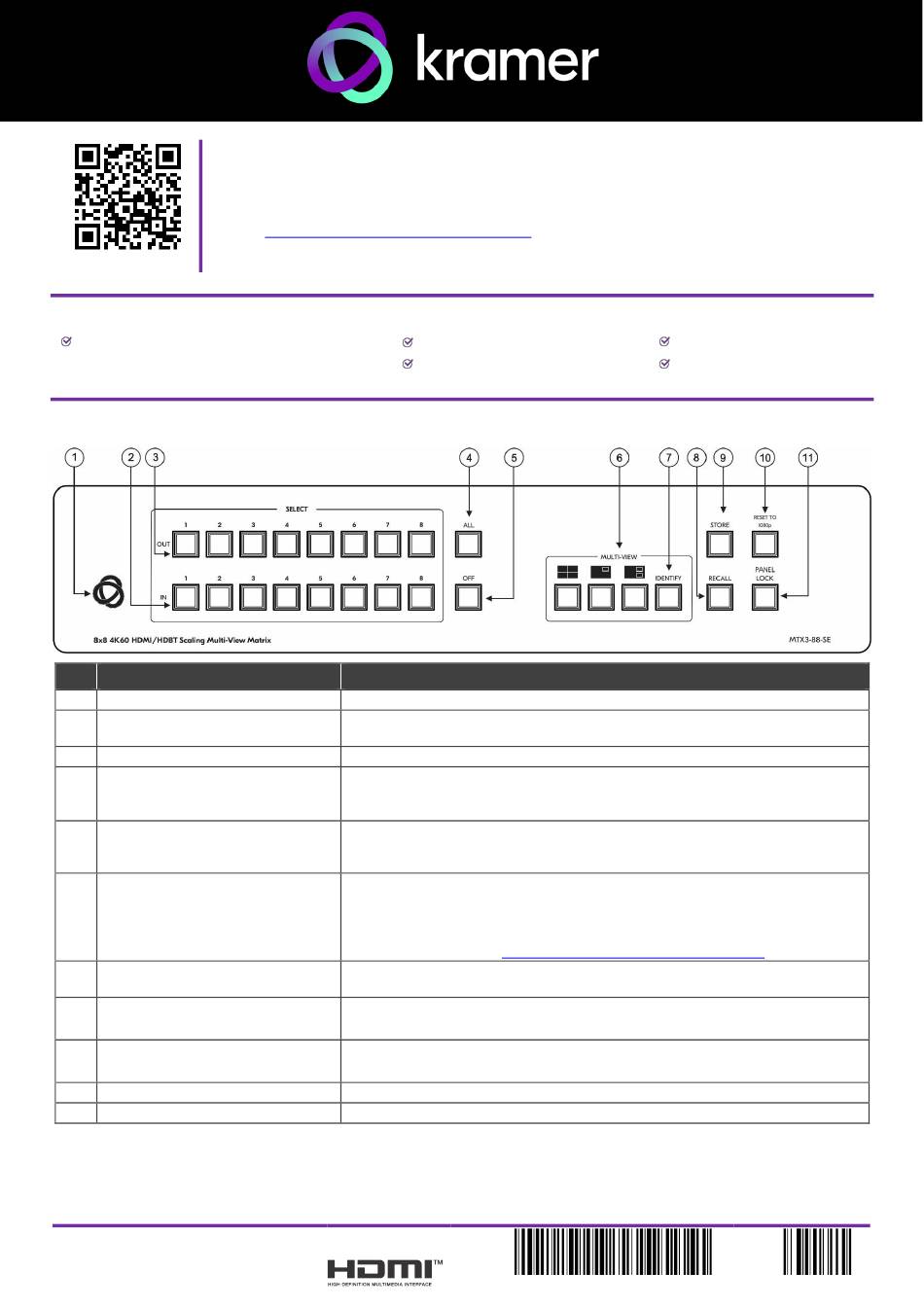

Step 2: Get to know your MTX3-88-SE
#
Feature
1
ON LED (behind the logo)
2
IN SELECT Buttons (1 to 8)
3
OUT SELECT Buttons (1 to 8)
4
ALL Button
5
OFF Button
6
MULTI-VIEW
7
IDENTIFY Button
8
RECALL Button
9
STORE Button
10
RESET TO 1080p Button
11
PANEL LOCK Button
MTX3-88-SE Quick Start
MTX3-88-SE Quick Start Guide
This guide helps you install and use your
Go to
www.kramerav.com/downloads/MTX3-88-SE
firmware upgrades are available.
Function
On when power is supplied to the unit.
Press to select the input to switch after selecting an output (also used for storing
matrix presets).
Press to select an output to which the input is routed.
Press followed by an input button selection to connect the selected input to all
outputs.
For example, press ALL and then press IN 2. Input 2 is routed to all outputs.
Press after pressing an output button to disconnect the selected output from the
inputs.
To disconnect all the outputs, press ALL followed by OFF.
Press once to enable one of the MULTI-VIEW modes (button LED lights): 1 X PIP,
2 X PIP, or Quad.
Press any lit MULTI-VIEW button to return to Matrix mode (enabled by default,
button LED turns off).
For more details, refer to
After pressing this button, the multi-view window number is displayed via OSD (On
Screen Display) for about 10 seconds within each multi-view window
Press to recall a preset configuration: Recall a stored preset from any of the 8
presets via the front panel input buttons (1 to 8).
Press to store a configuration: Store 8 presets via the front panel input buttons
(1 to 8).
Press and hold button for about 2 sec to set output resolution to 1080p.
Press and hold to toggle the locking/release of the front panel buttons.
MTX3-88-SE
for the first time.
to download the latest user manual and check if
1 Set of rack ears
1 Power Cord
Step 4: Defining Multi-View operation
P/N: 2 9 0 0 - 3 0 1 6 4 4 QS
4 Rubber feet
1 Quick Start Guide
modes.
Rev: 1
