Kramer MTX3-16-M Quick Start Manual

Flexible i/o digital matrix switcher
Hide thumbs Also See for MTX3-16-M:

Advertisement

Quick Links

Scan for full manual
Step 1: Check what's in the box
MTX3-16-M Flexible I/O Digital Matrix Switcher
2 Power cords

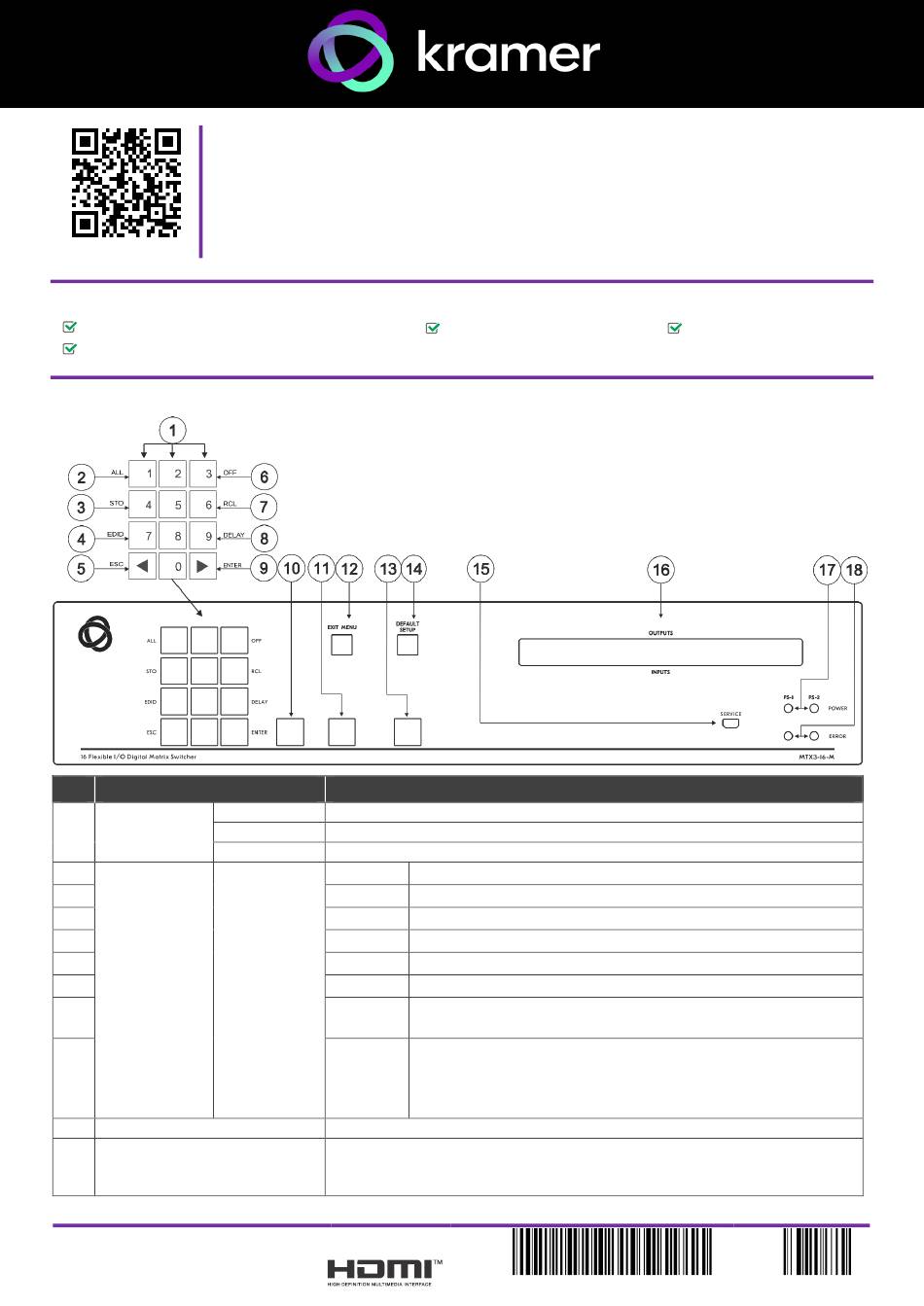

Step 2: Get to know your MTX3-16-M
#
Feature
1
Numeric
Numbers
Keypad
◄ (Backward)
► (Forward)
2
Double-Function
Menu Button
3
Selector Buttons
Function
4
Area.
5
Enabled and lit
after pressing
6
the MENU
7
4 times.
button
8
9
10
TAKE Button
11
MENU Button
MTX3-16-M Quick Start
MTX3-16-M
Quick Start Guide
This guide helps you install and use your
Go to
www.kramerav.com/downloads/MTX3-16-M
firmware upgrades are available.
Function
1 to 0
Move the LCD display left (when there is an extended display).
Move the LCD display right (when there is an extended display).
ALL
STO
EDID
ESC
OFF
RCL
DELAY
ENTER
Confirm action.
Enable the ALL, STO, EDID, ESC, OFF, RCL, DELAY and ENTER buttons.
Press again to enter the configuration menu.
When in a menu, press to cycle through the menu items.
MTX3-16-M
for the first time.
to download the latest user manual and check if
1 Set of rack ears (attached)
Connect an input to all outputs.
Store the current setup in a preset.
Assign EDID channels.
Exit the current operation.
Turn off an output.
Recall a preset.
Set the delay between confirming an action and the execution of the
action on an output port.
Confirm the input-output setup when using a one-digit number instead
of two digits. For example, to enter input 5, you can press either 05 or
5, ENTER.
Press to enter the options in a setup menu.
P/N: 2 9 0 0 - 3 0 1 5 9 7 QS
1 Quick start guide
Rev: 2

Advertisement

loading
Need help?

Need help?

Do you have a question about the MTX3-16-M and is the answer not in the manual?

Questions and answers

Summary of Contents for Kramer MTX3-16-M

  • Page 1 Step 1: Check what’s in the box MTX3-16-M Flexible I/O Digital Matrix Switcher 1 Set of rack ears (attached) 1 Quick start guide 2 Power cords Step 2: Get to know your MTX3-16-M Feature Function Numeric Numbers 1 to 0 Keypad ◄...
  • Page 2 MTX3-16-M ID numbers When a card module is inserted into MTX3-16-M, it is allocated 2 ID numbers which are used to identify the card’s input/output ports. In total there are 16 ID numbers available, 2 for each inserted card. The ID numbers available for each slot are written on the chassis, next to the insertion points.
  • Page 3 Insert the input and output cards into the card slots and then connect the inputs and the outputs. You can insert cards into slots while the device is powered. For optimum range and performance use the recommended Kramer cables available at www.kramerav.com/product/MTX3-16-M.
  • Page 4 Step 7: Operate the MTX3-16-M RS-232 Control / Protocol 3000 Operate MTX3-16-M via: • Baud Rate: 115,200 Parity: None Front panel buttons. • Data Bits: Command Format: ASCII Embedded web pages over the Ethernet. The first time you enter, you will be asked to Stop Bits: set a new password.
