Fastlane Pro Swim Unit Installation
®

WALL MOUNT BRACKET

Section 4
Note: Please read instructions fully prior to installing the wall mount bracket.
4.A. Gunite Pool
If the pool being constructed is gunite, please follow the instructions below.
The Wall Mount Fastlane Pro Mounting Kit for Gunite pools includes the following:
(refer to Fig 4.1)
(1) PVC Wall Bracket
(2) Bonding Clamp
(2) 3/8" (9,5mm) Stainless Steel Threaded Mounting Rod
(6) 3/8" (9,5mm) Stainless Steel Jam Nut
(6) 3/8" (9,5mm) Stainless Steel Flat Washer
(2) 3/8" (9,5mm) Stainless Steel Lock Washer
(2) 1-1/2" (38mm) Thru-Wall Fitting
(2) 1-1/2" (38mm) MPT x 1" (25mm) FPT Bushing Reducer
(2) 1" (25mm) Liquid Tight Fitting

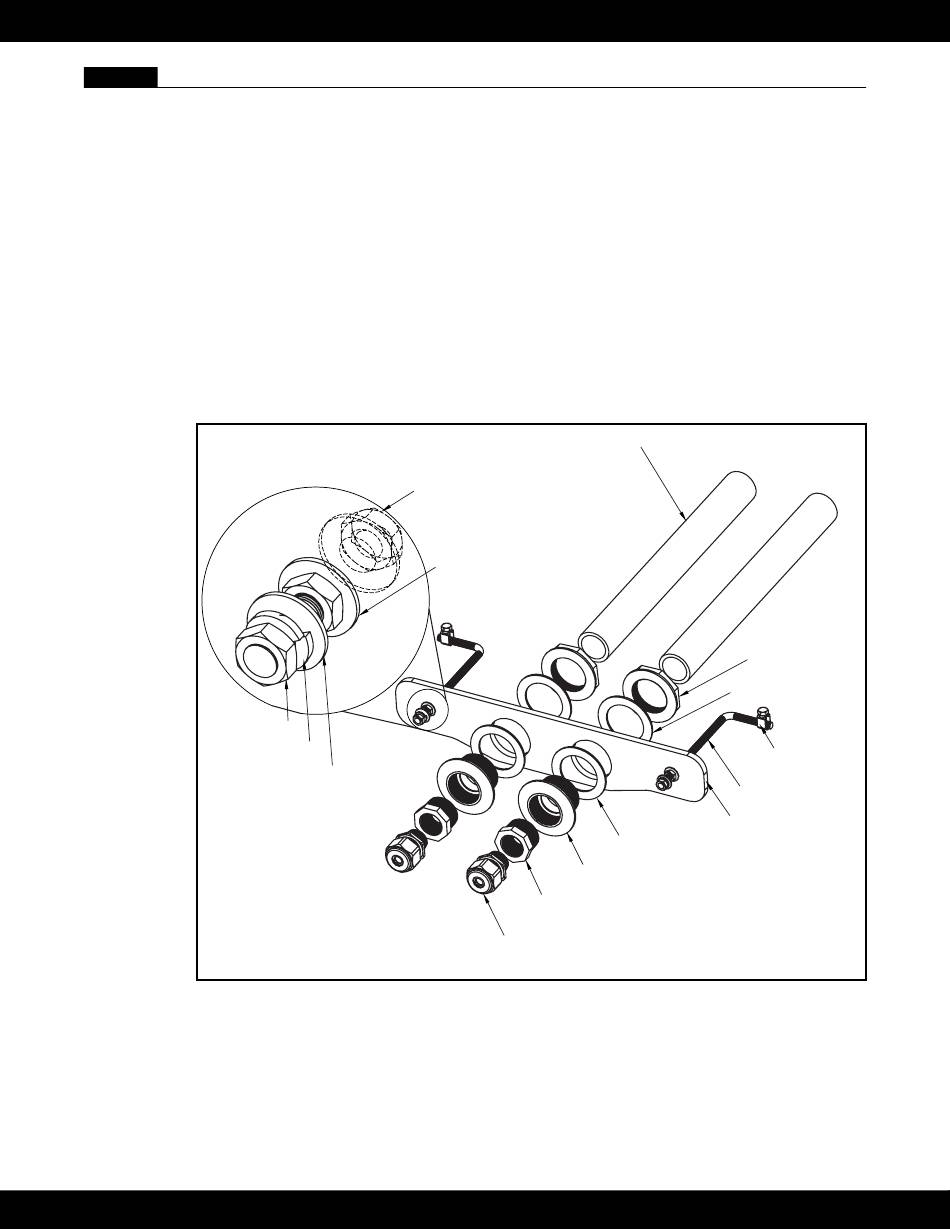

Fig. 4.1
Secure the thru-wall fittings to the bracket as shown in Fig 4.1. The rubber gasket should be between the
thru-wall and the bracket on the poolside of the bracket and the cork gasket should be between the bracket
and the locknut on the outside. Tighten the lock nut with a pair of channel locks or strap wrench.
9
Jam Nut
Lock Washer
Flat Washer
1-1/2" (38mm) PVC Flex
(Supplied By Others)
Flat Washer/Jam Nut
(Back Of Bracket)
Flat Washer/Jam Nut
(Front Of Bracket)
Thru-Wall Fitting
1-1/2" (38mm) x 1" (25mm)
Bushing Reducer
1" (25mm)
Liquid Tight Fitting
Thru-Wall Fitting
Lock Nut
Cork Gasket
Bonding Clamp
Threaded Rod
Wall Bracket
Rubber Gasket
