Section 10

INSTALLATION OF THE HYDRAULIC POWER UNIT

10.1 Placement Considerations: The Power Unit should be placed on a flat, level surface. If placing outside,
it is recommended the Outdoor Power Unit Weather Guard be purchased (see Fig 10.1), but should not
be subject to driving rain. If placing indoors and at a level below the pool deck, such as a basement, a
floor drain is mandatory to accommodate the unlikely event of a hole developing in the hydraulic hose
creating a siphon. Whether placed indoors or out, this is an air-cooled unit and must have ample venti-
lation. Therefore, a minimum of 12" (30cm) air space must be provided on all sides of the Power Unit
motor. In addition, while frequent access is not required, it is imperative the Power Unit is accessible.
Access to the Power Unit Controller is essential.

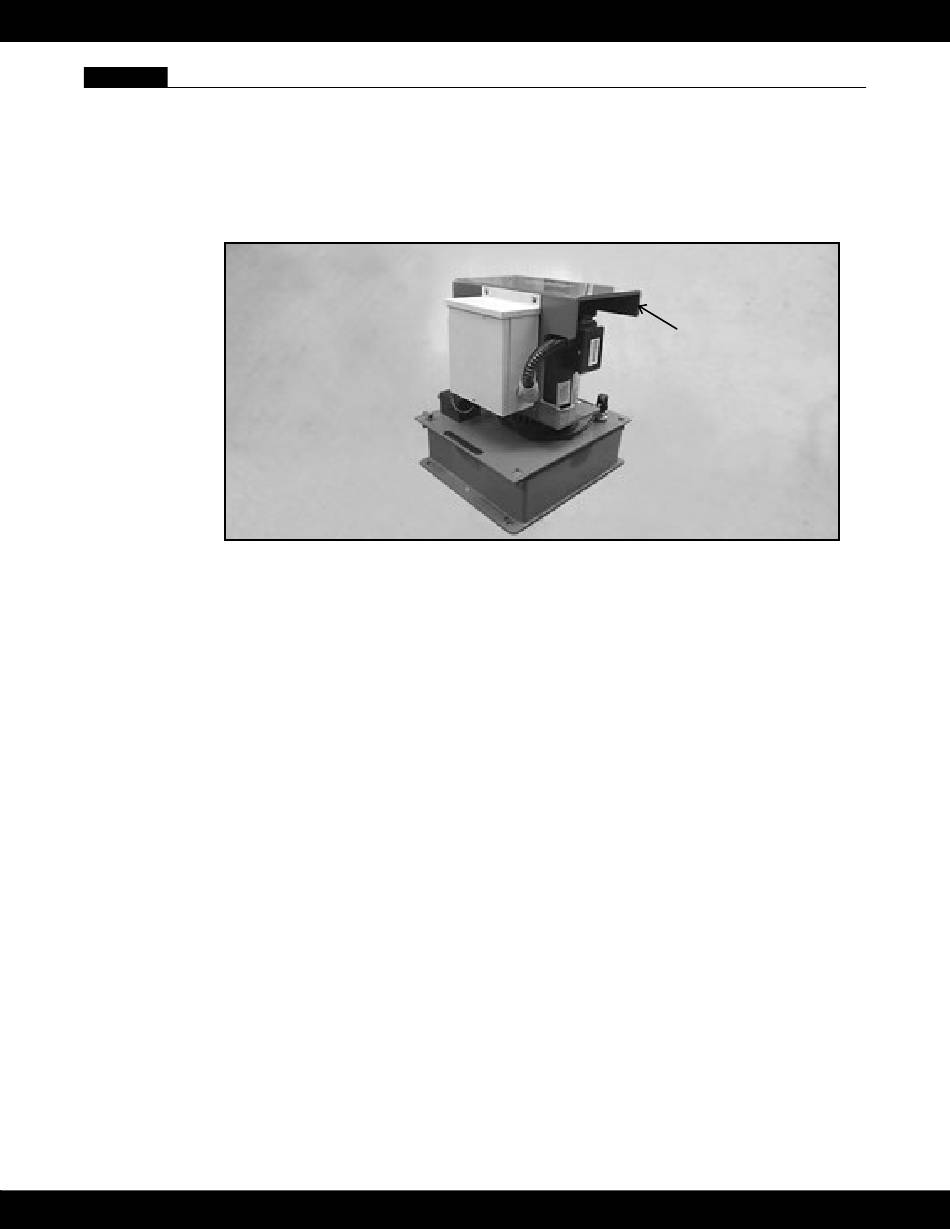

Fig. 10.1
10.2 Carefully remove the Power Unit from the packaging. Note: The Power Unit is very heavy. To remove
the Power Unit open box top flaps, lay box on its side, open box bottom flaps, and slide the Power
Unit out of the box sideways on the bottom foam.
10.3 Place the Power Unit in the selected position and verify that the hose connections are pointed in the
direction you desire.
10.4 Have an electrician make the electrical connections using the whip provided. Make this connection
by hard wiring to a disconnect or using an appropriate lock tight plug and socket. The Power Unit
requires a single-phase 220V 30-amp GFCI (32-amp RCD) protected power supply. Verify the incom-
ing voltage and wiring. Refer to the wiring diagram in Section 11A for 60Hz wiring connections and
Section 11B for 50Hz wiring connections. The white wire will not be used in 50Hz applications
