Setting The Minimum Steering Travel - Multiplex PROFI CAR 403 Operating Instructions Manual

Accepting the trim is a practical and useful facility. For example, if
you suffer a „slight crash" which knocks the basic setting out, you
can quickly and simply regain the full trim range.

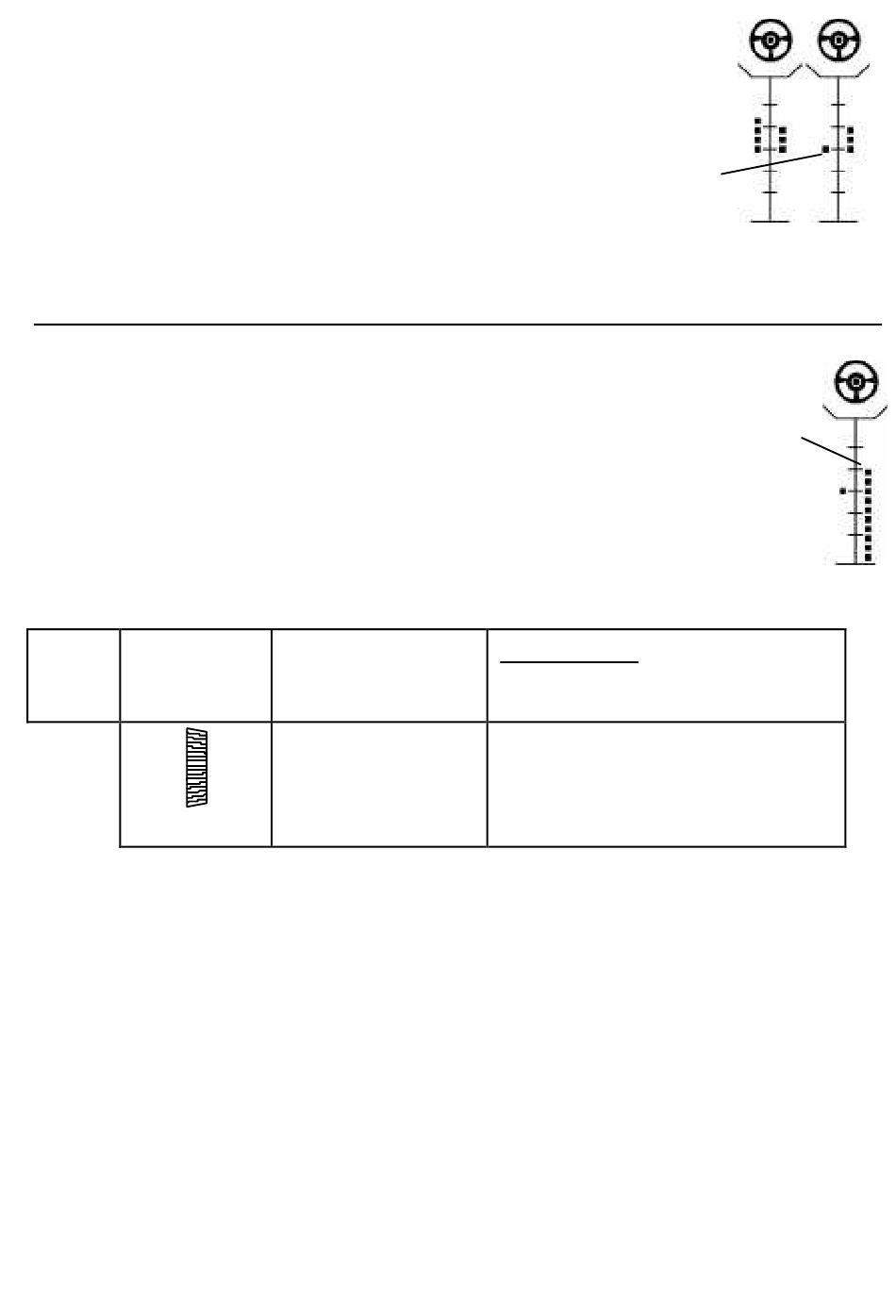

The diagram on the right shows the screen display before and after
accepting the trim setting. On the left the centre is offset by 3 steps,
while on the right the setting has been accepted, and the trim
display is back to centre. If you have selected, say, 3% as the trim
increment when trimming the steering centre SC, this means that
„CENTRE" is offset by 9% (3 increments of 3%).
3.4.

Setting the minimum steering TRAVEL

During a race you can alter the steering travel with the digi-adjustor, so that it is
always accurately matched to the track you are using.
Please note : this only works if the screen shows the operating display!
The actual steering travel you have set is shown by the bar on the far right of
the screen. In our example 2/3 of the maximum possible range is available
between minimum and maximum.
To avoid the possibility of reducing steering travel to zero, you can at this
point set a value for the extent to which steering travel can be reduced using
the digi-adjustor, i.e. you can fix the minimum steering travel. The
adjustment range is 30% to 100%.
L
TRAVEL TRAVEL
'
TIP !
Set the maximum steering travel by adjusting the basic mechanical set-up of the
steering servo (see 3.1).
Make adjustments in the „
'
TIP !
The rate at which the digi-adjustor affects the steering travel is determined by the
increment size.
Make adjustments in the „
Search for
menu point
Set travel
(e.g.: 72%)
T
" menu, menu point „S-TRAVEL", servo 1.
T
" menu, menu point „STEP", „STV"
20
TRAVEL
72
%
Range:
Increment:
Default setting:
30% to 100%
1% to 10%%
44% travel
2% increment
