Figure A-2, View Of 1264C With Rack Mount Option; Table A-6, Backplane; Table A-7, Mechanical - Eads Racal Instruments 1264C Manual

1264C User Manual
Characteristic
Bus Grant/Interrupt Acknowledge
VXIbus CLK10 Distribution
Characteristic
Overall Dimensions
Standard Mainframe (7U)
Height
Width
Depth
Weight

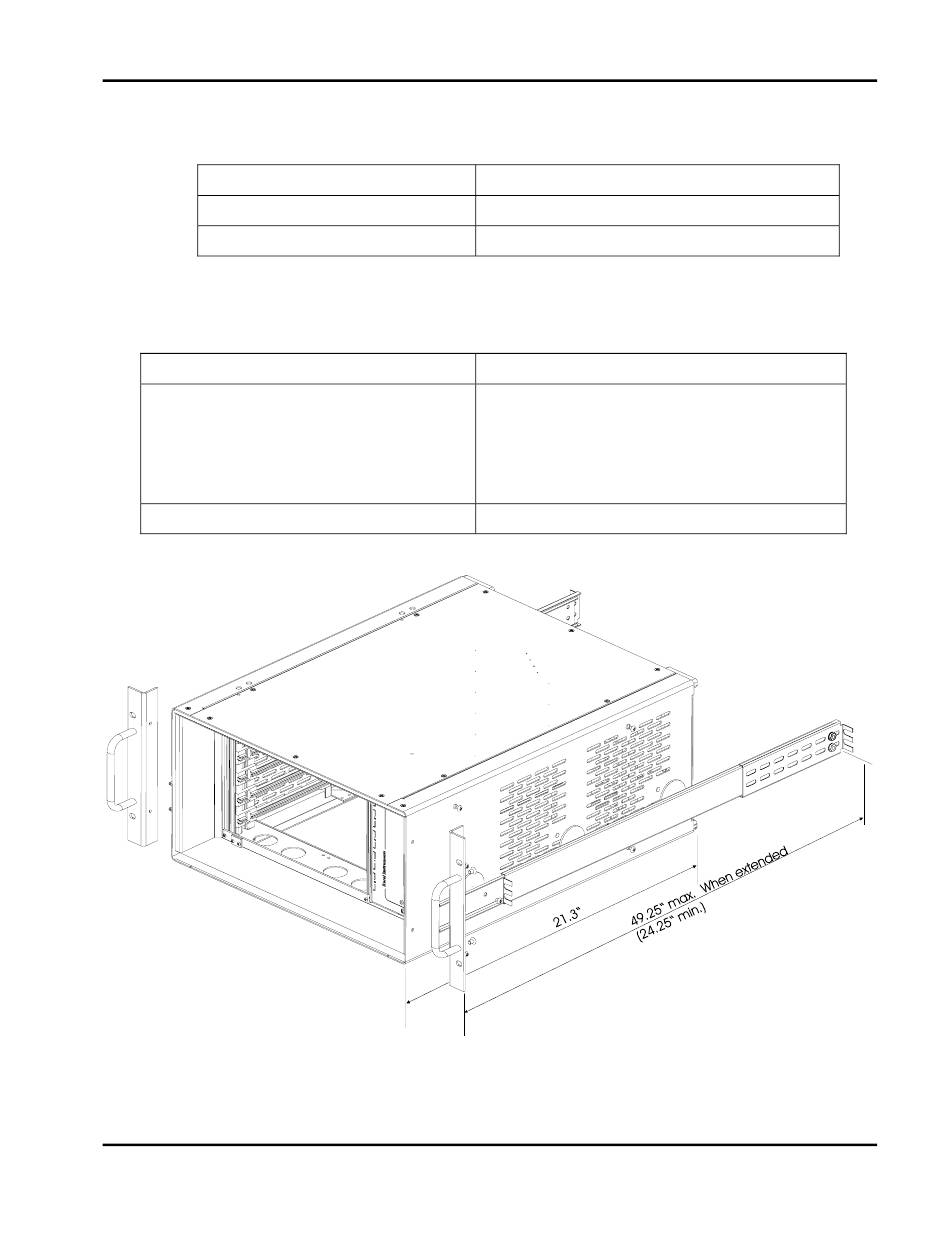

Figure A-2, View of 1264C With Rack Mount Option

EADS North America Defense
Test and Services, Inc. © 1998
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Table A-6, Backplane

Solid state, auto-configuring (jumper less)

Table A-7, Mechanical

16.75 in (42.6 cm)
8.7 in (22.1 cm)
21.3 in (54.1 cm)
27 lbs. (12.3 kg) with no modules installed
Description
Full differential
Description
Specifications A-5
