1264C User Manual
6 screws
EADS North America Defense
Test and Services, Inc. © 1998
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
1. Unplug the AC power cord from the rear panel of the
1264C and remove the rear panel/fan assembly following
the instructions from Removal and Replacement of The
Fan Assembly, above
2. Disconnect the in-line connector (J301/P301) by grasping
each mating half and gently pulling apart.
3. Disconnect (J300/P300).
4. Loosen the four screws which secure the power supply
front panel to the mainframe. Loosen the fourteen screws
at E1 to E14 which secure the power supply to the
backplane (405130).
retaining screws

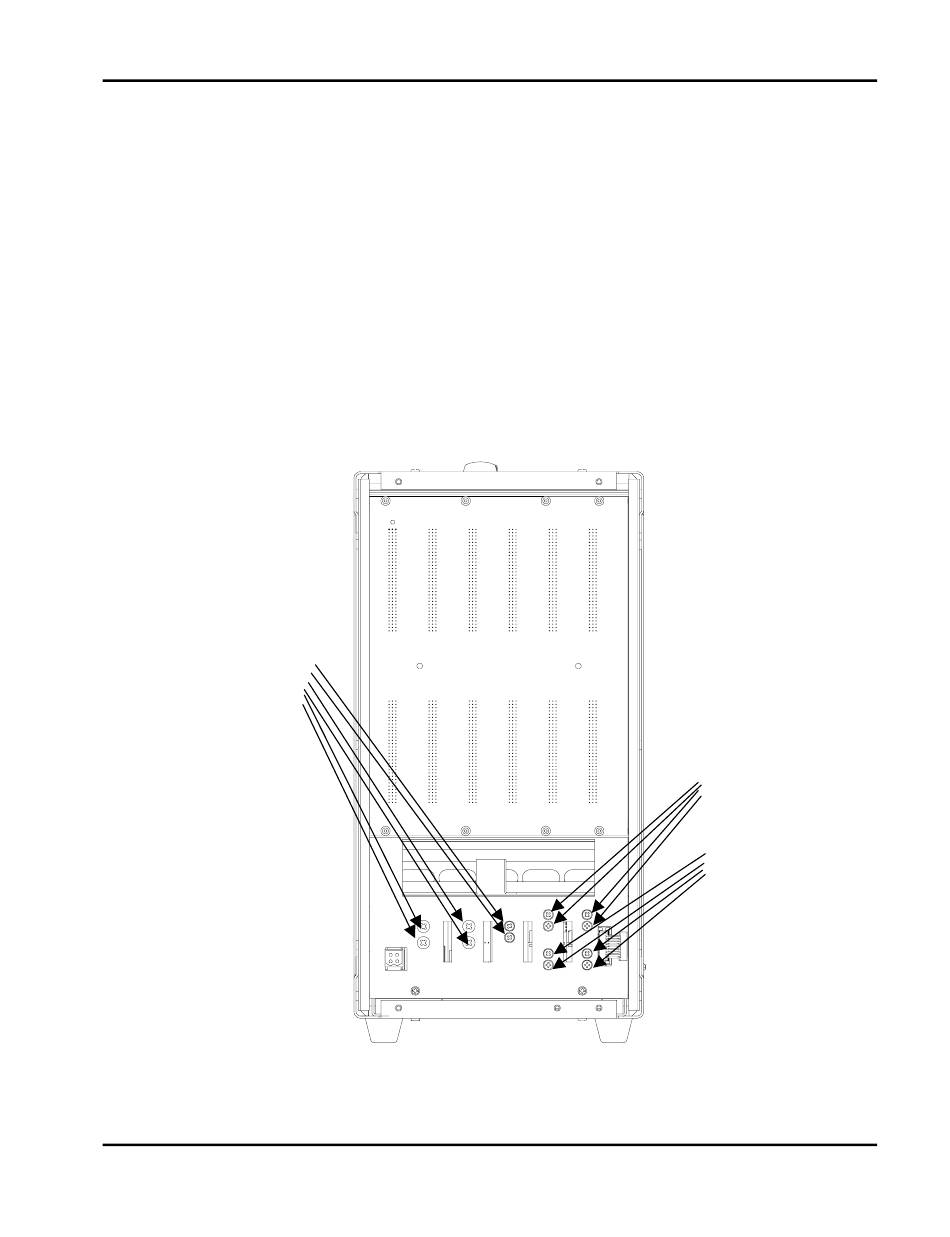

Figure 5-4, Loosening The 14 Screws

See Figure 5-3 for locations
4 screws
4 screws
Maintenance 5-7
