Connecting
Chassis Ground
EADS North America Defense
Test and Services, Inc. © 1998
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Connect the Chassis (Safety) Ground to an earth or the ground of
one or more instruments in the system. This ensures a common
ground connection between instruments.
1. Connect a 16 AWG (1.3mm² or larger) wire to the 8-32
chassis (safety) grounding screw using a toothed
grounding lug. The wire insulation must be green with a
yellow stripe or non-insulated (bare wire).
2. Attach the opposite end of the wire to permanent earth
ground earth (or to the ground of one or more instruments
in the system) using toothed washers or a toothed lug.

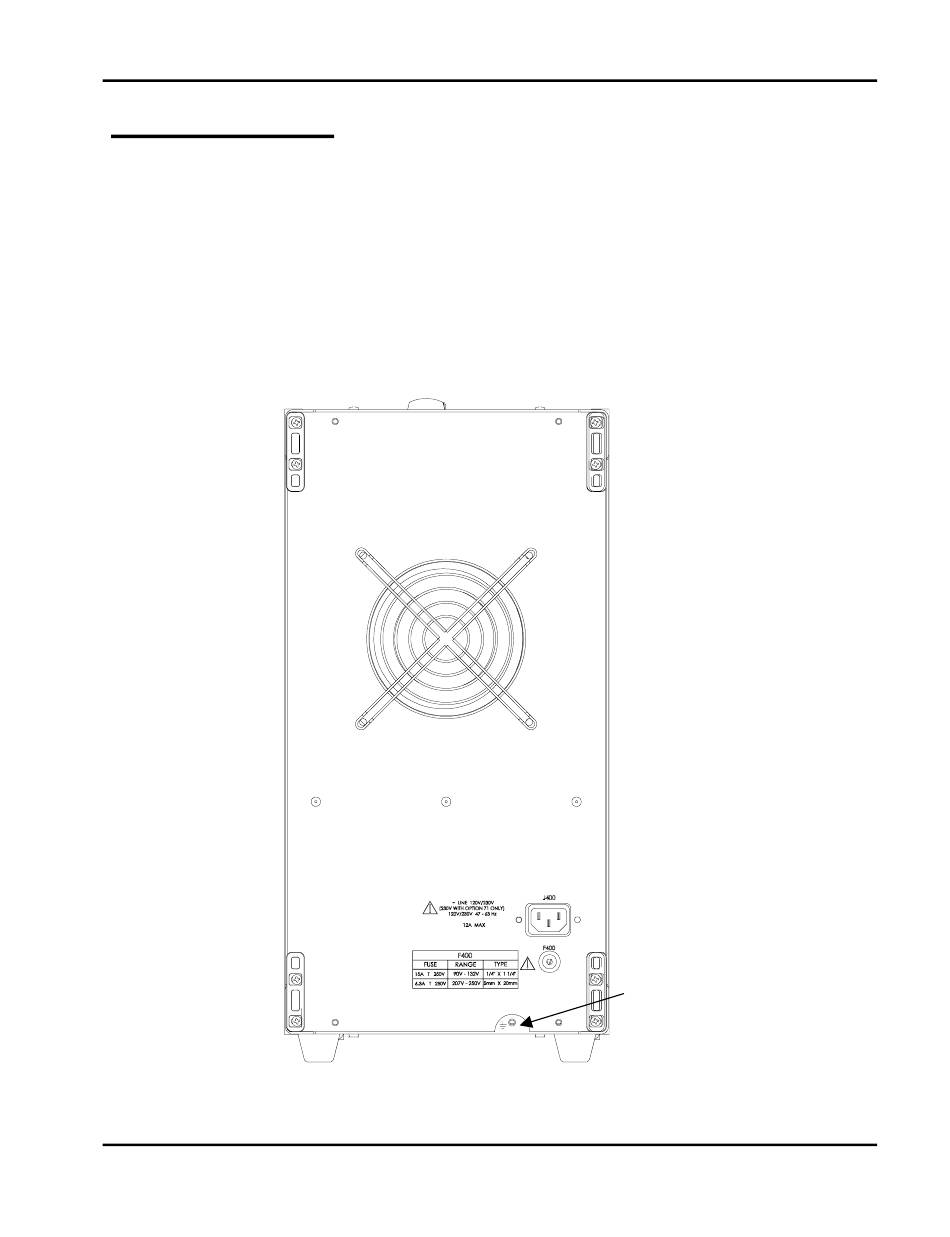

Figure 2-3, Connecting Safety Ground

Chassis (Safety)
Grounding Screw
Configuring The 1264C 2-5
