Watts Usable Dc Power; Figure 1-4, 1264C 500 Watt Modular Power Supply; Table 1-1, 1264C Available Dc Current - Eads Racal Instruments 1264C Manual

1264C User Manual
500 Watts Usable
DC Power

Figure 1-4, 1264C 500 Watt Modular Power Supply

EADS North America Defense
Test and Services, Inc. © 1998
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

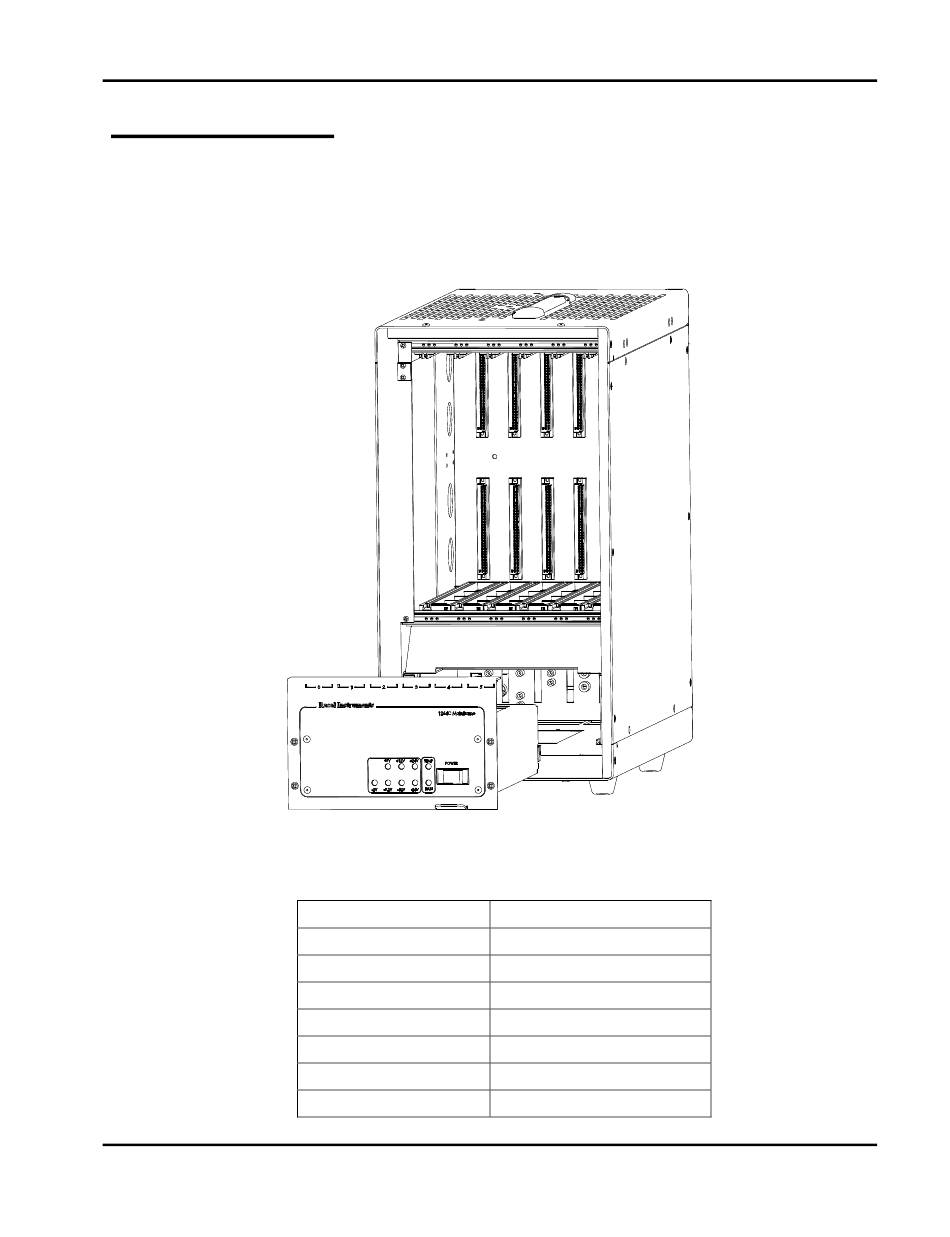

Figure 1-4 depicts the 1264C mainframe's 500Watt modular
power supply. Table 1-1 lists the available DC current for each
VXI voltage.

Table 1-1, 1264C Available DC Current

VXI Voltage
+5V
-5.2V
-2V
+12V
-12V
+24V
-24V
Available DC Current
45 Amps
30 Amps
15 Amps
8 Amps
8 Amps
4 Amps
4 Amps
Getting Started 1-5
