1264C User Manual

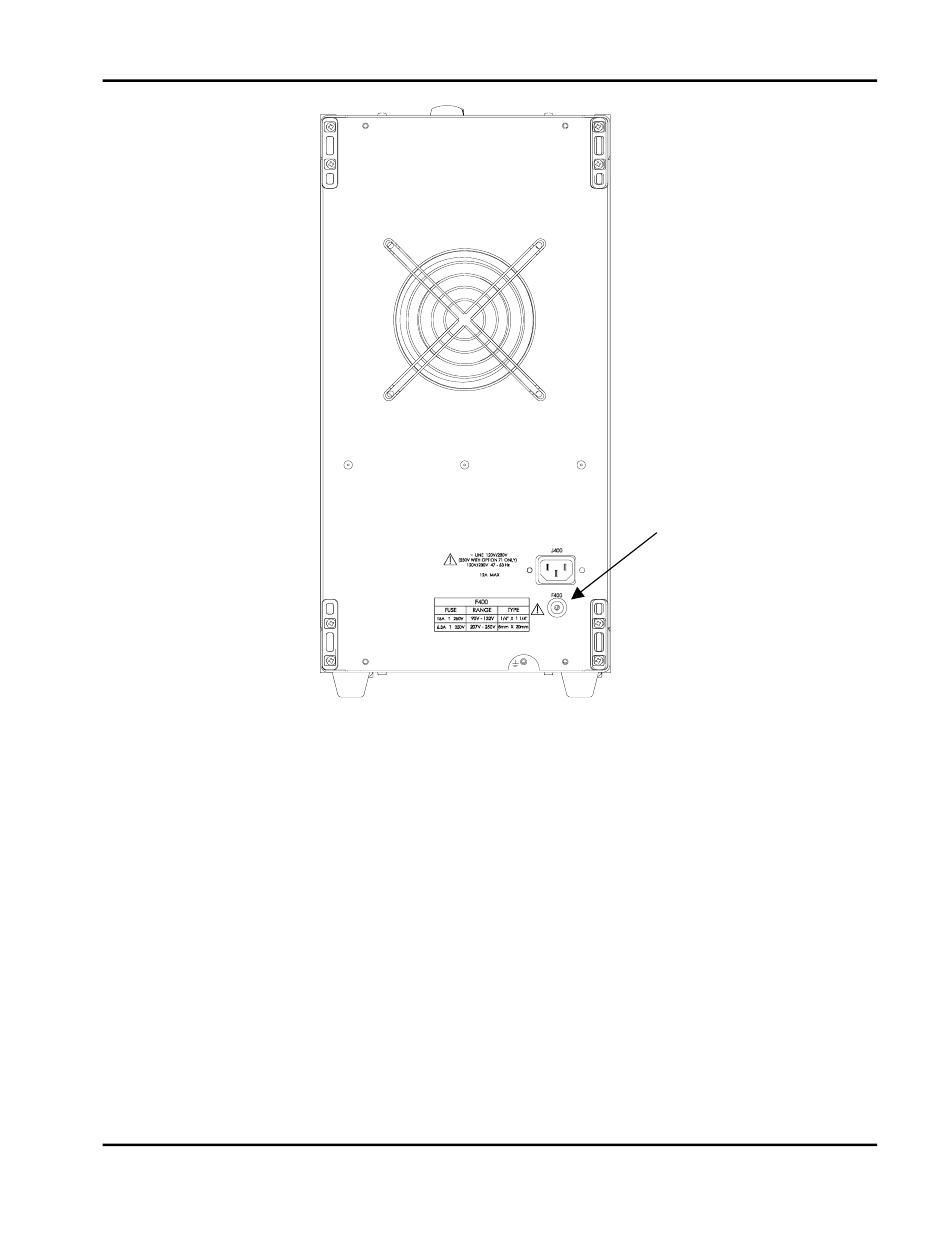

Figure 5-5, Removing and Replacing The AC Mains Fuse
EADS North America Defense
Test and Services, Inc. © 1998
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
1. Ensure AC mains input (J400) is disconnected.
2. Insert flat blade screwdriver into fuse carrier slot at F400 in
power supply rear panel and rotate counter clockwise to
remove.
3. To replace fuse, insert the fuse carrier and fuse assembly
into the fuse housing opening for F400 on power supply.
4. Insert flat blade screwdriver into fuse carrier and rotate
clockwise to lock fuse assembly in place.
AC Mains
Fusholder
Maintenance 5-9
