The System Monitor features include a window comparator on
each VXIbus voltage, fan failure indicator, and a power supply
intake air temperature monitor. Each monitor includes a front panel
LED annunciator.

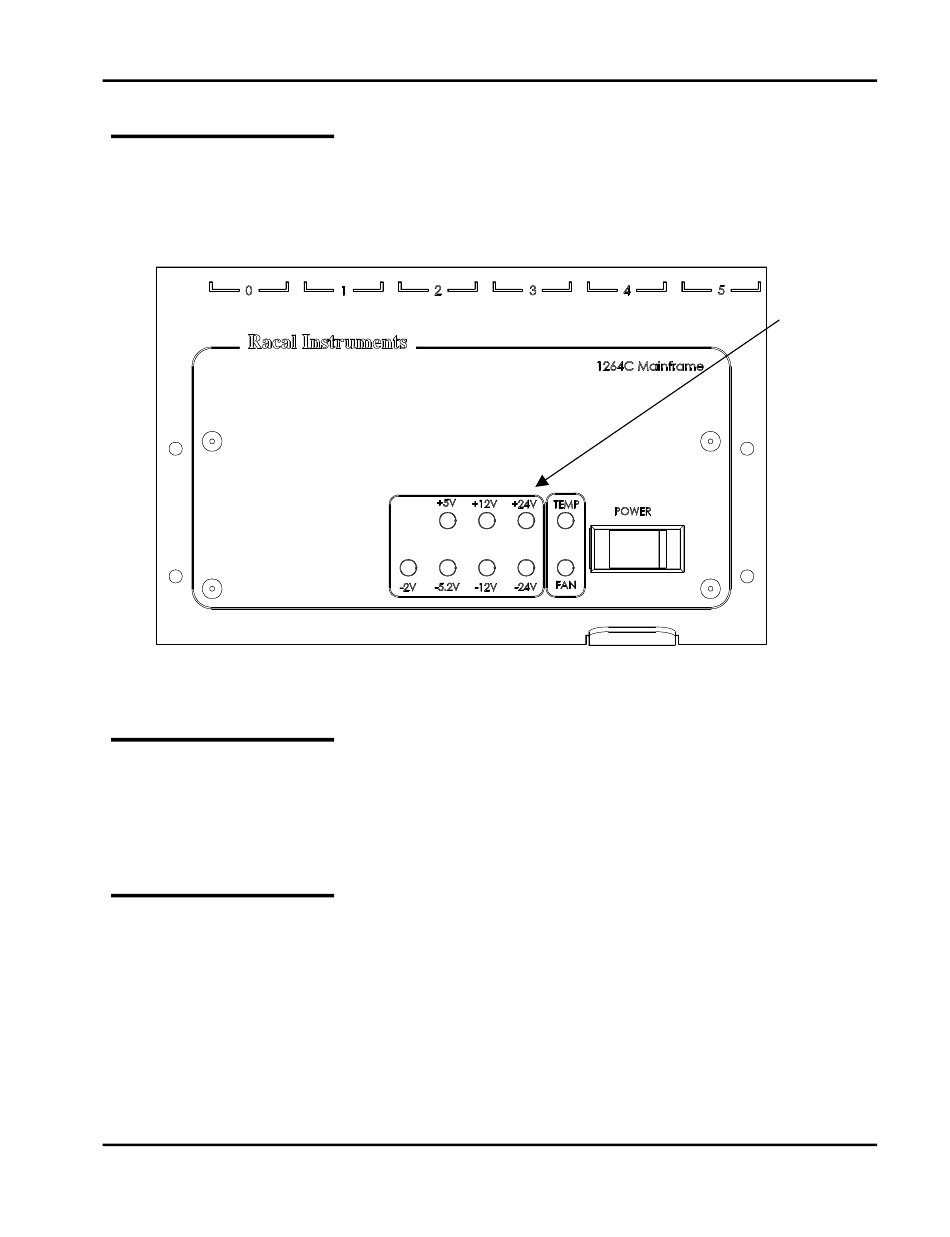

Figure 1-6, 1264C System Monitor
The 1264C is available with two rack mount options.
Option 01 includes rack mount ears, and slides.
Options 04 consist of rack mount ears only.
The 1264C backplane can accommodate up to six C-size VXI
modules.
The 1264C has a jumperless auto-configurable backplane using
active-automatic daisy chaining for the VME Interrupt acknowledge
and bus grant daisy chain signal lines. This eliminates the need to
manually configure the backplane.
Distribution of the CLK10 reference clock is full differential
providing a low skew timing source.
System
Monitor
Getting Started 1-7
