1264C User Manual
Removal and
Replacement of
The Fan
Assembly
Remove Screws
6 Places
S400
Voltage Selection
Switch
EADS North America Defense
Test and Services, Inc. © 1998
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
The fan assembly may be removed and replaced as described in
the following steps. Refer to Figure 5-2.
Remove Screws 4 places
S400

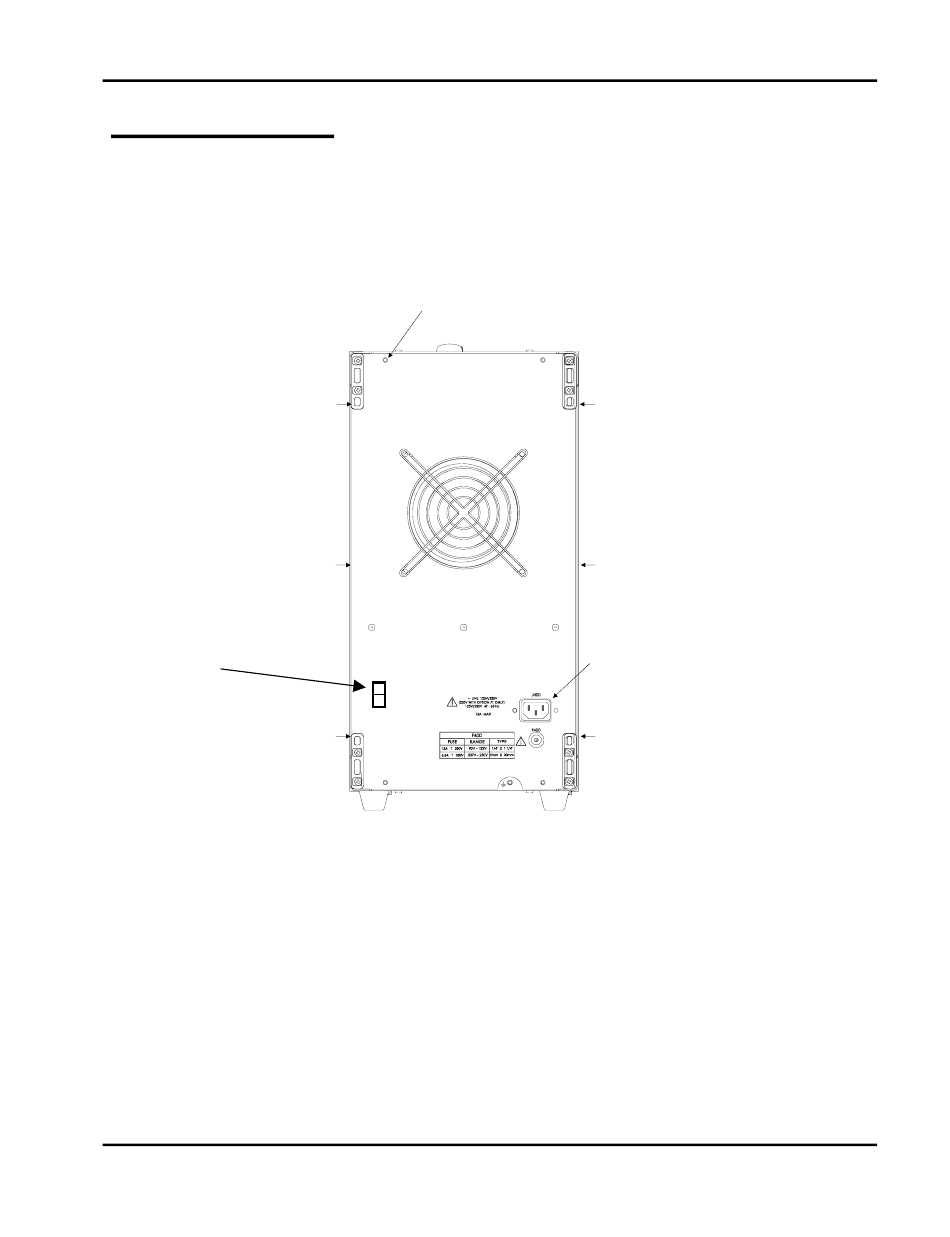

Figure 5-2, Fan Assembly/Rear Panel Removal
1. Remove the power cord. Loosen the retaining Phillips
screws located on the rear and side panels of the
mainframe. Remove the rear panel (with Fan) towards the
rear being careful not to damage the fan wiring.
2. Disconnect the in-line connector (J300/P300) by grasping
each mating half and gently pulling apart.
3. To reinstall the module fan assembly, reverse steps 1 and
2, above.
Power Cord
Connection
Maintenance 5-5
