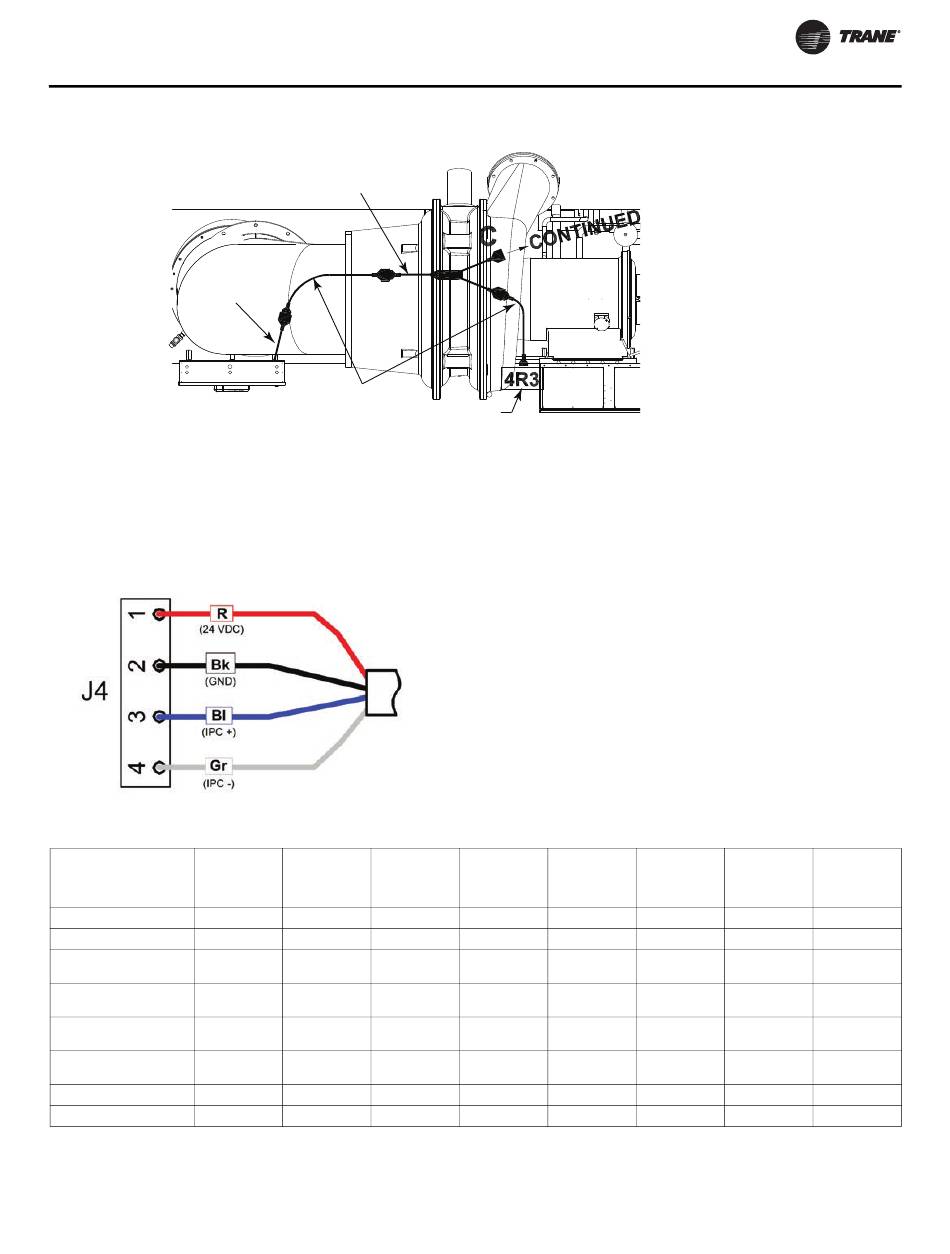

Figure 6. Sample of IPC cable routing
CAB01155
leads to female
Control Panel
To connect the IPC bus to the control panel LLIDs, thread
the bus into the control panel via a knockout or other entry.
The CAB01155 connector has a female plug on one end
and four stripped leads on the other end. Attach the four
stripped leads to the power supply in the control panel.
Figure 7. Connecting the stripped leads to the power
supply
Table 2. Cables shipped for various options
CAB01146
branch M
to 2 F
500 mm
Standard panel cables
Actuator-stepper
Oil protection—full, low
pressure or high pressure
Heat recovery/aux
condenser
Hot gas bypass—electric
actuator
Hot gas bypass—pulse
actuator
Cold water reset
Enhanced protection
(a) The letters M and F represent male and female connectors.
CDUB-SVN001B-EN
CAB01146
short, male to 2 female
CAB01149
short, male to female
Transducer LLID
CAB01147 CAB01148
(a)
branch M to branch M to
2F 3F
1000 mm 500 mm
5 5 5
1
1
1 1
1
1 1
1
1 2 1
Notes:
• R - Red wire for 24 Volts direct current
• Bk - Black wire for ground
• Bl - Blue wire for IPC+ connection
• Gr - Gray wire for IPC- connection
Make sure all devices and LLIDs are connected together in
some way. Use the correct cables so that you don't have
any open plugs when finished. Avoid placing wire ties
directly over plug connectors. This may press on the lock
mechanism and over time the plugs may release.
CAB01149 CAB01150
extension M extension M extension M
to F to F
1000 mm 2000 mm
10 9
1
1
1
8
3
Getting Started
CAB01152 CAB01154 CAB01155
extension M extension F to
to leads to receptacle
1000 mm 1 M
1 2
leads
1000 mm
2
9
