5. Follow the instructions below while also referring to
Figure 62, p. 29 and Figure 63, p.
a. Click the "Equipment Utility" tab (the wrench
symbol on the right-hand side of the screen).
b. Click the "4. Configuration" tab.
c. Click the "Open File" button on the bottom of the
"4. Configuration" screen.
d. Browse to the location of the Chiller Service Report
file saved from the DynaView display at the start of

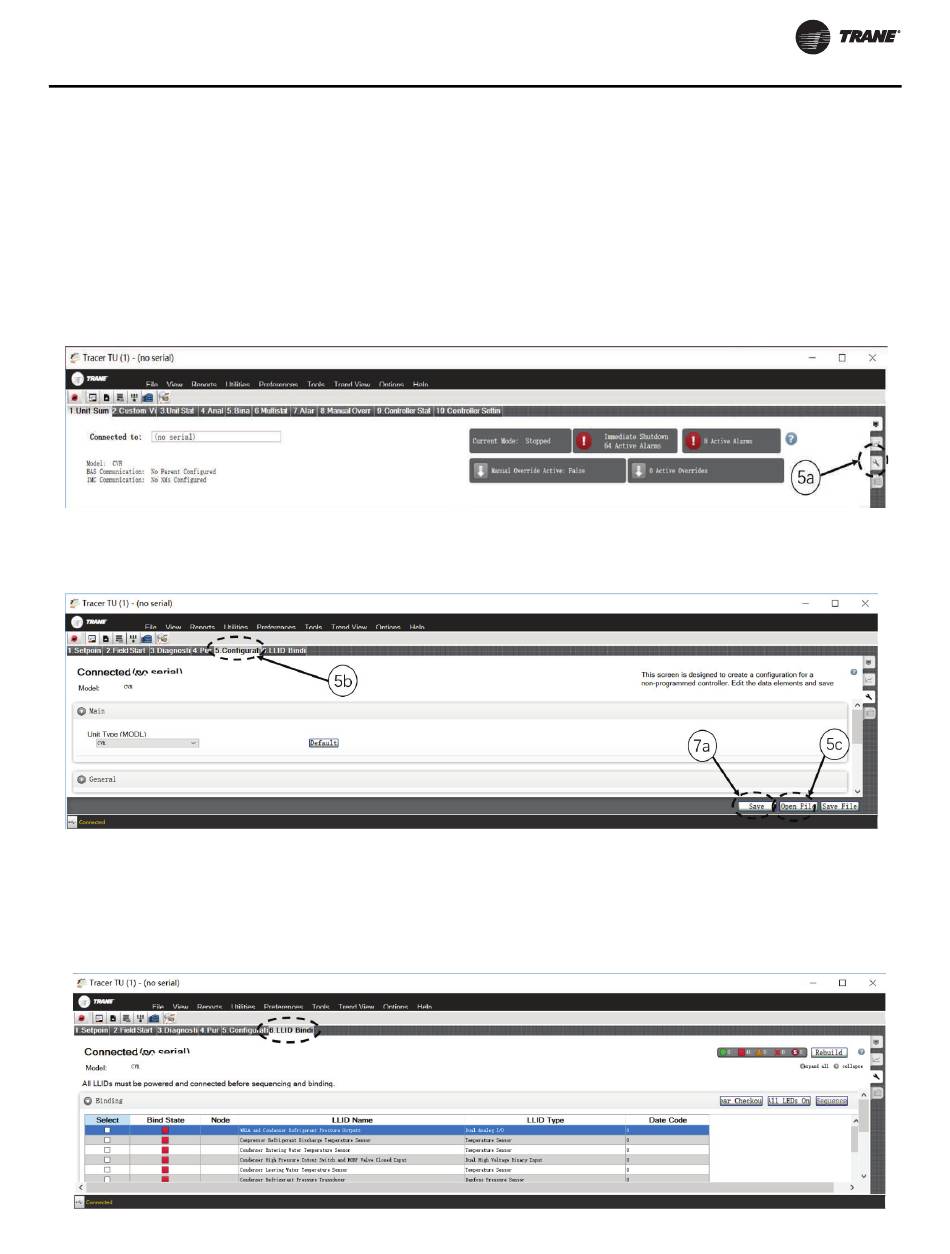

Figure 62. Navigating within the equipment utility configuration tab in Tracer TU
Figure 63. Location of the equipment utility tab in Tracer TU
8. After the configuration is saved, Tracer TU will
automatically proceed to LLID Binding view. Check to
see if any of the listed devices need to be bound,
Figure 64. Binding view of quad relay LLID
CDUB-SVN001B-EN
29:
6. After completing all of
7. Verify the configuration and then click "Save".
upgrade kit installation, highlight it, and then click
"Open".
Step
Configuration" tab screen should now be populated
with the values from the Chiller Service Report.
Clicking "Save" sends the values from this Chiller
Service Report directly to the Symbio 800 controller.
indicated by a red box. If the quad relay LLID was
installed, it will have to be bound now.
Programming
5, Tracer TU's "4.
