Installation

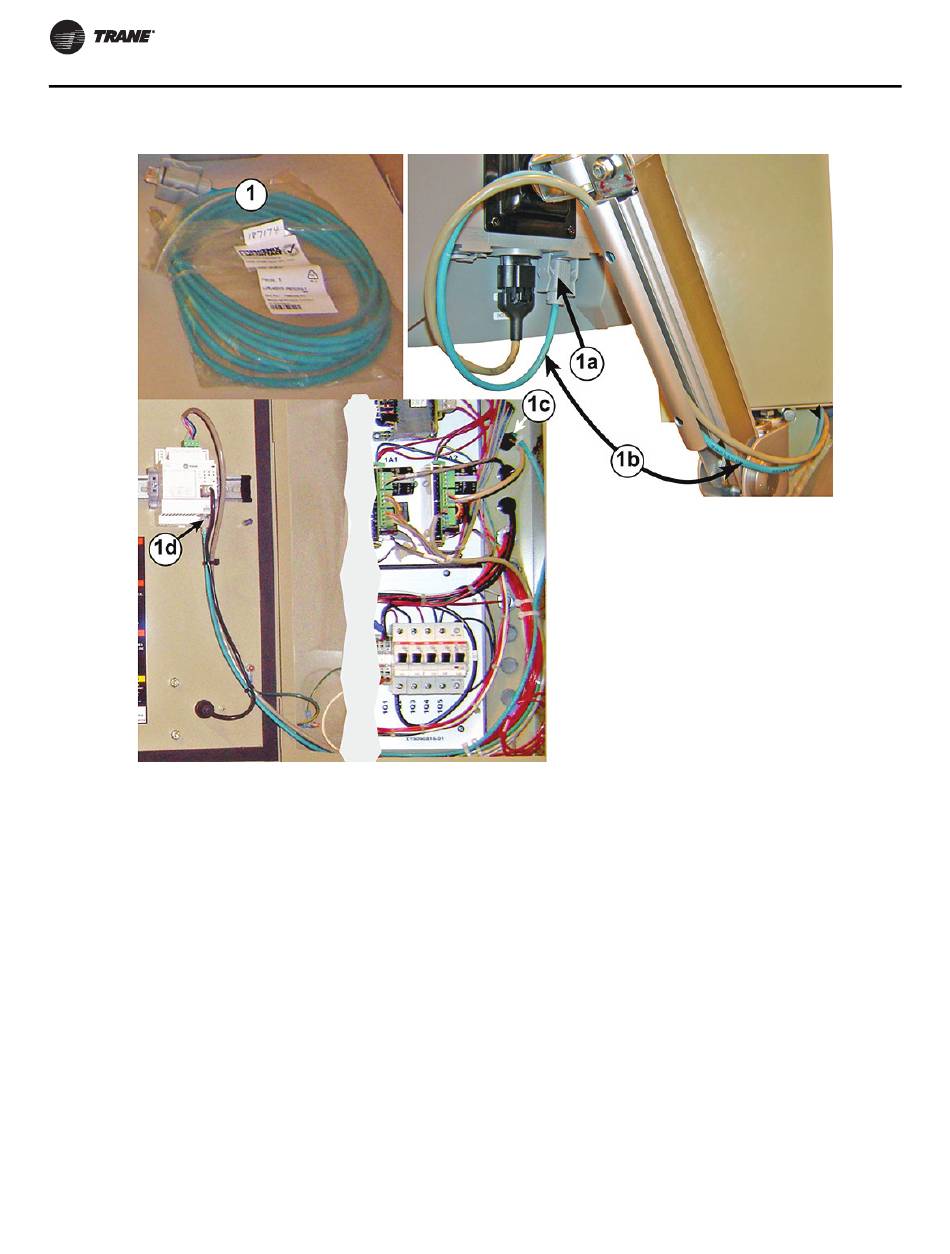

Figure 28. Ethernet cable installation between the display and Symbio 800 controller
2. Install the Female connector to stripped end wire
harness extension to the 1A2 power supply (the first
half of the power supply run to the display):
a. Route the stripped end of this wire harness through
the same cabinet knock-out used for the Ethernet
cable if possible, otherwise use one of the other
spare factory made knock-outs provided.
b. Connect each of the four individual wires to the
correct terminal of the removable J4 terminal plug
on the 1A2 power supply.
18
CDUB-SVN001B-EN
