Running The Ipc Bus - Trane Symbio 800 Control Upgrade Kit Installation Instructions Manual

Getting Started
Table 1. Basic bill of material for Symbio™ 800 control upgrade kit (continued)
Description
Bracket; AdaptiView display Mt.
Hex HD screw; 7/16-20*1
Lockwasher, Helical spring; 7/16
Normar size flatwasher; 7/16
Nut Hex; 7/16-20
Door assembly
(a) All part number information in this table is subject to change at any time.

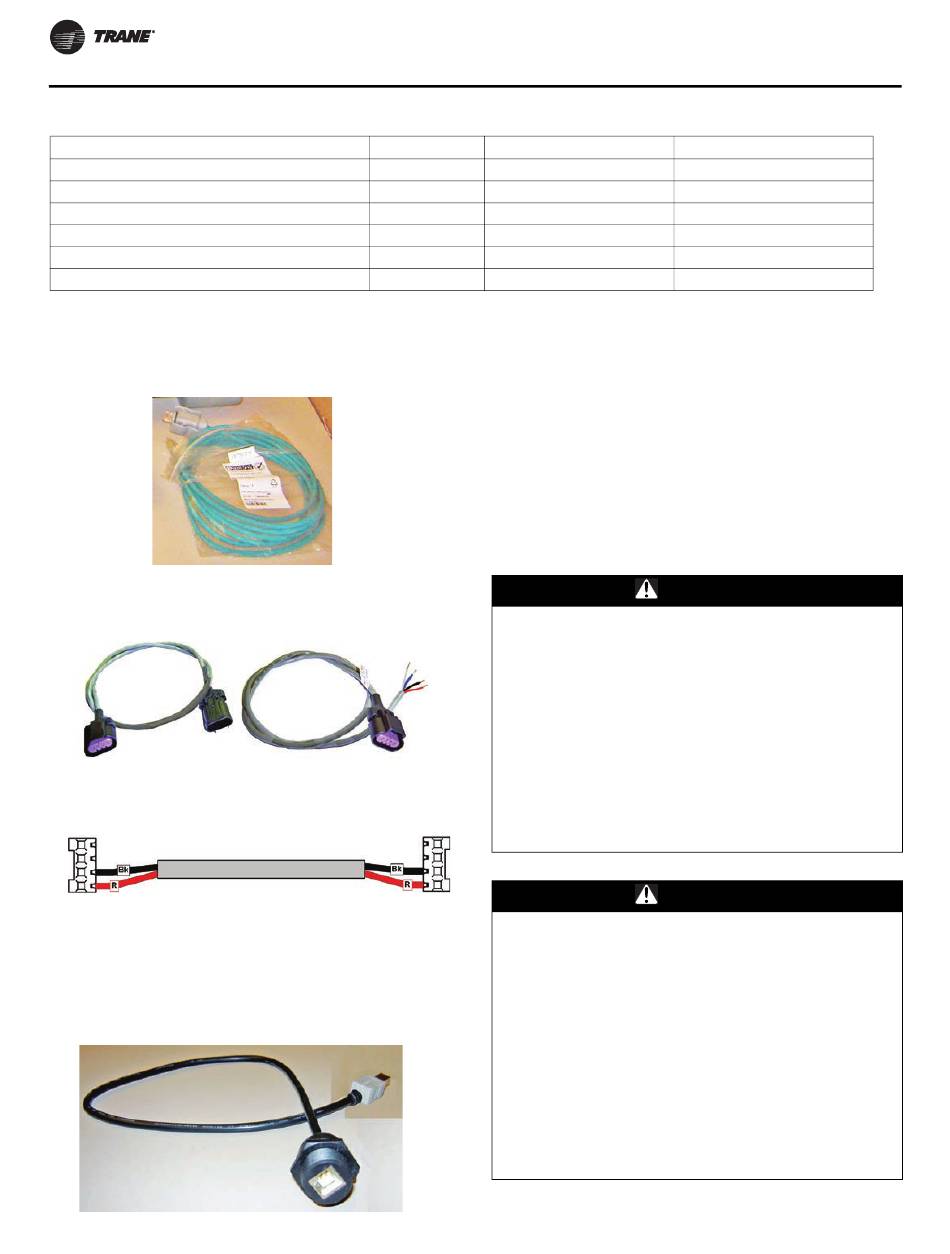

Figure 2. Ethernet cable for Symbio 800 controller to
display connection
Figure 3. Wire harness extensions: M to F connectors
and F connector to stripped
Figure 4. Two-conductor power supply
communication cable
Notes:
• Bk Black wire
• R Red wire
Figure 5. USB Type B service port cable
8
Qty. Part Number
1 X05010050010
3 42250080710
3 X22020026060
3 X22050232150
3 X28020003110
1 506898140100

Running the IPC Bus

There are several ways to string the IPC communication
bus on the chiller. The Symbio™ 800 AdaptiView display
upgrade kit includes a general wire kit that has several
different types of wires. An example of a wiring layout can
be seen in the below figure. Each application will vary
depending on the options. You may have extra cables, or
may be short needed cables. Extra cables can be ordered
through your local Trane Parts Center. Use the latest
version of PART-SVB16*-EN (Tracer CH530/CH531
Pluggable Connector System) for identification of
individual cables.
Hazardous Voltage w/Capacitors!
Failure to disconnect power and discharge capacitors
before servicing could result in death or serious injury.
Disconnect all electric power, including remote
disconnects and discharge all motor start/run
capacitors before servicing. Follow proper lockout/
tagout procedures to ensure the power cannot be
inadvertently energized. For variable frequency drives
or other energy storing components provided by Trane
or others, refer to the appropriate manufacturer's
literature for allowable waiting periods for discharge of
capacitors. Verify with a CAT III or IV voltmeter rated
per NFPA 70E that all capacitors have discharged.
PPE for Electric Contact and Arc/Flash
Required!
Failure to disconnect power and discharge capacitors
before servicing could result in death or serious injury.
Disconnect all electric power, including remote
disconnects and discharge all motor start/run
capacitors before servicing. Follow proper lockout/
tagout procedures to ensure the power cannot be
inadvertently energized. For variable frequency drives
or other energy storing components provided by Trane
or others, refer to the appropriate manufacturer's
literature for allowable waiting periods for discharge of
capacitors. Verify with a CAT III or IV voltmeter rated
per NFPA 70E that all capacitors have discharged.
(a)
Mnemonic Part Number(a)
BRK04345
WARNING
WARNING
CDUB-SVN001B-EN
