Install Options

LON Option Installation

Symbio 800 system use a U60 LON module through the
USB connection instead of the LCI-C LLID.
1. Install the U60 LON module (MOD02977) on the DIN
rail on the door, put it at left side of Symbio 800.
2. Connect U60 LON module to Symbio800 by USB cable
which provide by module, this cable could be connect
to any one of the four USB ports under the Symbio 800
controller.
3. Connect U60 LON module to BAS by shield cable and
terminal, the terminal is provided by module also.

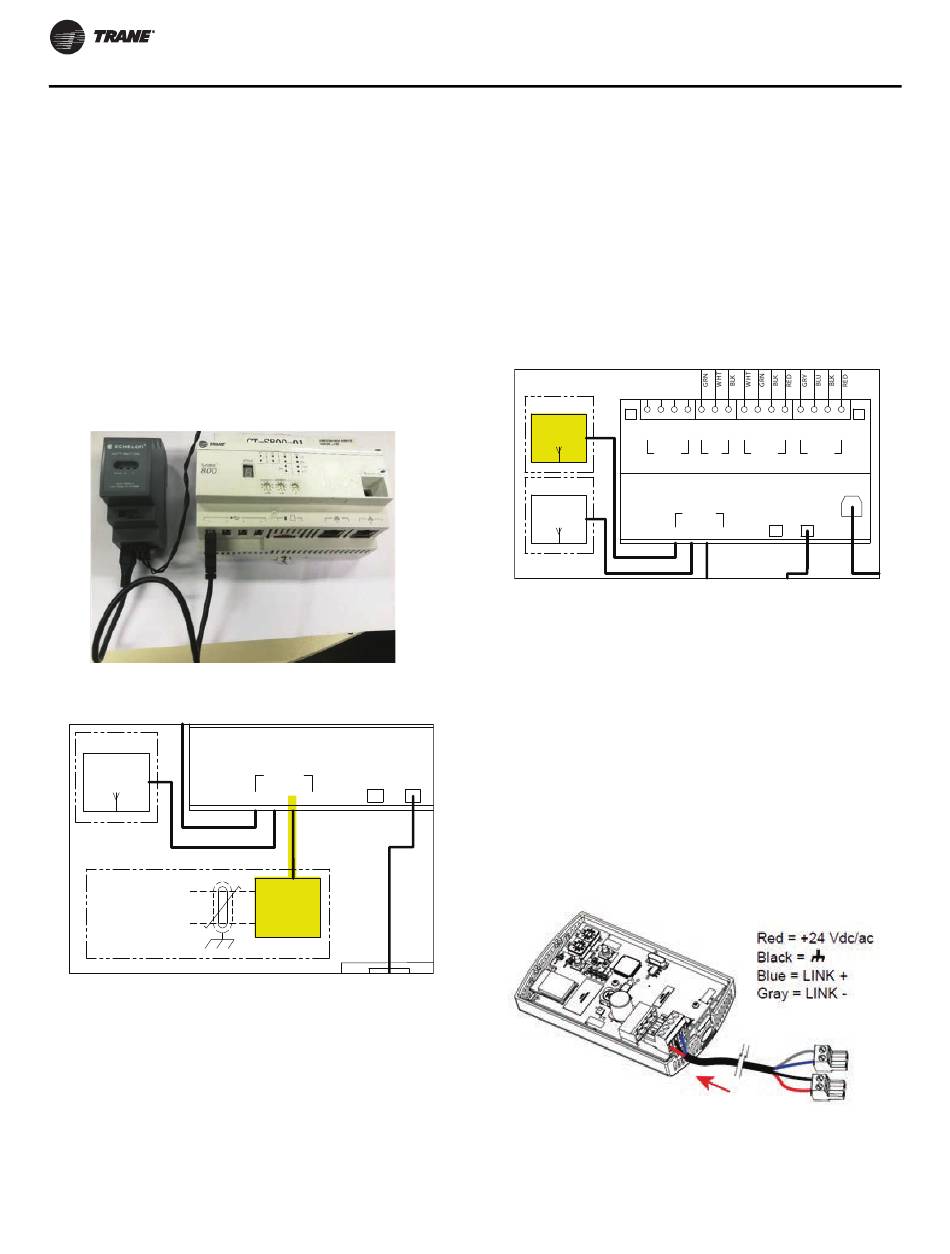

Figure 35. LON
Figure 36. LON wiring, ref. 50712792
OPTIONAL 1A22 SYMBIO 800 UNIT CONTROLLER
4Y2
LTE
MODEM
TRACER
COMMUNICATIONS
OPTIONAL

Communication Option

Symbio 800 system supports up to 3 wireless interfaces at
same time, these are:
• Wi-Fi mobile APP for BAS interface
• Air-Fi BACnet via Zigbee for component interface
• LTE 4G modem interface for remote communications
22
ETHERNET
USB
1 2
1 2 3 4
1K47
LON
INTERFACE
Wi-Fi Installation
Refer to BAS-SVN042*-EN for more information. For
mounting and wiring of Wi-Fi module (MOD03122):
1. Drill a 1.36 inch holes on the top of polycarbonate box,
securely fasten the Wi-Fi module by gasket and nut
which provided by module.
2. Connect Wi-Fi module to Symbio 800 by USB cable
which provide by module, plug USB MICRO-B side to
bottom of Wi-Fi module and USB-A side to any one of
the four USB ports under the Symbio 800 controller.
Figure 37. Wi-Fi wiring, ref. 50712792
IMC
OPTIONAL
4Y1
A - +
WI-FI
ANTENNA
P1
BACKNET
OPTIONAL 1A22 SYMBIO 800 UNIT CONTROLLER
4Y2
LTE
MODEM
Air-Fi Installation
Refer to BAS-SVX040*-EN for more information. For
mounting and wiring of Air-Fi module (0185-0424-0100):
1. Drill a 0.87 inch holes on the top of polycarbonate box,
align this hole with thread hole on the module,
securely fasten the Air-Fi module by M4 screw.
2. Connect Air-Fi module to Symbio 800 by Modbus
cable.
3. Remove the cover of module, connect 4 wires cable
into 4 hosing connector and plug in Air-Fi module,
connect other side of cable into 2 hosing connector and
plug in IMC terminal on the Symbio 800 controller.
Figure 38. Air-Fi connecting wiring harness
- + G - + - + G +24 - + G +24
VDC VDC
P2 P3 IMC
MODBUS MACHINEBUS
SERVICE
TOOL
ETHERNET
USB
1 2
1 2 3 4
CDUB-SVN001B-EN
IMC
B
USB1
