Trane Tracker Quick Reference Card

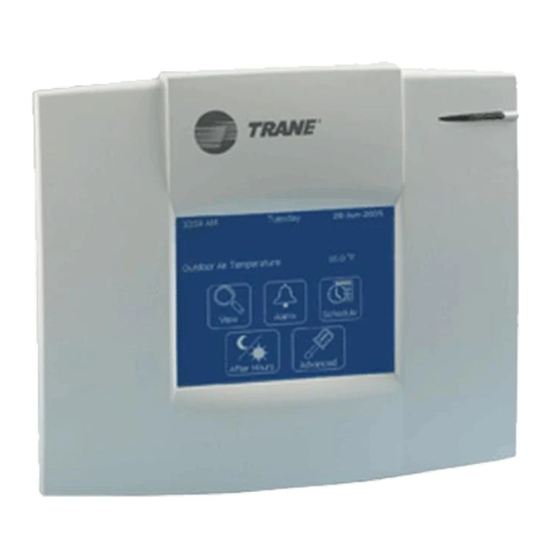

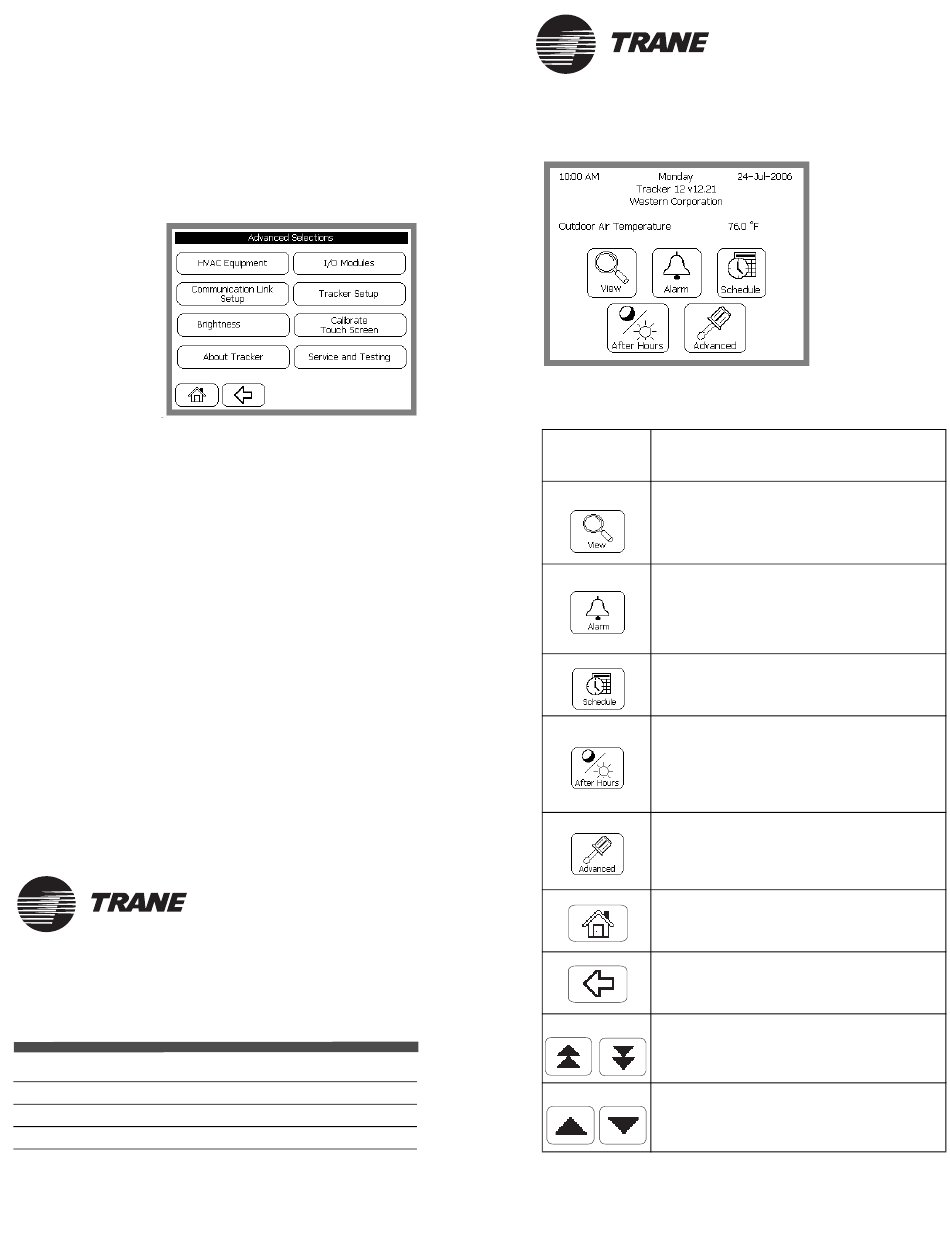

Tracker Operator Display
™
Quick Reference Card
To View or Change Advanced Settings
1. Press the Advanced button to display the Advanced
Selections screen.
Below is a brief
description of
each advanced
selection.
•
HVAC Equipment:
Detail list of all equipment and access to advance status and setup
•
Communication Link Setup:
Primarily used for installation and service
•
Brightness:
If necessary, used to change screen appearance
•
About Tracker:
View version information of Tracker model, hardware, and software
•
I/O Modules:
Detail list of all I/O modules and access to advance status and setup
•
Tracker Setup:
Primarily used for installation and service
•
Calibrate Touch Screen:
If necessary, used to perform touch screen alignment
•
Service and Testing:
Primarily used for advanced services and testing of Tracker subsystems
CAUTION
Clean the Touch Screen
To clean the touch screen, wipe it off with a non-abrasive
cloth. For more aggressive cleaning, use a non-abrasive
cloth with a mild ammonia-free glass cleaning solution.
