Installation
The single box is 7-inch Long x 5-inch Wide x 5-inch Tall.

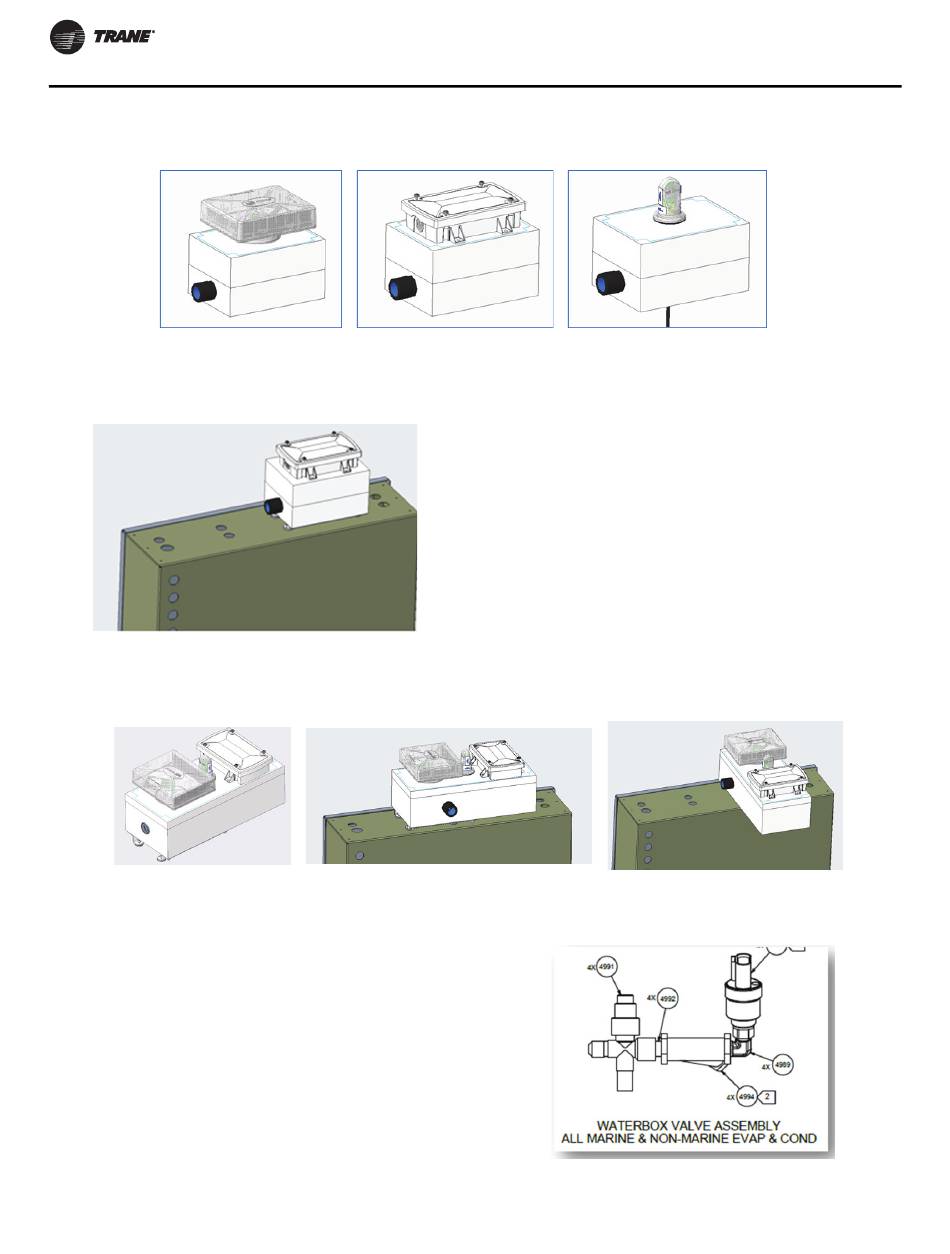

Figure 43. Single box (LTE, Air-Fi and Wi-Fi)
LTE Air-Fi WiFi
Figure 44. Box mounting
The triple box is 15.5-inch Long x 6-inch Wide x 4-inch Tall.
Figure 45. Triple box

Water Flow Measurement Options

Figure 46. Standard accuracy package
Standard Accuracy Option
Water flow is determined by measuring pressure drop
across heat exchanger using water pressure transducer
LLID's. Standard flow measurement transducers can be
ordered for condenser, evaporator and auxiliary/heat
recovery heat exchangers. The standard accuracy part is
(0185-3475-0100), there are two transducer (0185-3475-
0100) provided per heat exchanger. Field connect by male
to 2 female 1000mm branch cable (CAB01147) which
provided in package.
