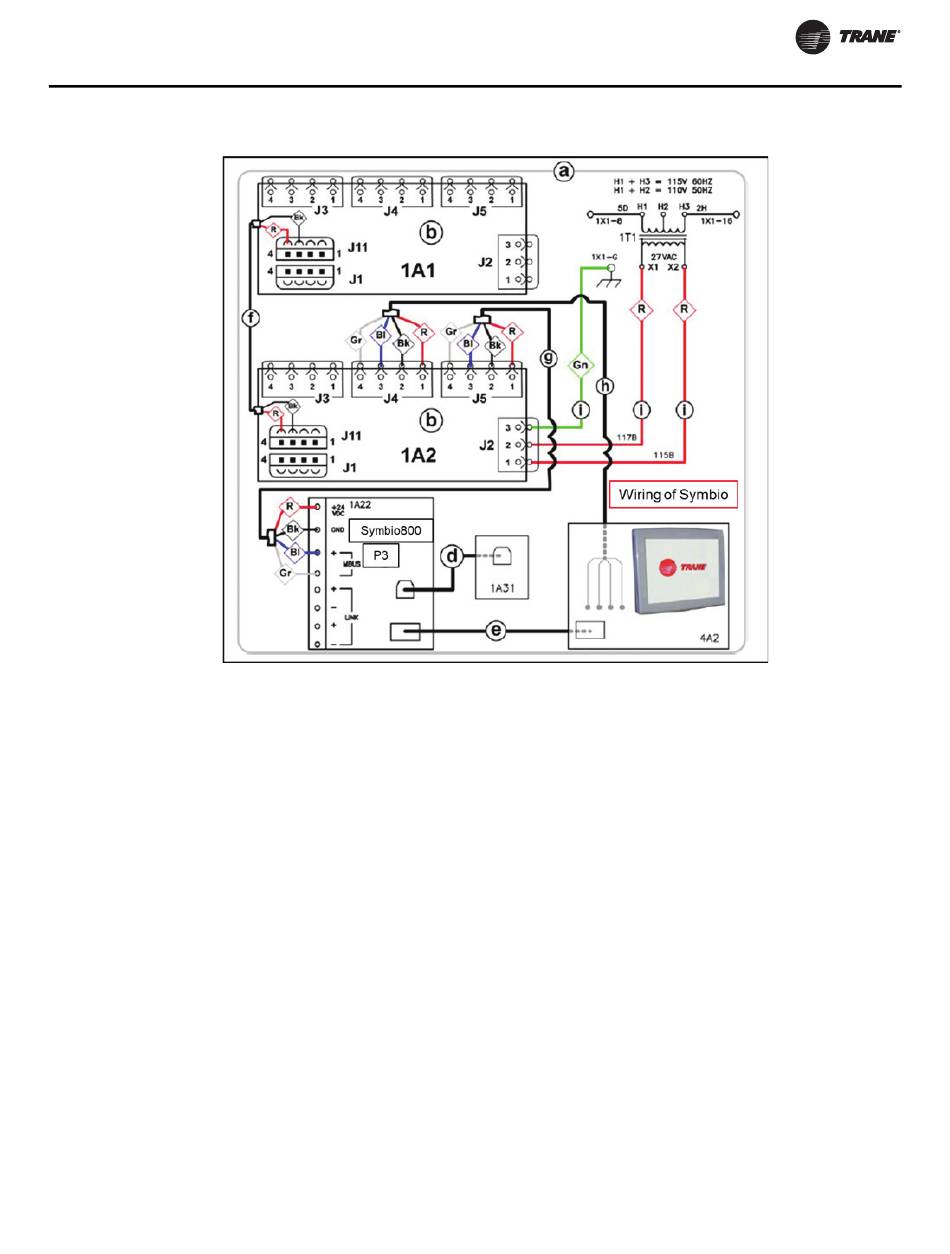

Figure 69. Full schematic wiring diagram for a standard Symbio 800 upgrade kit
Notes:
•
a - All notes and hazard notifications listed in
Diagrams," p. 32
of this manual apply to this drawing
•
b - Power Supply
•
c - Symbio 800 controller
•
d - USB Type B service port cable from Symbio 800
controller receptacle to control panel door
•
e - Ethernet cable connection between Symbio 800
Ethernet port and Symbio 800 display
•
f - 2-conductor communication cable (It could also be
connected between J1 terminals)
•
g - 4-conductor cable
•
h - Female to bare end wire harness to Male to Female
wire harness extension to display
•
i - Field provided 16 AWG control wire
•
Bl - Blue wire
•
Bk - Black wire
•
Gn - Green wire
•
Gr - Gray wire
CDUB-SVN001B-EN
"Wiring
Wiring Diagrams
35
