Programming
9. Once all LLIDs are bound, verify that the settings in the
Service Setpoints, Field Startup, and Purge tabs are
correct.
10. In Tracer TU, save a copy of the "Chiller Service
Report".

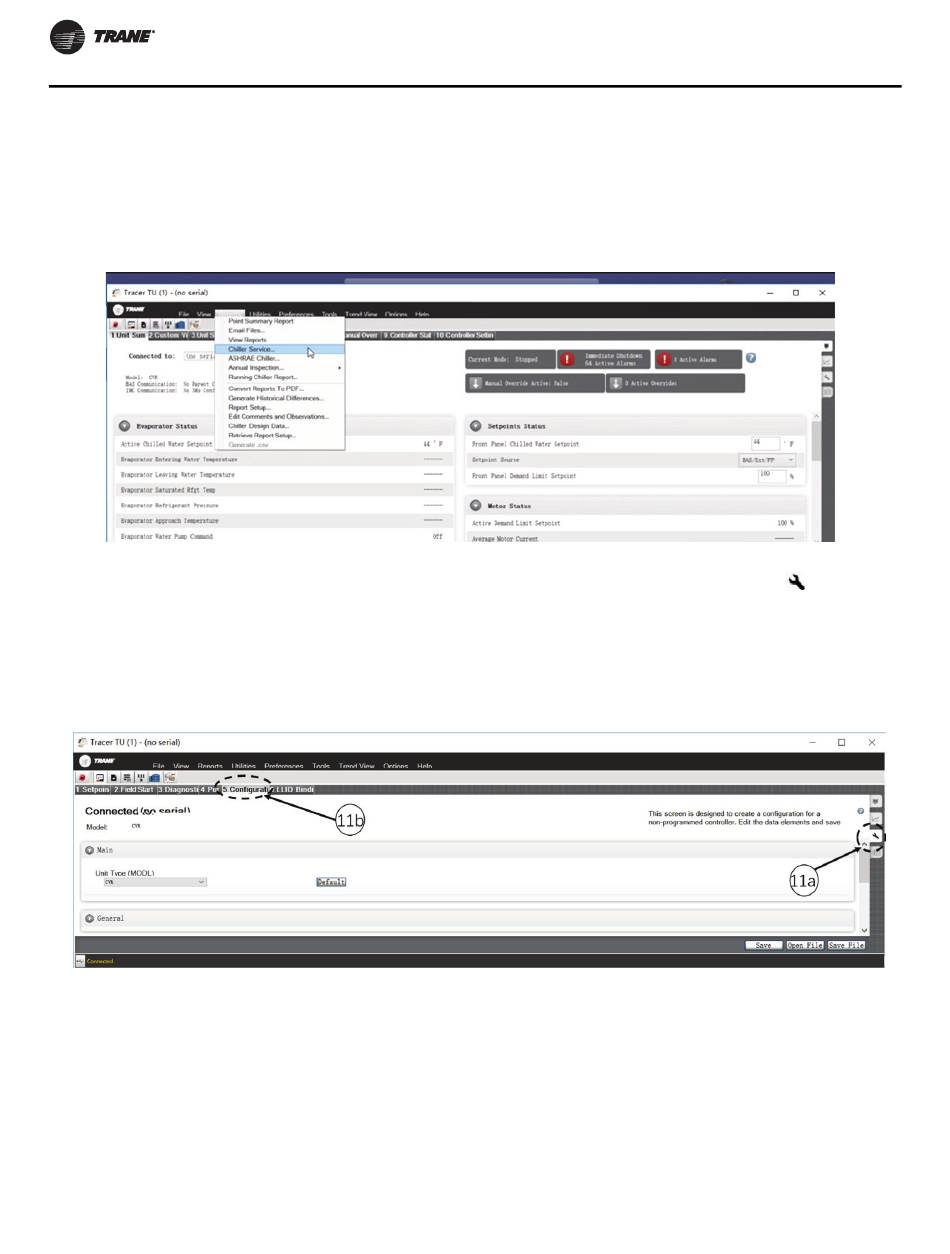

Figure 65. Chiller service report (Tracer TU)
11. Save the current chiller configuration in the existing
firmware version in the Symbio 800.
Note: This step produces backup configuration data
in the case the Symbio 800 configuration
becomes corrupt.
Figure 66. Chiller configuration (Tracer TU, simplex chiller shown)
d. In the "Browse for Folder" window, click "Make
New Folder".
A folder will be created with the name "New
Folder"; this can be renamed later. The path to the
folder will be:
C:\Programs\Trane\Tracer
TU\Program\Plugins\UCDataBaseDAL\New Folder
e. Select the "New Folder" file.
f. Click the "OK" button.
30
a. From the "Reports" drop-down menu, select and
open "Chiller Service Report" (see the below
figure).
b. Save a copy of "Chiller Service Report" as a
®
Microsoft Word document in the folder that was
created in "My Documents".
a. Access the "Equipment Utilities" section of Tracer
TU by clicking the wrench symbol
hand side of the screen.
b. Click the "Configuration" tab (see the below figure).
c. At the bottom of the screen, click the "Save File"
button (not shown in below figure).
The chiller configuration file will now be saved in the
"New Folder".
on the right-
