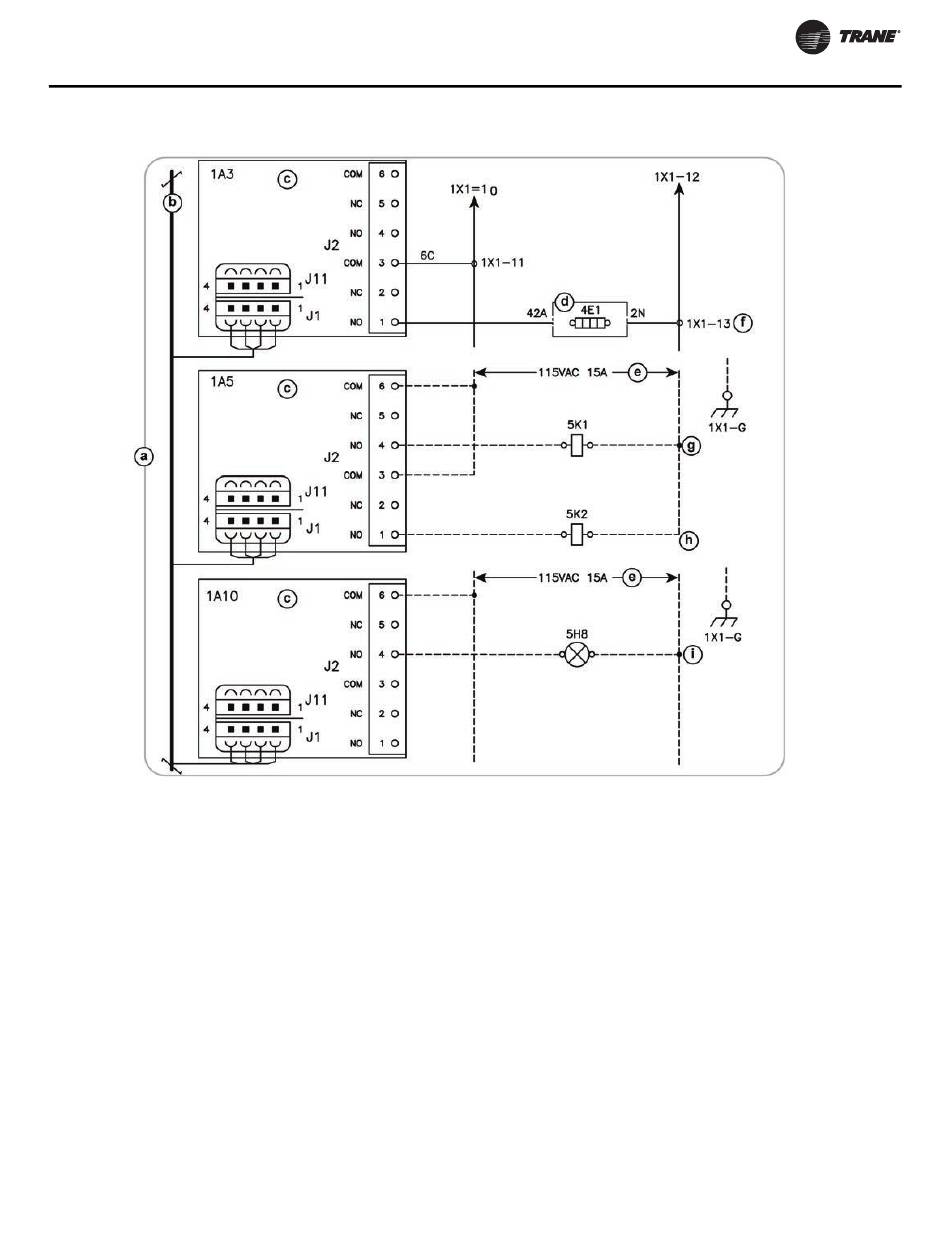

Figure 67. Existing LLIDs to remove before installing quad relay LLID
Notes:
•
a - All notes and hazard notifications listed in
Diagrams," p. 32
of this manual apply to this drawing
•
b - IPC BUS
•
c - Dual relay LLID to remove (its functions will be
replaced by the Quad Relay)
•
d - Oil tank junction box
•
e - Customer provided
•
f - Oil tank heater
•
g - Evaporator water pump (optional)
•
h - Condenser water pump (required)
•
i - Ice building indicator (optional)
CDUB-SVN001B-EN
"Wiring
Wiring Diagrams
33
