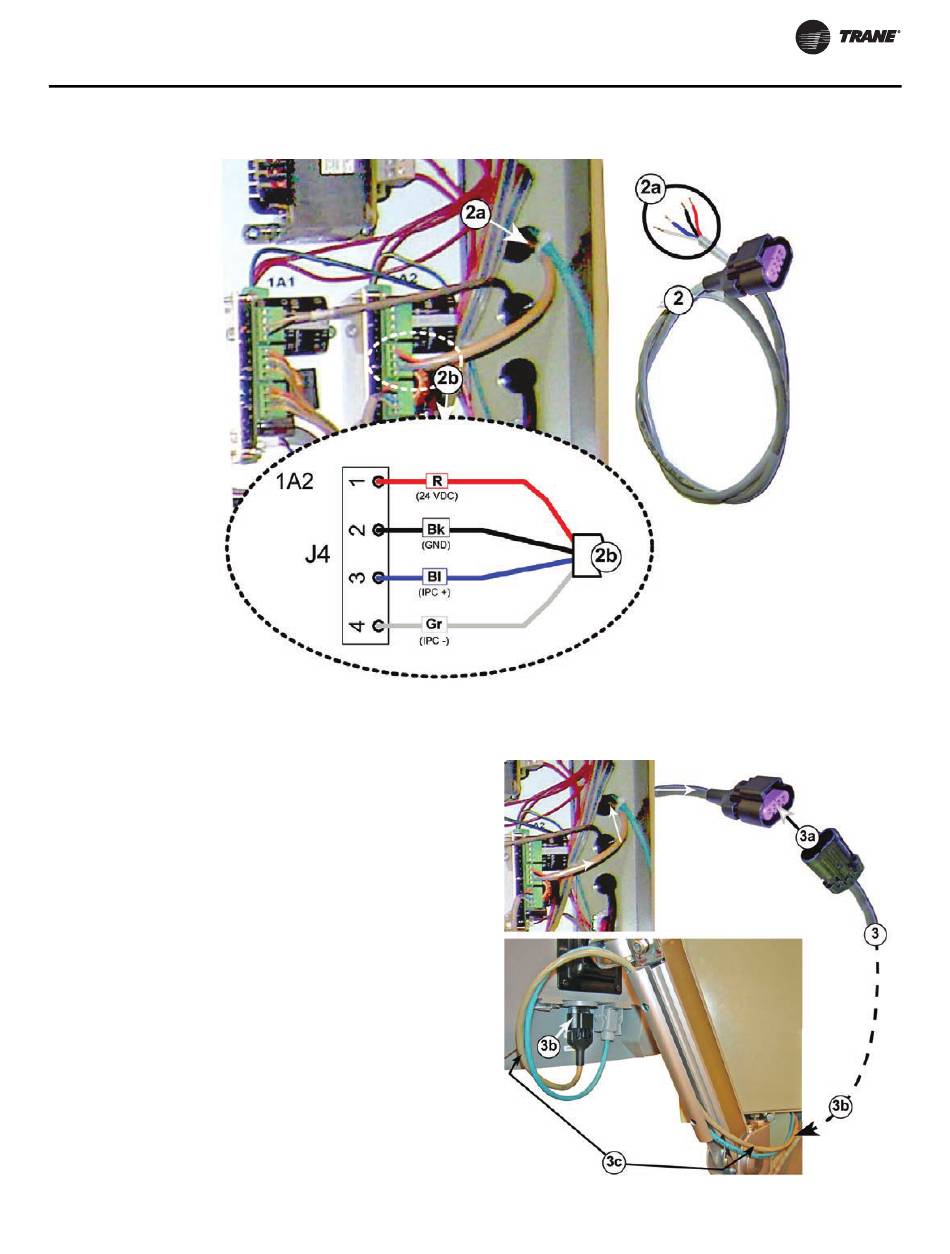

Figure 29. Female to bare end wire harness install from outside cabinet in to 1A2
Notes:
•
R. Red wire for 24 Volts direct current
•
Bk. Black wire for ground
•
Bl. Blue wire for IPC+ connection (not actually used by
Tracer AdaptiView but connect anyway)
•
Gr. Gray wire for IPC- connection (not actually used by
Tracer AdaptiView but connect anyway)
3. Complete the power supply connection to the display
using the Male to Female wire harness extension:
a. Connect the Male end of this cable to the Female
connector on the cable installed in
b. Route the cable harness through the wire channel
on the display arm and connect the Female end to
the Male receptacle on the display unit.
Important:
Leave enough slack in the cable to allow for
the display arm to be moved through its full
range of motion without placing a strain on
the cable or the terminal connections.
CDUB-SVN001B-EN
Figure 30. Completion of power supply connection to
Step
2.
the display
Installation
19
