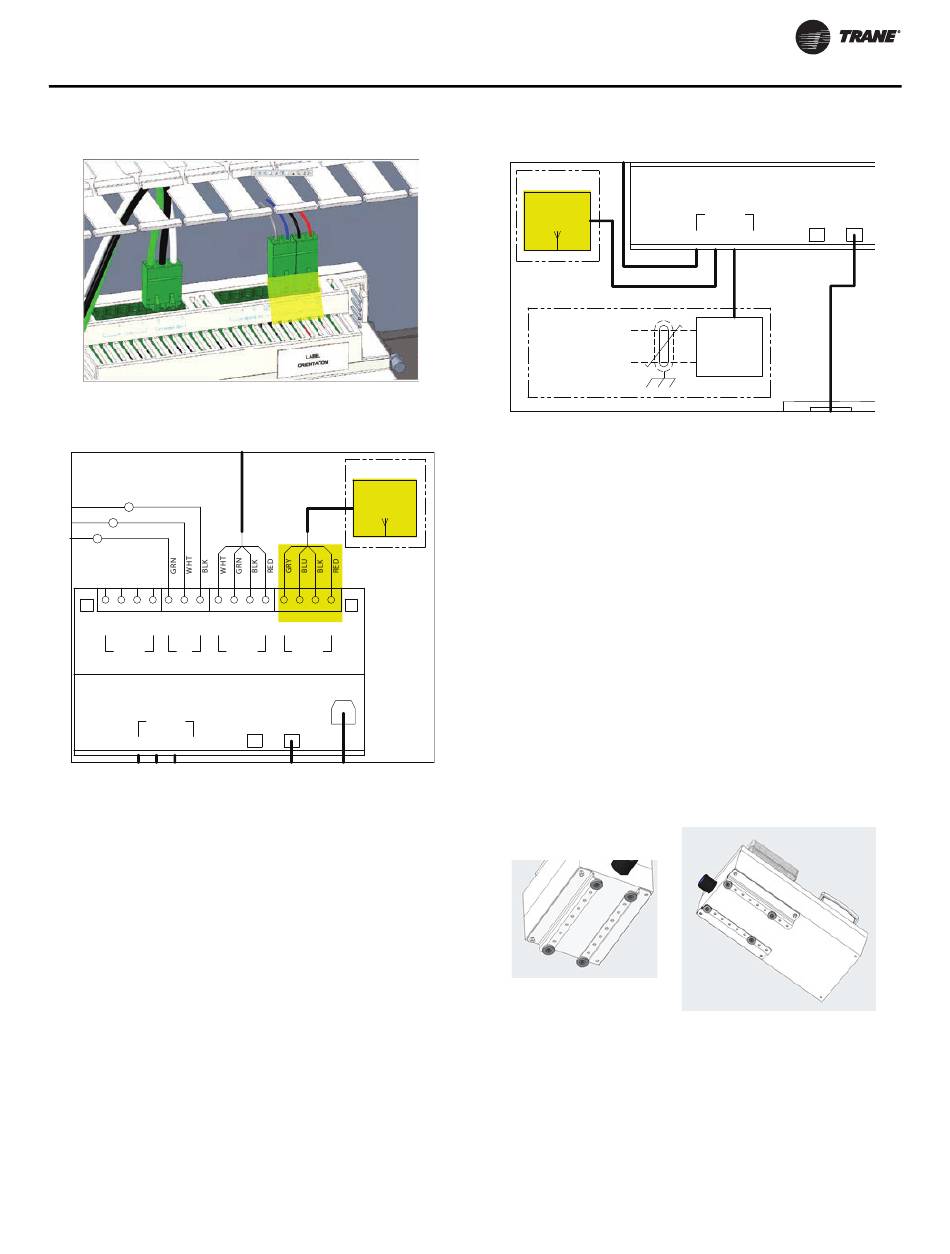

Figure 39. Air-Fi terminal
Figure 40. Air-Fi wiring, ref. 50712792
RED
1X3-1
BLK
1X3-2
BLU
1X3-3
IMC
A - + - + G - + -
P1 P2
BACKNET MODBUS MACHINEBUS
1A22 SYMBIO 800 UNIT CONTROLLER
USB
1 2 3 4
LTE Modem Installation
Modem part is MOD03184, MODULE; CELLULABLE USB
2.9 METER CABLE. Refer to provided literature for setup
and operation details.
1. Drill a 1.36 inch holes on the top of polycarbonate box,
securely fasten the LTE modem by gasket and nut
which provided by modem.
2. Connect LTE modem to Symbio800 by USB cable
which provide by module, plug USB MICRO-B side to
bottom of LTE modem and USB-A side to any one of
the four USB ports under the Symbio800 controller.
CDUB-SVN001B-EN
OPTIONAL
4K48
AIR-FI
INTERFACE
IMC
+ G +24 - + G +24 B
VDC VDC
P3 IMC
SERVICE
TOOL
ETHERNET
1 2
Figure 41. LTE modem wiring
OPTIONAL 1A22 SYMBIO 800 UNIT CONTROLLER
4Y2
LTE
MODEM
TRACER
COMMUNICATIONS
OPTIONAL

Communication Device Mounting

These devices are intended to be mounted on
polycarbonate boxes. There are two installation
approaches:
• Each device is mounted independently on a small box
(0185-0426-0100).
• Multiple devices are mounted on a large box (0185-
0427-0100).
All devices connect Symbio 800 by standard USB or
Modbus cable. For installation, standard application need
to field drill an 1.09-inch hole on side of box for a snap
bushing. This bush can be replaced as field straight
connector and conduit (3/4 inch size) as NEMA 4
applications.
The boxes have magnets for flexible attachment to the
Symbio panel.
Figure 42. Polycarbonate box with magnets
Installation
ETHERNET
USB
1 2
1 2 3 4
1K47
LON
INTERFACE
